Process Parameter Problems
Sputtering Power is Too High

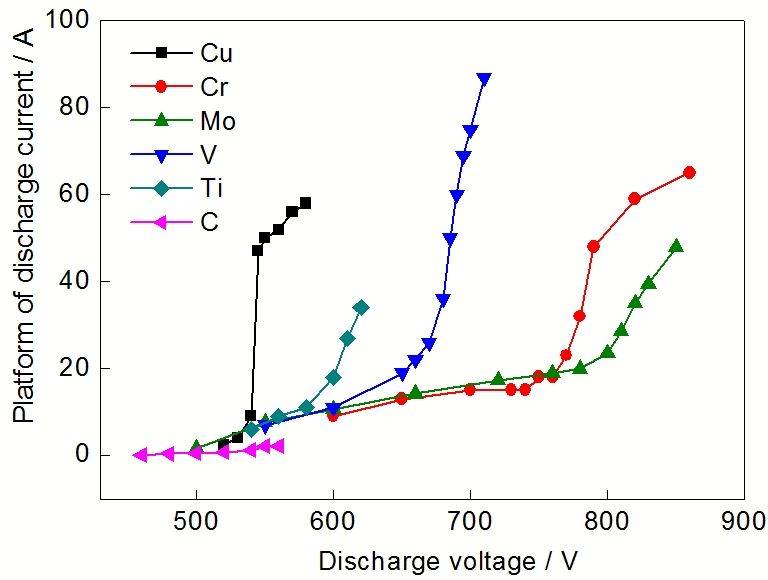

When the sputtering power exceeds the optimal range, it can lead to localized overheating on the surface of the target material. This overheating can cause the material to evaporate and deposit unevenly, resulting in the characteristic "orange-peel" texture on the surface. The high energy from excessive power settings exacerbates this issue by causing more pronounced temperature gradients across the target, further intensifying the uneven deposition.
To mitigate this problem, it is crucial to monitor and adjust the power settings of the sputtering equipment. The power should be set within the recommended range for the specific target material being used. This range is typically provided by the manufacturer and ensures that the energy applied is sufficient for effective sputtering without causing thermal damage or uneven deposition.
| Parameter | Optimal Range | Exceeding Range Impact |
|---|---|---|
| Sputtering Power | Manufacturer's specification | Localized overheating, uneven evaporation, orange-peel surface |
Regular checks of the power settings can help identify and rectify any deviations before they lead to significant surface defects. By maintaining the correct power levels, you can ensure a more uniform and high-quality deposition process, thereby avoiding the formation of undesirable surface textures.
Inappropriate Sputtering Air Pressure
When the sputtering air pressure is set too low, the average free path of particles increases, leading to higher particle energy. This elevated energy results in a significant impact force upon striking the target surface, causing alterations in the target's surface morphology. Conversely, excessive air pressure can lead to premature collisions among sputtered particles before they reach the substrate. These collisions diminish both the energy and directional precision of the particles, potentially resulting in uneven deposition patterns on the target surface.
To mitigate these issues, it is crucial to calibrate the sputtering air pressure according to the specific properties of the target material and the requirements of the sputtering process. This adjustment ensures that the particles maintain optimal energy levels and trajectory, facilitating a uniform and controlled deposition process.
Target Quality Issues
Insufficient Target Purity

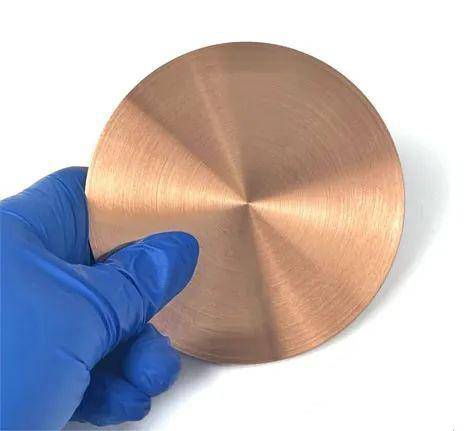

The presence of impurities in the target material can significantly impact the sputtering performance and the overall surface quality of the target. During the sputtering process, these impurities can be sputtered out preferentially, leading to localized variations in the target's surface composition. Additionally, impurities may react with the target material, causing unevenness and potentially contributing to the formation of an orange-peeled surface.
To assess whether impurities are a problem, it is crucial to verify the purity of the target material. This can be done by reviewing the purity certificate provided by the manufacturer or by conducting a detailed composition analysis of the target. Such analyses can reveal the presence of unwanted elements or compounds that could adversely affect the sputtering process.
| Impurity Impact | Sputtering Process Effect | Surface Quality Outcome |
|---|---|---|
| Preferential Sputtering | Impurities may be ejected more easily, leading to uneven distribution. | Localized surface variations. |
| Chemical Reactions | Impurities can react with target material, altering its composition. | Formation of uneven or defective surface. |
Ensuring high target purity is essential for maintaining consistent sputtering performance and achieving a smooth, defect-free surface on the target. By addressing potential impurity issues early, manufacturers can prevent costly production delays and ensure the quality of their sputtered products.
Non-Uniform Internal Structure
When manufacturing sputtering targets, the presence of internal defects such as pores, cracks, or other structural inconsistencies can significantly impact the final surface quality. These defects, if not identified and addressed early, can become more pronounced during the sputtering process. As the target is subjected to high-energy particle bombardment, these internal flaws may gradually manifest on the surface, leading to uneven deposition and the characteristic "orange peel" effect.
To mitigate this issue, it is crucial to conduct thorough inspections of the target before it is used in the sputtering process. Techniques such as metallographic analysis, ultrasonic testing, and X-ray tomography can be employed to assess the internal structure of the target. These methods provide a detailed view of the target's internal integrity, allowing for the identification of any potential defects that could affect the sputtering outcome.
| Inspection Method | Description |
|---|---|
| Metallographic Analysis | Examines the target's microstructure to identify any internal inconsistencies. |
| Ultrasonic Testing | Uses sound waves to detect internal flaws such as cracks or delaminations. |
| X-ray Tomography | Provides a 3D image of the target's internal structure for detailed analysis. |
Ensuring a uniform internal structure not only improves the surface quality of the target but also enhances the overall efficiency and reliability of the sputtering process. By addressing these internal issues early, manufacturers can avoid costly rework and ensure that their sputtering targets meet the stringent quality standards required for high-performance applications.
Equipment Issues
Uneven Magnetic Field

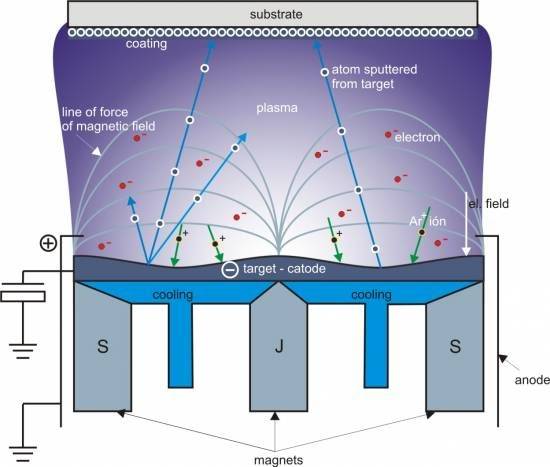

The magnetic field within sputtering equipment is a critical factor in determining the uniformity of the sputtering process. A non-uniform magnetic field can lead to an uneven distribution of sputtered particles, resulting in the formation of an undesirable orange peel texture on the target surface. This issue arises because the magnetic field's role is to confine and guide the plasma, ensuring that the particles are ejected and deposited evenly across the target.
To address this problem, it is essential to verify the alignment and strength of the magnetic field coils. Misaligned or weak coils can cause the magnetic field to be uneven, which in turn affects the trajectory of the sputtered particles. This can be mitigated by carefully adjusting the position of the magnetic field coils and monitoring the current strength. Ensuring that the magnetic field is evenly distributed across the target surface is crucial for maintaining a smooth, uniform deposition of material.
| Aspect | Impact |
|---|---|
| Magnetic Field Uniformity | Uneven distribution of sputtered particles |
| Coil Position | Misalignment can cause uneven magnetic field |
| Current Strength | Weak current can lead to non-uniform magnetic field |
By systematically checking and adjusting these parameters, one can significantly reduce the likelihood of an orange peel effect, thereby improving the overall quality and consistency of the sputtered target surface.
High Substrate Temperature
High substrate temperatures can significantly impact the quality of the film layer deposited during the sputtering process. When the substrate temperature rises excessively, several detrimental effects can occur. Firstly, the increased temperature accelerates the diffusion of sputtered particles on the substrate, leading to a higher likelihood of uneven deposition. This unevenness can manifest as an orange peel texture on the target surface, which is undesirable for many applications.
Moreover, high substrate temperatures can also affect the overall sputtering process. The thermal energy can cause the target material to behave differently, potentially altering the sputtering rate and the distribution of sputtered particles. This can result in a non-uniform film layer, further contributing to the orange peel effect.
To mitigate these issues, it is crucial to monitor and control the substrate temperature during the sputtering process. This can be achieved through various methods, such as optimizing the cooling circulator or adjusting the process parameters to maintain an appropriate temperature range. By doing so, the quality of the deposited film can be improved, and the formation of orange peel on the target surface can be minimized.
