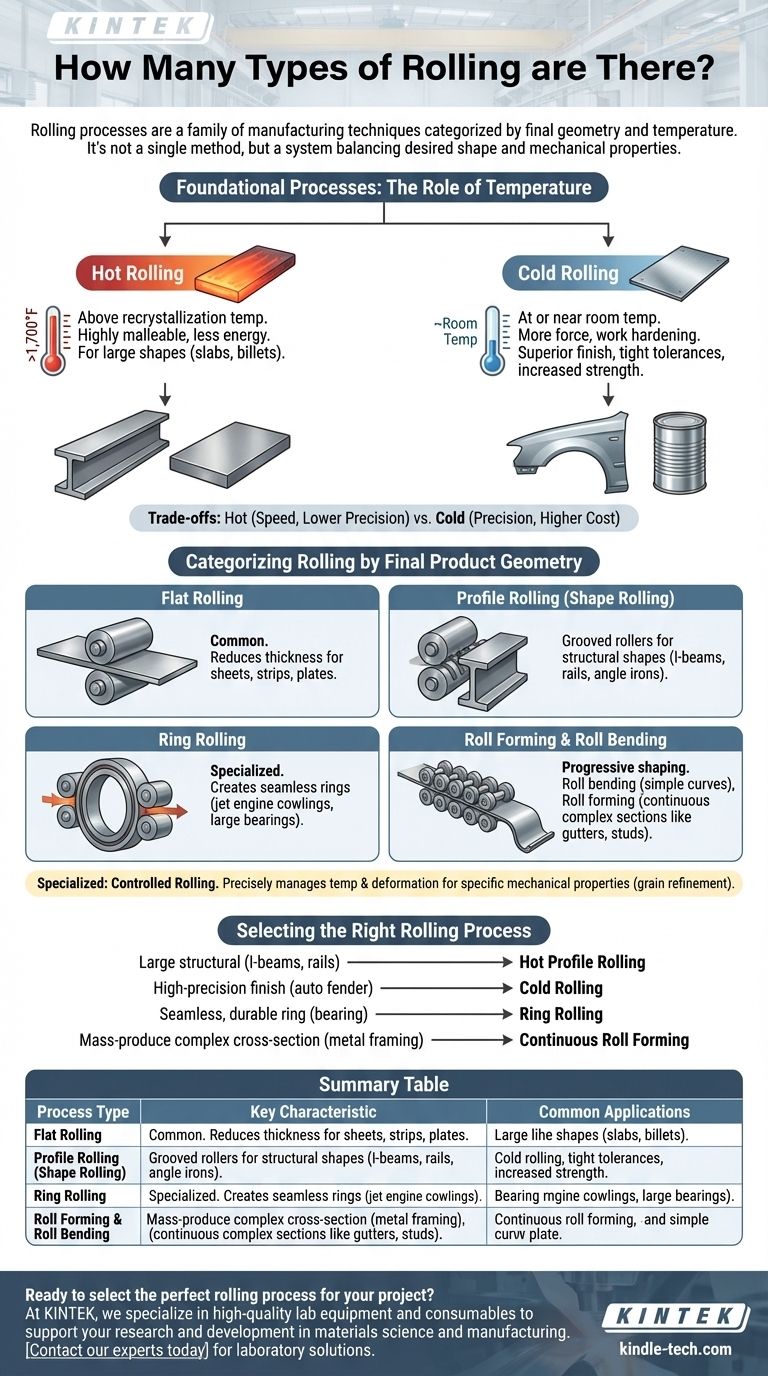

Rolling is a versatile metalworking process used to shape metal into desired forms by passing it through rollers. The types of rolling processes vary based on the desired outcome, material, and application. From the reference provided, five primary types of rolling processes are identified: ring rolling, roll bending, roll forming, profile rolling, and controlled rolling. Each type serves distinct purposes, ranging from creating curved shapes to producing precise profiles. Below, we explore these types in detail, explaining their applications, mechanisms, and significance in manufacturing.
Key Points Explained:
-
Ring Rolling
- Definition: A process used to produce seamless rings by reducing the thickness and increasing the diameter of a preformed metal ring.
- Applications: Commonly used in aerospace, automotive, and energy industries for components like bearings, gears, and turbine rings.
- Mechanism: The ring is placed between two rollers—one driving the ring and the other applying pressure to shape it.
- Significance: Produces high-strength, seamless rings with minimal material waste.
-
Roll Bending
- Definition: A process that bends metal sheets or plates into curved shapes using a set of rollers.
- Applications: Used in construction, shipbuilding, and manufacturing of cylindrical or conical structures like tanks, pipes, and curved panels.
- Mechanism: The metal is passed through three or four rollers arranged in a pyramid or triangular configuration, which gradually bend the material.
- Significance: Enables the creation of large-radius curves with consistent thickness and minimal distortion.
-
Roll Forming
- Definition: A continuous process where a long strip of metal is passed through a series of rollers to progressively shape it into a desired cross-sectional profile.
- Applications: Widely used in the production of metal roofing, gutters, automotive parts, and structural components.
- Mechanism: Each set of rollers incrementally bends the metal until the final profile is achieved.
- Significance: Highly efficient for mass production of complex profiles with tight tolerances.
-
Profile Rolling
- Definition: A specialized rolling process used to create specific profiles or shapes on the surface of a metal workpiece.
- Applications: Commonly used for manufacturing threads, gears, and decorative patterns on metal components.
- Mechanism: The workpiece is pressed against a rotating die or roller with the desired profile, transferring the shape onto the metal.
- Significance: Provides precise and repeatable results for intricate designs and functional features.
-
Controlled Rolling
- Definition: A thermomechanical process that combines rolling with controlled cooling to enhance the mechanical properties of the metal.
- Applications: Primarily used in the production of high-strength steel plates and sheets for construction, pipelines, and heavy machinery.
- Mechanism: The metal is rolled at specific temperatures and cooled at controlled rates to refine its microstructure and improve strength, toughness, and weldability.
- Significance: Produces materials with superior mechanical properties and reduced need for additional heat treatment.
By understanding these five types of rolling processes—ring rolling, roll bending, roll forming, profile rolling, and controlled rolling—you can better appreciate their unique applications and benefits in various industries. Each process is tailored to specific manufacturing needs, ensuring efficiency, precision, and material optimization.
Summary Table:
| Type | Definition | Applications | Significance |
|---|---|---|---|
| Ring Rolling | Produces seamless rings by reducing thickness and increasing diameter. | Aerospace, automotive, energy (bearings, gears, turbine rings). | High-strength, seamless rings with minimal waste. |
| Roll Bending | Bends metal sheets into curved shapes using rollers. | Construction, shipbuilding (tanks, pipes, curved panels). | Large-radius curves with consistent thickness and minimal distortion. |
| Roll Forming | Shapes metal strips into desired profiles using a series of rollers. | Metal roofing, gutters, automotive parts, structural components. | Efficient mass production of complex profiles with tight tolerances. |
| Profile Rolling | Creates specific profiles or shapes on metal surfaces. | Threads, gears, decorative patterns. | Precise and repeatable results for intricate designs and functional features. |
| Controlled Rolling | Combines rolling with controlled cooling to enhance metal properties. | High-strength steel plates for construction, pipelines, heavy machinery. | Superior mechanical properties with reduced need for additional heat treatment. |
