High Shear Homogenizer for Pharmaceutical and Cosmetic Applications
Item Number : COA-7
Price varies based on specs and customizations
- Speed Range
- 300 - 24,000 rpm
- Processing Volume
- 300 ml - 8,000 ml
- Power
- 220 W - 1,300 W
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction

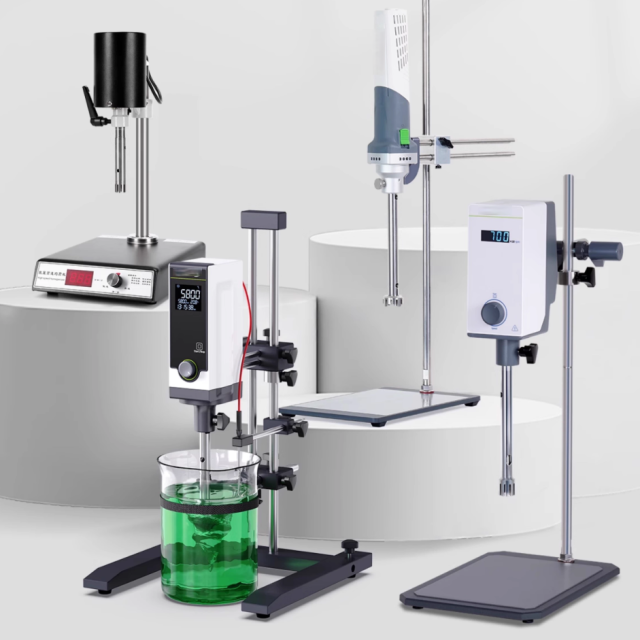

Achieve superior sample consistency and accelerate your research with our Laboratory Emulsifier Homogenizer. Engineered for high-demand applications, this device excels at homogenizing, emulsifying, and dispersing a wide range of materials. It is the ideal solution for laboratories in the pharmaceutical, biotechnology, food R&D, cosmetics, and chemical industries that require efficient, stable, and reproducible sample processing.
Key Features and Benefits
- Rapid and Efficient Processing Our homogenizer is designed for speed and effectiveness. It effortlessly processes soft tissues and creates fine, stable emulsions in a fraction of the time, significantly improving your laboratory's workflow and throughput.
- Powerful and Stable Performance Driven by a high-speed motor that reaches up to 24,000 rpm, the unit provides intense mechanical shearing force. This power, combined with its stable operation, ensures consistent particle size reduction and uniform dispersions, leading to highly reliable and repeatable experimental results.
- Versatile by Design To accommodate diverse experimental needs, our homogenizers are available with various interchangeable dispersing heads constructed from high-quality 304 or 316L stainless steel, offering excellent chemical resistance and durability for processing volumes from 300ml up to 8000ml.
- User-Friendly Operation The systems are designed for ease of use in a busy lab environment. They feature clear LED digital displays for precise speed monitoring, intuitive controls, and smooth lifting mechanisms, allowing for safe and easy adjustment of the homogenizing head within the sample vessel.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | KT200-S |
| Display | LED Digital Tube |
| Speed Range | Φ12 & Φ18 Head: 300 - 20,000 rpm |
| Max. Processing Volume (H₂O) | 300 ml |
| Lifting Mechanism | Manual |
| Lifting Stroke | 170 mm |
| Motor Type | Carbon Brush Motor |
| Power Supply | AC 220V / 50Hz |
| Power | 220 W |
| Net Weight | 7.5 kg |
| Dimensions (L×W×H) | 210 × 290 × 330 mm |
| Parameter | Specification |
|---|---|
| Model | KT-HET-25D |
| Speed Range | Φ25: 5,000 - 20,000 rpm (under H₂O load) |
| Speed Control | Stepless (Knob) |
| Timer Range | 1 - 8 min |
| Processing Volume (H₂O) | Φ25: 7,000 ml |
| Max. Processing Viscosity | Φ25: 3,500 mPa·s |
| Working Head Dimensions (Φ×L) | Φ25 × 216 mm |
| Working Head Immersion Depth | 62 - 147 mm |
| Working Head Material | SUS316L |
| Power Supply | AC 220V 50Hz |
| Power | 450 W |
| Net Weight | 9.54 kg |
| Dimensions (L×W×H) | 320 × 220 × 630 mm |
| Parameter | Specification |
|---|---|
| Model | KT-HEA-36 |
| Speed Range | Φ36: 8,000 - 24,000 rpm |
| Speed Control | Stepless (6-level dial) |
| Processing Volume Range (H₂O) | Φ36: 500 - 8,000 ml |
| Max. Processing Viscosity | Φ36: 10,000 mPa·s |
| Working Head Dimensions (Φ×L) | Φ36 × 225 mm |
| Working Head Immersion Depth | 150 mm |
| Working Head Material | 316 Stainless Steel |
| Power Supply | AC 160 - 250V 50Hz |
| Power | 1,300 W |
| Net Weight | 7.85 kg |
| Dimensions (L×W×H) | 315 × 200 × 670 mm |
| Parameter | Specification |
|---|---|
| Model | KT-HET-25DT |
| Speed Control | Stepless (Knob) |
| Processing Volume (H₂O) | Φ25: 7,000 ml |
| Max. Processing Viscosity | Φ25: 3,500 mPa·s |
| Working Head Dimensions (Φ×L) | Φ25 × 216 mm |
| Working Head Immersion Depth | 62 - 147 mm |
| Working Head Material | SUS316L |
| Temperature Measurement Range | -10 ~ 200°C |
| Power Supply | AC 220V 50Hz |
| Power | 1,050 W |
| Net Weight | 10.5 kg |
| Dimensions (L×W×H) | 360 × 380 × 638 mm |
Applications
This versatile instrument is indispensable for a variety of critical laboratory tasks, including:
- Biotechnology & Pharmaceuticals: Cell disruption, tissue homogenization, and preparation of vaccines and liposomes.
- Cosmetics: Creating stable emulsions for creams, lotions, and serums; dispersing pigments and active ingredients.
- Food & Beverage: Developing new product textures, creating flavor emulsions, and ensuring product stability.
- Chemicals: Dispersing nanoparticles, producing fine chemical suspensions, and accelerating reactions.
Your Partner in Precision
Our Laboratory Homogenizer is more than just equipment; it's a catalyst for innovation. By delivering powerful, consistent, and adaptable sample preparation, it empowers your lab to achieve dependable results, reduce development time, and maintain the highest quality standards. We are committed to supporting your success from initial research to small-batch production, ensuring our technology meets your evolving needs.
To discover how our homogenizer can elevate your research and development, or to inquire about a solution tailored to your specific application, please connect with our specialists via our Contact Form.
