Introduction to Common Laboratory Vacuum Pumps

Introduction to Common Laboratory Vacuum Pumps

5 days ago

Molecular Pump

Working Principle

The molecular pump functions through a sophisticated interplay of rotating and fixed vanes, meticulously designed to transport gas molecules towards the exhaust port. This mechanism is pivotal in achieving high vacuum levels, a critical requirement in various laboratory settings. However, it is essential to note that the molecular pump does not operate in isolation; it necessitates a foreground vacuum to function effectively. This prerequisite ensures that the pump can efficiently manage the gas molecules, thereby maintaining optimal vacuum conditions.

To further elucidate, the operational sequence involves the rotation of vanes at high speeds, creating a dynamic force that propels gas molecules towards the exhaust. This rotational motion is synchronized with the fixed vanes, which guide the gas molecules along a predetermined path. The combination of these elements results in a highly efficient vacuum generation process.

In summary, the molecular pump's working principle hinges on the strategic use of rotating and fixed vanes to manage gas molecules, achieving high vacuum levels that are indispensable in scientific research and experimentation.

Types and Advantages

When it comes to molecular pumps, several types exist, each with distinct advantages tailored to specific laboratory needs. Traction molecular pumps are characterized by their rapid start-up capabilities and impressive compression ratios. These features make them ideal for applications requiring quick vacuum establishment and maintenance. However, their reliability is somewhat compromised, necessitating careful maintenance and occasional replacements.

In contrast, turbo molecular pumps excel in achieving higher limit vacuums. Their design allows for seamless operation alongside mechanical pumps, which serve as foreground pumps. This dual-pump configuration enhances the overall vacuum performance and extends the operational lifespan of the system. The ability to handle higher vacuum levels makes turbo molecular pumps a preferred choice for precision experiments and delicate equipment.

Composite molecular pumps represent a synthesis of the best attributes from both traction and turbo molecular pumps. By integrating elements of both technologies, these pumps offer a balanced solution with reduced start-up times, high compression ratios, and improved reliability. This hybrid approach ensures that laboratories can achieve both rapid vacuum establishment and sustained high vacuum levels without compromising on durability or performance.

Pump Type Start-Up Time Compression Ratio Limit Vacuum Reliability
Traction Molecular Pump Short High Moderate Low
Turbo Molecular Pump Moderate Moderate High High
Composite Molecular Pump Short High High High

This table summarizes the key characteristics of each molecular pump type, providing a quick reference for selecting the most suitable pump based on specific laboratory requirements.

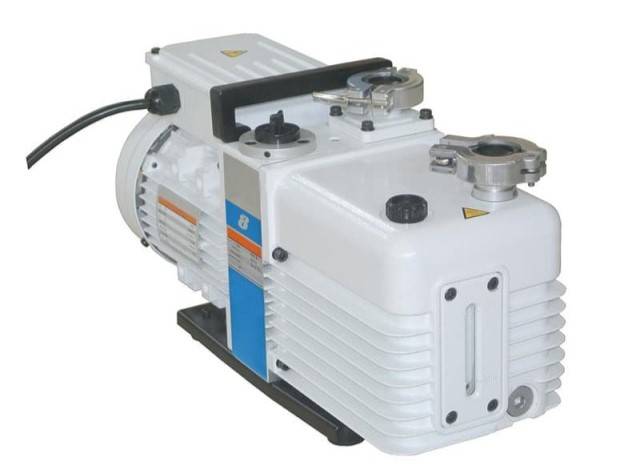

Rotary Vane Vacuum Pump

Working Pressure Range

Rotary vane vacuum pumps are designed to operate within a specific pressure range, typically from atmospheric pressure down to ultra-high vacuum levels. The operational pressure range for these pumps spans from 101.325 Pa to 1.33 × 10^-2 Pa, making them versatile for various laboratory applications.

Pressure Range Description
101.325 Pa Atmospheric pressure, the upper limit for operation.
1.33 × 10^-2 Pa Ultra-high vacuum, the lower limit for operation.

This broad pressure range allows rotary vane pumps to be commonly used as fore stage pumps in combination with other types of vacuum pumps, such as molecular pumps. By operating in this range, rotary vane pumps effectively reduce the pressure in the system to a level suitable for the efficient operation of the secondary pump.

In combination pump setups, the rotary vane pump acts as a preliminary vacuum creator, reducing the pressure to a level where the molecular pump can then achieve higher vacuum levels more efficiently. This collaborative approach ensures that the entire vacuum system operates smoothly and effectively, meeting the diverse vacuum requirements of laboratory experiments and processes.

Types and Applications

Liquid ring vacuum pumps, including water ring and Nasi pumps, are particularly adept at handling corrosive gases due to their liquid ring design, which provides a natural barrier against chemical reactions. These pumps are often preferred in environments where gas purity is a critical concern, as they minimize the risk of contamination from pump materials.

Slide valve vacuum pumps, on the other hand, excel in providing stable operation and enhanced durability. Their design allows for precise control over the pumping process, making them ideal for applications requiring consistent performance over extended periods. This stability is crucial in processes where downtime can be costly, such as in continuous manufacturing or research settings.

Jet vacuum pumps, known for their ability to withstand high temperature variations, are versatile in their applications. They are commonly used in processes involving thermal cycling, such as annealing or heat treatment, where maintaining a stable vacuum despite temperature fluctuations is essential. This adaptability makes jet vacuum pumps a valuable asset in environments where conditions can be unpredictable.

Related Knowledge

Pressure Representation

Understanding the difference between absolute pressure, gauge pressure, and vacuum is crucial for interpreting pressure readings in various environments, especially in laboratory settings where precise measurements are essential.

Absolute Pressure refers to the total pressure measured relative to a perfect vacuum, which is zero pressure. This is the most accurate representation of pressure as it accounts for all atmospheric and environmental factors.

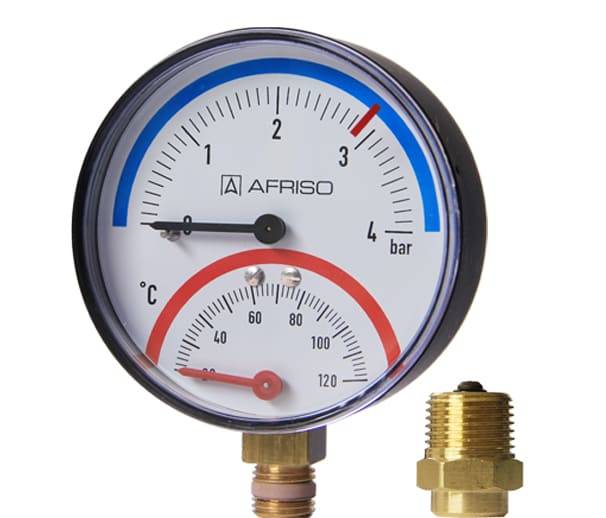

Gauge Pressure, on the other hand, measures pressure relative to the ambient atmospheric pressure. It is often used in everyday applications and is typically what you see on pressure gauges. When the gauge reads zero, it means the measured pressure is equal to the atmospheric pressure.

Vacuum, in pressure terms, is the pressure below atmospheric pressure. It can be measured in absolute terms or relative to atmospheric pressure, often expressed as a percentage of atmospheric pressure or in units like Torr or millimeters of mercury (mmHg).

Pressure Type Definition Measurement Relative To Common Use Cases
Absolute Pressure Total pressure relative to a perfect vacuum Perfect vacuum (0 Pa) Scientific experiments, high precision measurements
Gauge Pressure Pressure relative to ambient atmospheric pressure Atmospheric pressure Everyday applications, industrial equipment
Vacuum Pressure below atmospheric pressure Atmospheric pressure Laboratory vacuum systems, manufacturing processes

These distinctions are particularly important when selecting and operating vacuum pumps, as different types of pumps are designed to handle specific pressure ranges and conditions. For instance, molecular pumps require a foreground vacuum to operate effectively, while rotary vane pumps are suitable for a broader range of pressures.

Choosing a Vacuum Pump

When selecting a vacuum pump, several critical factors must be considered to ensure the equipment meets your specific needs. These factors include the desired vacuum level, the depth of vacuum required, and the compatibility of the pump with the gas composition and operating conditions.

Desired Vacuum Level

The desired vacuum level is a primary consideration. Different types of vacuum pumps offer varying levels of vacuum. For instance, diaphragm vacuum pumps can achieve ultimate vacuums down to 0.3 mbar, while rotary vane vacuum pumps can reach as low as 2 x 10-3 mbar. Understanding your required vacuum level will guide you toward the most suitable pump type.

Vacuum Depth and Boiling Points

Vacuum depth is another crucial factor. A greater vacuum depth allows for lower boiling points, which can be advantageous when working with compounds that have high boiling points. If your work involves such compounds, a vacuum pump with a deeper vacuum capability may be more beneficial.

Gas Composition and Pre-Vacuum Requirements

The composition of the gases you will be working with and the pre-vacuum requirements also play significant roles. Some pumps are better suited for specific gas compositions, and ensuring compatibility is essential to avoid contamination and operational issues.

Oil Contamination and Vibration

Oil contamination and vibration are additional considerations. Certain vacuum pumps may introduce oil into the system, which can be problematic if you are working with sensitive materials. Vibration levels can also affect the stability and precision of your experiments, so choosing a pump with minimal vibration is advisable.

Ultimate vs. Working Vacuum

Finally, it's important to differentiate between the ultimate vacuum and the working vacuum. The ultimate vacuum is the lowest pressure the pump can achieve, while the working vacuum is the pressure at which the pump operates efficiently. Matching these parameters to your operational needs will ensure optimal performance and longevity of your vacuum pump.

By carefully evaluating these factors, you can make an informed decision that aligns with your laboratory's requirements and enhances your experimental capabilities.
