Comprehensive Classification and Application of Magnetron Sputtering Targets

Main Applications of Magnetron Sputtering Targets

Industries Utilizing Sputtering Targets

Sputtering targets play a pivotal role across a myriad of industries, with their applications extending far beyond the electronics and information sectors. In the realm of electronics, these targets are indispensable for manufacturing integrated circuits, memory chips, and flat panel displays. They also contribute significantly to the production of laser memory devices and various electronic control components.

In the construction industry, sputtering targets are utilized to create Low-E (low-emissivity) glass coatings, which are renowned for their energy-saving properties, light control capabilities, and aesthetic appeal. This technology is integral to modern building designs, enhancing both functionality and sustainability.

The renewable energy sector also benefits from sputtering targets, particularly in the production of third-generation, thin-film solar cells. As the demand for sustainable energy solutions grows, so does the need for advanced coating technologies that enhance the efficiency and durability of solar panels.

Beyond these sectors, sputtering targets are employed in consumer electronics for the production of CDs, DVDs, LED displays, and magnetic storage devices. In optics, they are crucial for creating precision optical filters, anti-reflective coatings, and laser lenses, which are essential components in spectroscopy and cable communications.

In medical and scientific applications, sputtering targets are used to manufacture medical devices, implants, and microscopy slides, ensuring high precision and reliability in these critical fields. Additionally, they are utilized in decorative applications for architectural glass, jewelry, and various consumer products, adding a layer of sophistication and durability to these items.

Overall, the versatility and wide-ranging applications of sputtering targets underscore their significance in driving innovation and enhancing the performance of products across multiple industries.

Classification of Target Material

Shape Classification

In the realm of magnetron sputtering targets, classification based on shape is a fundamental aspect that influences their application and performance. The shape of a sputtering target not only determines its physical form but also plays a crucial role in the deposition process and the resulting film properties.

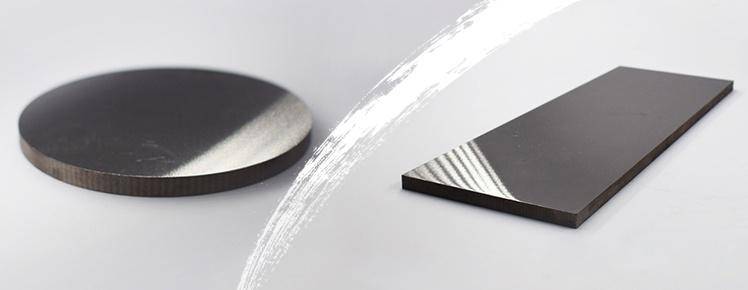

The primary shapes of sputtering targets include:

• Square Targets: These are commonly used due to their versatility and ease of integration into standard sputtering systems. Square targets offer a uniform surface area, which is beneficial for achieving consistent film thickness and quality across the substrate.

• Round Targets: Circular targets are often preferred in applications requiring a high degree of rotational symmetry, such as in the deposition of coatings on cylindrical substrates. Their design allows for efficient use of material and can minimize edge effects.

• Shaped Targets: These are tailored to specific applications where standard shapes are insufficient. Shaped targets can be custom-designed to fit unique deposition setups, ensuring optimal material utilization and film uniformity. Examples include targets with complex geometries or those designed for specific deposition angles.

Understanding the shape classification of sputtering targets is essential for selecting the appropriate target for a given application, thereby optimizing the sputtering process and the quality of the deposited film.

Composition Classification

The classification of magnetron sputtering targets based on their composition is a fundamental aspect that influences their performance and applications. Targets are categorized into three primary types: metal targets, alloy targets, and ceramic compound targets. Each type has distinct properties and is suited for different industrial needs.

Metal Targets: These are composed of pure metals and are often used in applications requiring high conductivity and malleability. Common examples include nickel, titanium, and copper targets, which are pivotal in the electronics industry for creating thin films with specific electrical properties.

Alloy Targets: Unlike metal targets, alloy targets are made by combining two or more metals to achieve enhanced mechanical, thermal, or electrical properties. For instance, nickel-chromium alloy targets are known for their excellent resistance to corrosion and oxidation, making them ideal for high-temperature applications.

Ceramic Compound Targets: These targets are composed of non-metallic elements or compounds, such as oxides, nitrides, and carbides. Ceramic targets, like ITO (Indium Tin Oxide) and AZO (Aluminum-doped Zinc Oxide), are crucial in the production of transparent conductive coatings used in displays and solar cells. Their unique optical and electrical properties make them indispensable in modern technology.

Understanding these classifications helps in selecting the most appropriate target for specific applications, ensuring optimal performance and efficiency in various industries.

Application Field Classification

Magnetron sputtering targets find extensive applications across diverse industries, each tailored to specific technological requirements. These targets can be broadly categorized into several key fields:

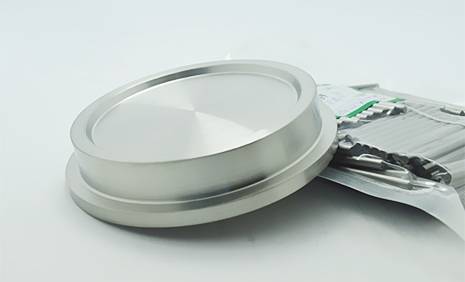

• Microelectronic Targets: Essential in the fabrication of integrated circuits and semiconductor devices, these targets ensure the precision and reliability of electronic components.
• Magnetic Recording Targets: Used in the production of hard disk drives and other magnetic storage devices, they contribute to data storage efficiency and durability.
• Optical Disk Targets: Crucial for the manufacturing of optical storage media like CDs and DVDs, these targets enhance the clarity and data-holding capacity of these devices.
• Precious Metal Targets: Employed in various high-end applications, including decorative coatings and specialized electronics, these targets leverage the unique properties of metals like gold and platinum.
• Thin Film Resistor Targets: Utilized in the creation of thin-film resistors, these targets are vital for applications requiring precise electrical resistance.
• Conductive Film Targets: Essential in the production of conductive coatings for touchscreens and other electronic interfaces, these targets ensure optimal conductivity.
• Surface Modification Targets: Applied in processes aimed at altering the surface properties of materials, such as improving hardness or corrosion resistance.
• Photomask Layer Targets: Used in the fabrication of photomasks, these targets play a crucial role in the photolithography process for semiconductor manufacturing.
• Decorative Layer Targets: Employed in the creation of decorative coatings for various consumer products, enhancing their aesthetic appeal.
• Electrode Targets: Vital in the production of electrodes for batteries and other electrochemical devices, ensuring efficient energy storage and transfer.
• Encapsulation Targets: Used in the encapsulation of electronic components to protect them from environmental factors, these targets enhance device longevity.
• Other Targets: Including those used in niche applications or emerging technologies, these targets cater to specialized needs within various industries.

This classification underscores the versatility and critical role of magnetron sputtering targets in modern technology and industrial processes.

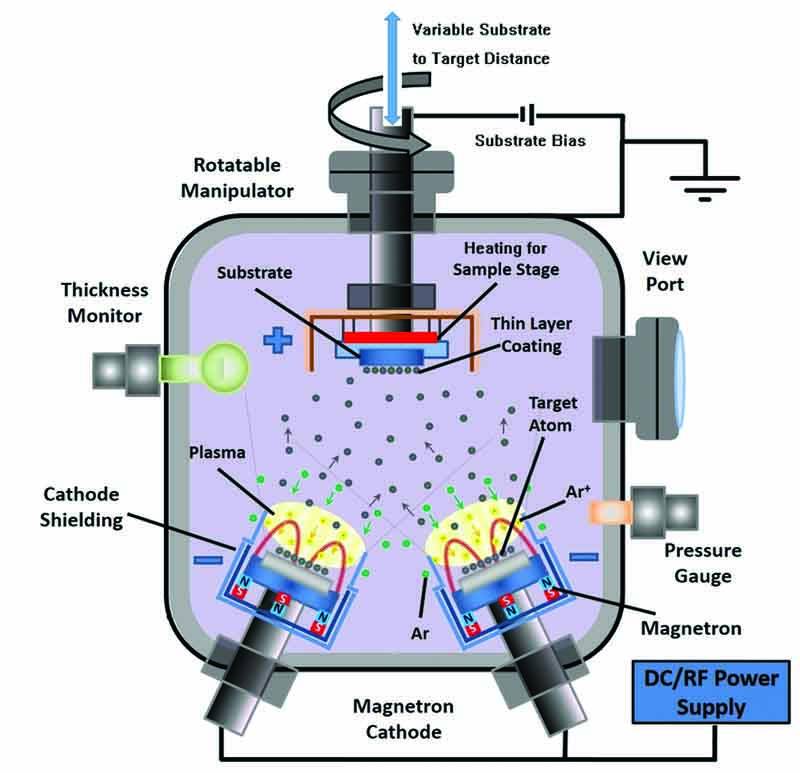

Magnetron Sputtering Principle

Basic Principle and Process

In magnetron sputtering, the process begins with the setup of an orthogonal electromagnetic field within a high-vacuum chamber. This chamber is filled with an inert gas, typically argon (Ar), which serves as the working gas. Permanent magnets are strategically placed on the surface of the target material to generate a magnetic field ranging from 250 to 350 gauss. Simultaneously, a high-voltage electric field is applied, creating an orthogonal electromagnetic field configuration.

Under the influence of this electric field, the argon gas becomes ionized, splitting into positive argon ions and electrons. The target, acting as the cathode, is subjected to a negative high voltage, which enhances the ionization of the working gas. The electrons emitted from the target are influenced by the magnetic field, increasing their chances of ionizing more argon gas near the cathode. This results in the formation of a high-density plasma region close to the target surface.

The ionized argon ions, accelerated by the Lorentz force, are propelled towards the target surface at high speeds. Upon impact, these ions cause the target material to be sputtered—atoms are ejected from the target surface due to momentum transfer. These sputtered atoms, possessing significant kinetic energy, travel towards the substrate where they eventually condense to form a thin film. This process is governed by the principle of momentum transfer, ensuring that the atoms ejected from the target maintain their energy and directionality, ultimately leading to the deposition of a uniform and high-quality film on the substrate.

Types of Magnetron Sputtering

Magnetron sputtering techniques are classified into several types, each tailored to specific applications and materials. The most common types include Direct Current (DC) magnetron sputtering, Radio Frequency (RF) magnetron sputtering, and High Power Impulse Magnetron Sputtering (HIPIMS).

Direct Current (DC) Magnetron Sputtering

In DC magnetron sputtering, a direct current power supply is employed to generate a plasma within a low-pressure gas environment, typically argon. The plasma forms near the target material, which is usually made of metal or ceramic. The plasma ions collide with the target, ejecting atoms that are deposited onto the substrate. The magnetic field generated by the magnet assembly enhances the sputtering rate and ensures uniform deposition. The sputtering rate in DC magnetron sputtering can be calculated using a specific formula, which factors in ion flux density, target atomic weight, and other parameters.

Radio Frequency (RF) Magnetron Sputtering

RF magnetron sputtering uses a radio frequency power supply to create plasma. This technique is versatile, capable of sputtering both conductive and non-conductive materials. It is particularly useful for preparing compound materials like oxides, nitrides, and carbides through reactive sputtering. The RF method extends the applicability of sputtering to a broader range of materials, making it a preferred choice in various industries.

High Power Impulse Magnetron Sputtering (HIPIMS)

HIPIMS represents a more advanced technique where high-power impulses are applied to the target material using a pulsed power supply. This method significantly increases the ionization rate of the sputtered material, leading to higher deposition rates and better film quality. HIPIMS is particularly advantageous for applications requiring high-quality, dense films with excellent adhesion and low defect densities.

By understanding these different types of magnetron sputtering, one can better select the appropriate technique for specific material deposition needs, optimizing both process efficiency and final product quality.

Magnetron Sputtering Targets

Types of Sputtering Targets

Sputtering targets are categorized based on their material composition, each serving specific roles in various applications. The primary types include:

• Metal Sputtering Targets: These are typically used in DC magnetron sputtering due to their conductive properties. Examples include nickel, titanium, and copper targets.

• Alloy Sputtering Targets: Composed of two or more metals, these targets offer enhanced properties like corrosion resistance and mechanical strength. Examples include nickel-chromium and aluminum-silicon alloys.

• Ceramic Sputtering Targets: Often used in RF sputtering, these targets include oxides, nitrides, and carbides. They are known for their high melting points and chemical stability. Examples include ITO (Indium Tin Oxide) and AZO (Aluminum-doped Zinc Oxide) targets.

• Boride Ceramic Sputtering Targets: These targets, such as zirconium diboride, are known for their high hardness and wear resistance.

• Carbide Ceramic Sputtering Targets: Examples include silicon carbide and titanium carbide, which are used for their abrasion and corrosion resistance.

• Fluoride Ceramic Sputtering Targets: These targets, like magnesium fluoride, are used in optical applications due to their transparency in ultraviolet and infrared light.

• Nitride Ceramic Sputtering Targets: Silicon nitride and titanium nitride are examples, used for their high thermal stability and electrical properties.

• Oxide Ceramic Targets: Widely used in electronic and optical coatings, examples include aluminum oxide and titanium dioxide.

• Selenide Ceramic Sputtering Targets: Zinc selenide is an example, used in infrared optical systems.

• Silicon Ceramic Sputtering Targets: Pure silicon targets are used in semiconductor applications.

• Sulphide Ceramic Sputtering Targets: Zinc sulfide is an example, used in optical coatings.

• Telluride Ceramic Sputtering Targets: These are used in photovoltaic applications, such as cadmium telluride.

• Other Ceramic Targets: This category includes specialized targets like chromium-doped silicon oxide (Cr-SiO) and indium phosphide (InP), each tailored for specific applications.

This diverse range of sputtering targets ensures that the technology can be adapted to a wide array of industrial needs, from electronics to optics and beyond.

High Purity and Density Targets

High purity and high density sputtering targets are essential components in various industries, particularly those requiring precise and reliable thin film deposition processes. These targets are characterized by their exceptional purity levels, ranging from 99.9% to 99.999%, ensuring that the resulting films are free from impurities that could compromise their performance.

The significance of high purity in sputtering targets cannot be overstated. Impurities in the target material can lead to the incorporation of unwanted elements into the deposited film, affecting its electrical, optical, and mechanical properties. For instance, in the electronics industry, even trace amounts of impurities can cause significant deviations in the performance of integrated circuits, information storage devices, and liquid crystal displays.

Similarly, high density targets are crucial for achieving uniform and efficient sputtering. A denser target material allows for a more consistent distribution of sputtered atoms, which in turn results in a more uniform film deposition. This is particularly important in applications such as glass coating, where uniformity is key to achieving the desired aesthetic and functional properties.

In summary, high purity and high density sputtering targets are indispensable for industries that require precise and reliable thin film deposition processes. Their superior purity and density ensure that the resulting films meet the stringent performance requirements of modern technologies.

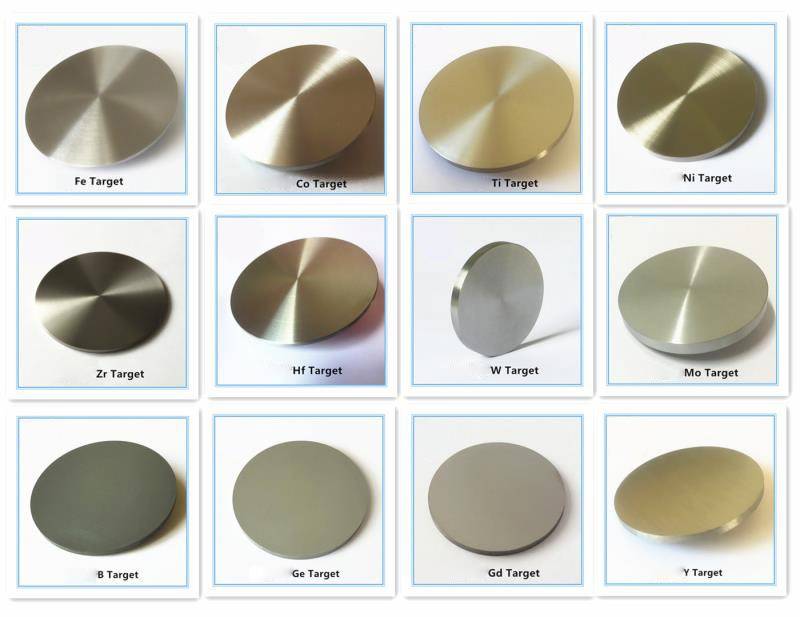

Metal Targets

Metal sputtering targets are foundational components in various high-tech applications, ranging from electronics to aerospace. These targets are typically composed of high-purity metals, ensuring minimal impurities that could affect the quality of the deposited film. The diversity of metal targets available caters to a wide array of specialized applications, each requiring specific material properties.

For instance, nickel targets are crucial in applications requiring high conductivity and corrosion resistance, such as in the production of electronic components. Titanium targets, on the other hand, are essential in aerospace and medical devices due to their excellent strength-to-weight ratio and biocompatibility. Zinc targets find their place in the manufacturing of corrosion-resistant coatings, while chromium targets are indispensable in the creation of hard, wear-resistant surfaces.

Metal targets also include magnesium, known for its lightweight properties, and niobium, which is highly resistant to corrosion. Tin targets are used in the production of conductive coatings, and aluminum targets are widely employed in the electronics industry for their excellent electrical conductivity. Indium targets are vital in the production of touchscreens and other optoelectronic devices.

Other notable metal targets include iron, zirconium-aluminum, titanium-aluminum, zirconium, aluminum-silicon, silicon, copper, tantalum, germanium, silver, cobalt, gold, gadolinium, lanthanum, yttrium, cerium, tungsten, nickel-chromium, hafnium, molybdenum, iron-nickel, and various other specialized targets. Each of these metals brings unique properties to the table, enabling the creation of advanced materials with precise characteristics tailored to specific industrial needs.

In summary, the extensive range of metal sputtering targets available today underscores the critical role they play in the advancement of technology across multiple sectors. Their high purity and specialized properties ensure that the films and coatings produced meet the stringent requirements of modern applications.

Ceramic Targets

Ceramic targets are integral components in the process of magnetron sputtering, playing a crucial role in the deposition of thin films for various applications. These targets are composed of a wide array of ceramic materials, each tailored to specific industrial needs. Key ceramic targets include:

• Oxide Targets: Such as ITO (Indium Tin Oxide), AZO (Aluminum-doped Zinc Oxide), magnesium oxide, iron oxide, chromium oxide, zinc oxide, zinc sulfide, cerium oxide, zirconium dioxide, niobium oxide, titanium dioxide, hafnium dioxide, aluminum oxide, tantalum oxide, and nickel oxide.
• Nitride Targets: Examples are silicon nitride, titanium nitride, aluminum nitride, boron nitride, and lithium niobate.
• Carbide Targets: Including silicon carbide and zirconium diboride.
• Fluoride Targets: Notably, magnesium fluoride, yttrium fluoride, and zinc selenide.
• Selenide and Sulfide Targets: Such as zinc selenide and zinc sulfide.
• Complex Ceramic Targets: Including praseodymium titanate, barium titanate, lanthanum titanate, and other specialized compounds.

These ceramic targets are essential for creating high-performance coatings in industries ranging from electronics and optics to decorative and protective applications. The diversity of ceramic materials ensures that each target can be optimized for specific properties such as conductivity, transparency, hardness, and thermal stability, thereby meeting the exacting demands of modern technology.

Alloy Targets

Alloy targets are a critical component in the process of magnetron sputtering, playing a pivotal role in the deposition of thin films with specific properties. These targets are composed of various metallic and non-metallic elements combined in precise ratios to achieve desired characteristics such as hardness, conductivity, and corrosion resistance. The selection of alloy targets is crucial as it directly impacts the quality and functionality of the deposited films.

Common Types of Alloy Targets

• Nickel-Chromium Alloy Targets: Known for their excellent corrosion resistance and thermal stability, these targets are widely used in the electronics industry for the deposition of protective coatings on integrated circuits and other sensitive components.

• Nickel-Vanadium Alloy Targets: Characterized by their high strength and ductility, these targets are ideal for applications requiring durable and flexible coatings, such as in the aerospace industry.

• Aluminum-Silicon Alloy Targets: Offering a balance of electrical conductivity and mechanical strength, these targets are frequently used in the production of semiconductor devices and solar cells.

• Nickel-Copper Alloy Targets: Renowned for their antimicrobial properties and resistance to oxidation, these targets are essential in medical device manufacturing and decorative coatings.

• Titanium-Aluminum Alloy Targets: Providing a combination of lightweight and high strength, these targets are utilized in the aerospace and automotive industries for creating lightweight yet robust components.

• Boron-Iron Alloy Targets: Known for their high thermal conductivity and resistance to wear, these targets are used in the manufacturing of cutting tools and heat sinks.

• Ferrosilicon Alloy Targets: Offering excellent magnetic properties, these targets are crucial in the production of magnetic recording media and sensors.

Applications of Alloy Targets

The versatility of alloy targets extends across multiple industries, including electronics, aerospace, automotive, medical, and decorative applications. Each alloy target is tailored to meet specific requirements, ensuring that the resulting thin films possess the necessary properties for their intended use. For instance, in the electronics industry, the precise control of film properties through the use of alloy targets is essential for the performance and reliability of devices.

In summary, alloy targets are indispensable in the realm of magnetron sputtering, offering a wide array of options to cater to diverse industrial needs. Their ability to deliver tailored properties makes them a cornerstone in the production of high-quality thin films for various applications.
