Electrochemical Consumables
Customizable Fuel Cell Stack Components for Diverse Applications
Item Number : FCS
Price varies based on specs and customizations
- MEA Active Area
- 3.2 cm x 3.2 cm (10 cm²)
- Material Properties
- Acid and Alkali Resistant, Durable, High-Quality
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Reliable PartnerEasy ordering process, quality products, and dedicated support for your business success.
Introduction

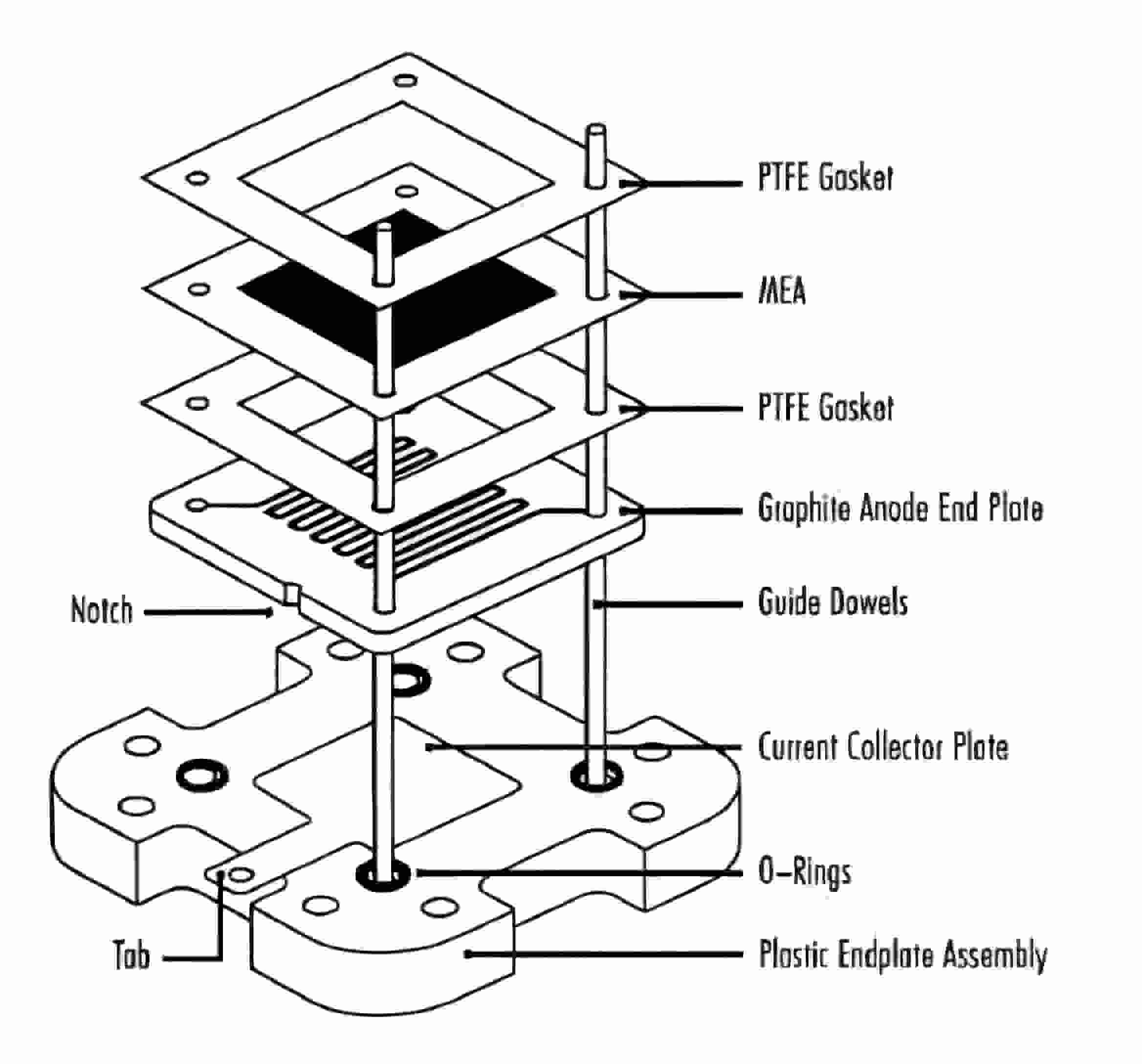

The exploded view clearly illustrates the various layers: Plastic Endplate Assembly, O-Rings, Current Collector Plate, Guide Dowels, Graphite Anode End Plate, PTFE Gaskets, and the Membrane Electrode Assembly (MEA). This structure highlights the thoughtful engineering that allows for easy assembly and customization.

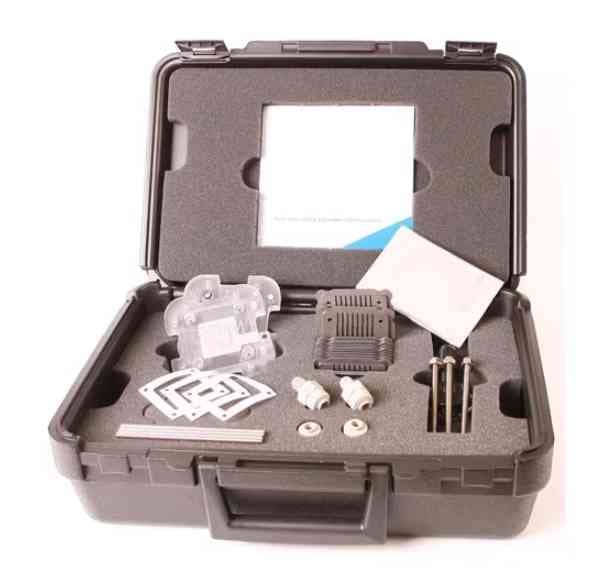

The FS Fuel Cell Stack Components are engineered for flexibility, allowing individual components to be disassembled and reassembled. This modularity makes it simple to configure and scale for different experimental setups and power requirements. It's an excellent tool for hands-on learning and advanced research in fuel cell technology, enabling users to explore various configurations and optimize performance.
Features:
- Modular Design: Allows for easy assembly, disassembly, and reconfiguration of components.
- Key Components Included: Plastic Endplate Assembly, O-Rings, Current Collector Plate, Guide Dowels, Graphite Anode End Plate, PTFE Gaskets, and MEA.
- Precision Engineering: Components are designed for optimal fit and function, ensuring reliable performance.
- Durable and Resistant Materials: Constructed from high-quality, acid and alkali-resistant materials for longevity.
- Scalable: Adaptable to different power requirements and experimental setups.
- Customizable Manufacturing: From prototypes to large-scale orders, ensuring tailored performance.
Technical Parameters:
| Component / Feature | Description |
|---|---|
| MEA Active Area | 3.2 cm x 3.2 cm (10 cm²) |
| MEA Membrane Area | 5.3 cm x 5.3 cm |
| Graphite Plate Overall Dimensions (L x W x D) | 6.3 cm x 6.3 cm x 0.4 cm |
| Assembly Structure | Exploded view illustrating layers: Plastic Endplate Assembly, O-Rings, Current Collector Plate, Guide Dowels, Graphite Anode End Plate, PTFE Gaskets, MEA |
| Material Properties | Acid and Alkali Resistant, Durable, High-Quality |
| Manufacturing Capability | Precision Production, Custom from Prototype to Volume |
| Customization | Tailored manufacturing services available |
FS Performance:
| FS Performance | 1 Cell | 5 Cell | 10 Cell | 15 Cell | 20 Cell |
|---|---|---|---|---|---|
| Nominal Output Power (Watts)* | 0.25 to 0.35 | 3 to 3.5 | 6 to 7 | 9 to 11.5 | 12 to 14 |
| Nominal Operating Voltage (V)** | 0.45 to 0.6 | 2.3 to 3 | 4.6 to 6 | 7 to 9 | 9.5 to 12 |
| Hydrogen Consumption (cc/min) | 10.6 | 53 | 106 | 162 | 400 |
*The provided power output numbers are based on the forced air operation using the fan.
**The FS nominal operating voltage per cell is typically around 0.45 to 0.6 V, but could vary between 0.4 and 0.9V per cell depending on how hard you are running the cell (i.e. pulling more current will result in a lower cell voltage, less current will have a higher cell voltage). Humidity of the H₂ gas and stack temperature will also play a major role in the power output (or voltage or current) values.
Benefits and Customer Value:
- Versatility in Research and Education: Ideal for academic research, hands-on training, and product development in fuel cell technology.
- Simplified Experimentation: The modular nature allows researchers to easily swap out components and test different configurations.
- Reliable Performance: High-quality materials and precise manufacturing ensure consistent and dependable results.
- Cost-Effective Customization: KINTEK provides tailored solutions, allowing customers to get exactly what they need without unnecessary overhead.
- One-Stop Procurement: Streamlined sourcing of all necessary electrochemical instruments and consumables from a single, trusted provider.
- Enhanced Learning: Provides a clear, practical understanding of fuel cell construction and operation.
Discover how our customizable FS Fuel Cell Stack Components can accelerate your research and educational endeavors. For tailored solutions and to discuss your specific needs, connect with us today and let our experts assist you in achieving your project goals. Don't miss out on the opportunity to elevate your electrochemical projects with reliable, high-performance components. Contact us to learn more
