Custom Ion Conductivity Test Fixtures for Fuel Cell Research
Item Number : KT-CTF
Price varies based on specs and customizations
- Electrode Material
- Platinum Wire
- Measurement Method
- Two-Probe and Four-Probe Methods
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Reliable PartnerEasy ordering process, quality products, and dedicated support for your business success.
Introduction
The fixture, such as the SMP102 model, is constructed with high-quality materials, featuring platinum wire electrodes for excellent conductivity and a durable, non-conductive framework to ensure measurement accuracy by preventing electrical leakage. The design allows for the secure placement and testing of membranes.
For more advanced testing requirements, the fixture can be integrated into a four-electrode conductivity test cell setup, like the SMP202. This configuration allows for the introduction of liquids or humidified gases, providing a stable and controlled environment essential for precise and repeatable measurements. This is often used in conjunction with a constant temperature and humidity chamber to maintain stable testing conditions.
Detail & Parts

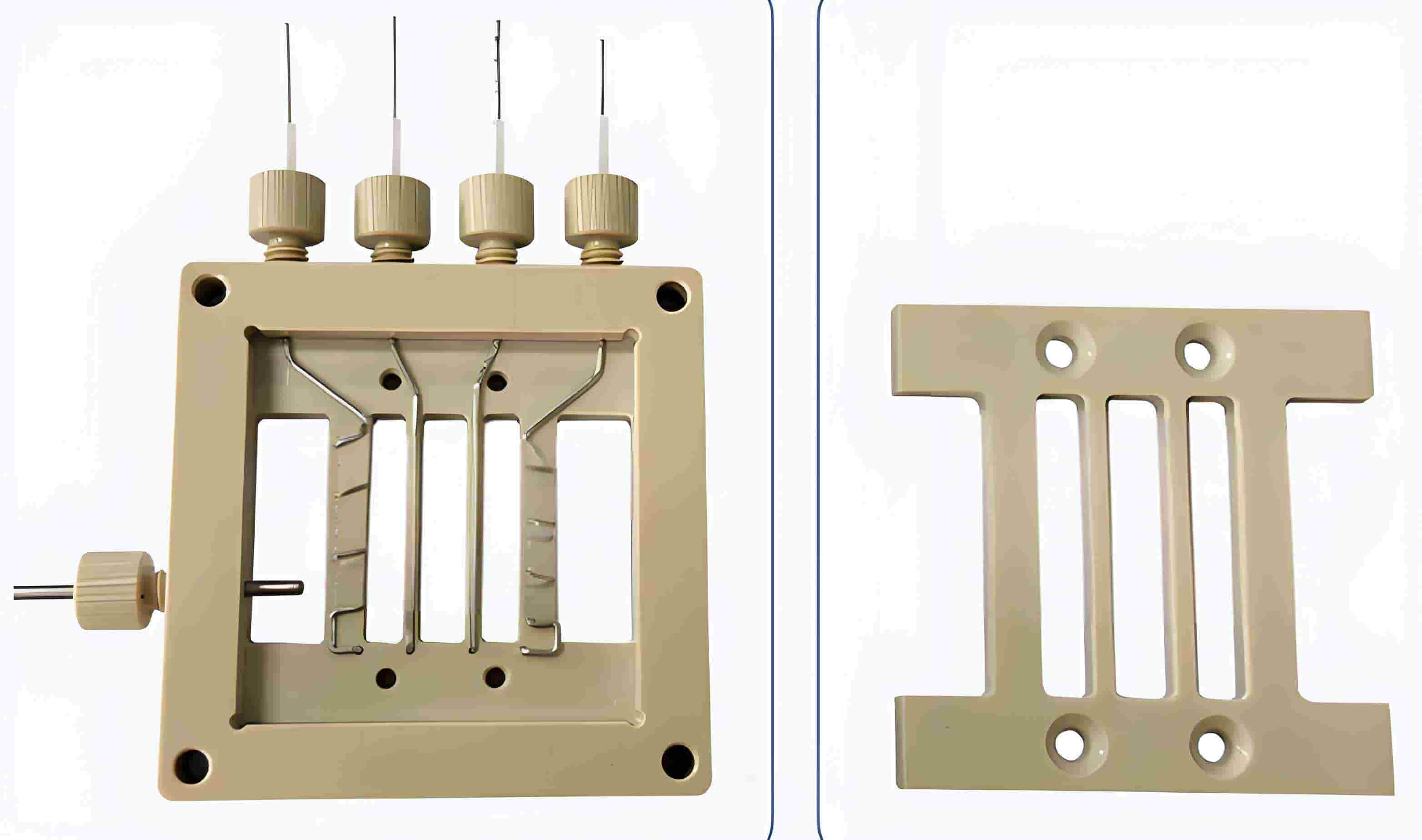

Model: SMP102
Material: Conductive platinum wire, frame made of non-conductive material
Application: Used for testing the ionic conductivity of proton exchange membranes and anion exchange membranes.

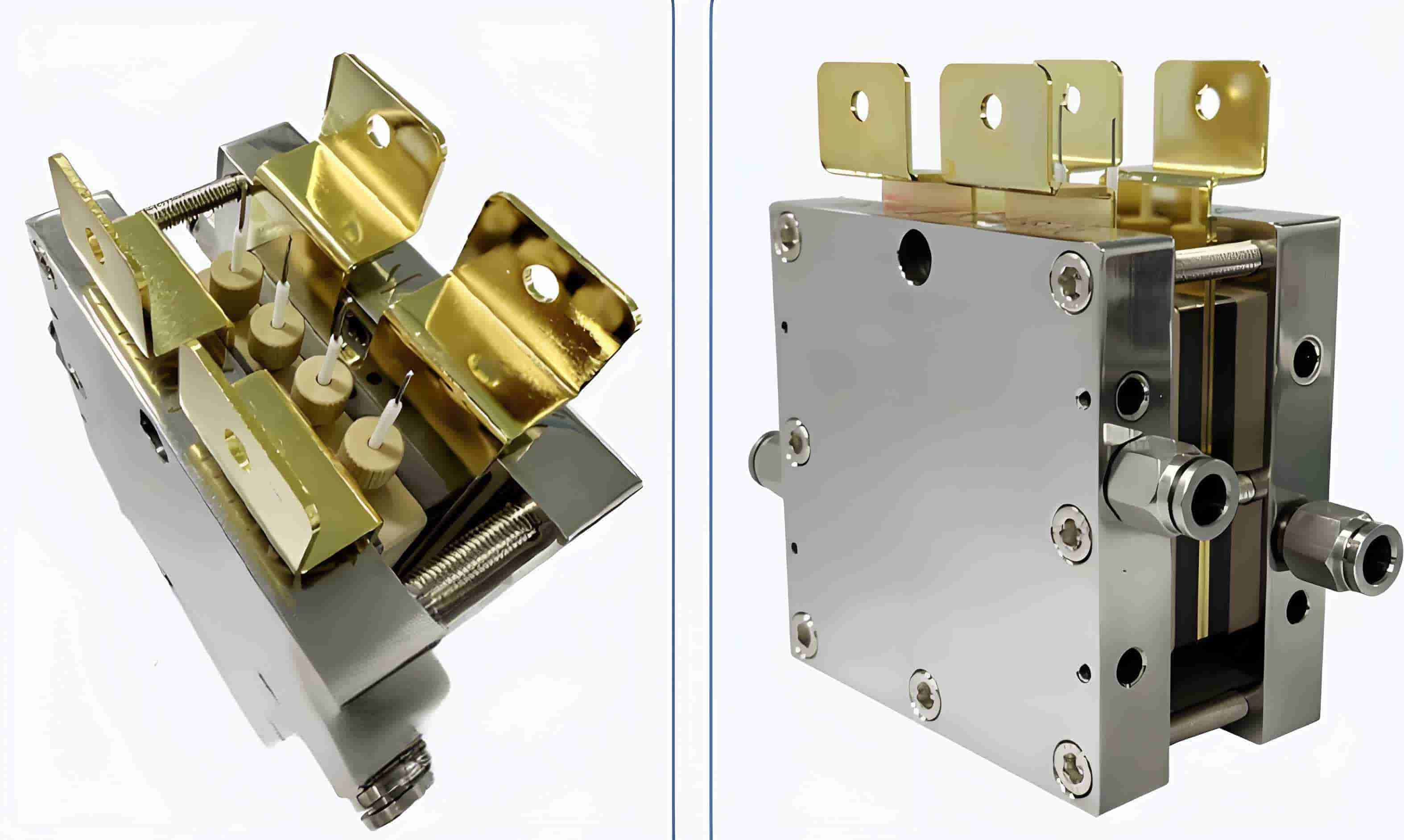

Model: SMP202
Advantages and Features: Liquids or humid gases can be introduced into the membrane through external clamps, providing a stable testing environment for the membrane.
Two-electrode method

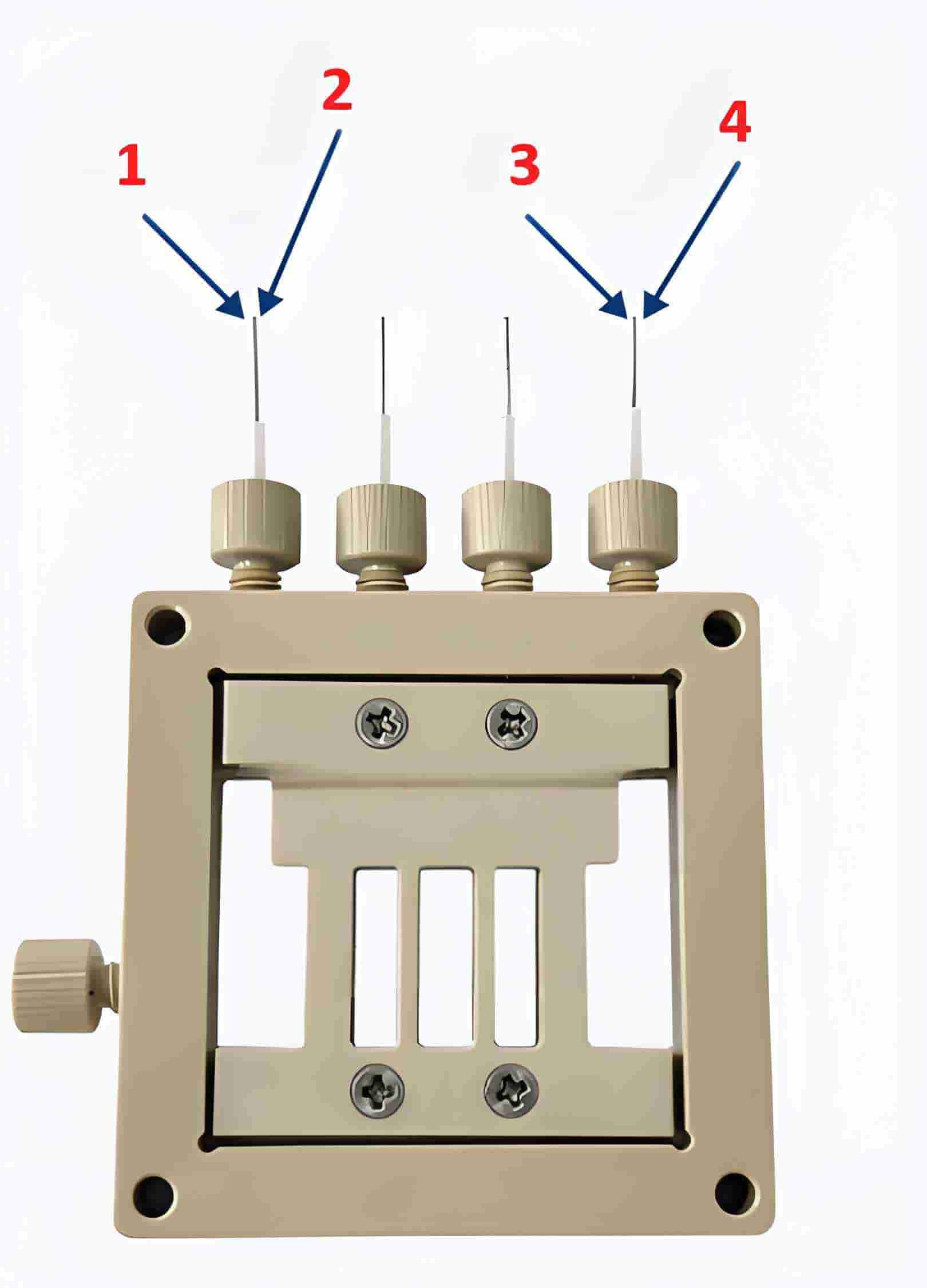

1. Auxiliary electrode 2. Reference electrode 3. Sensing electrode 4. Working electrode

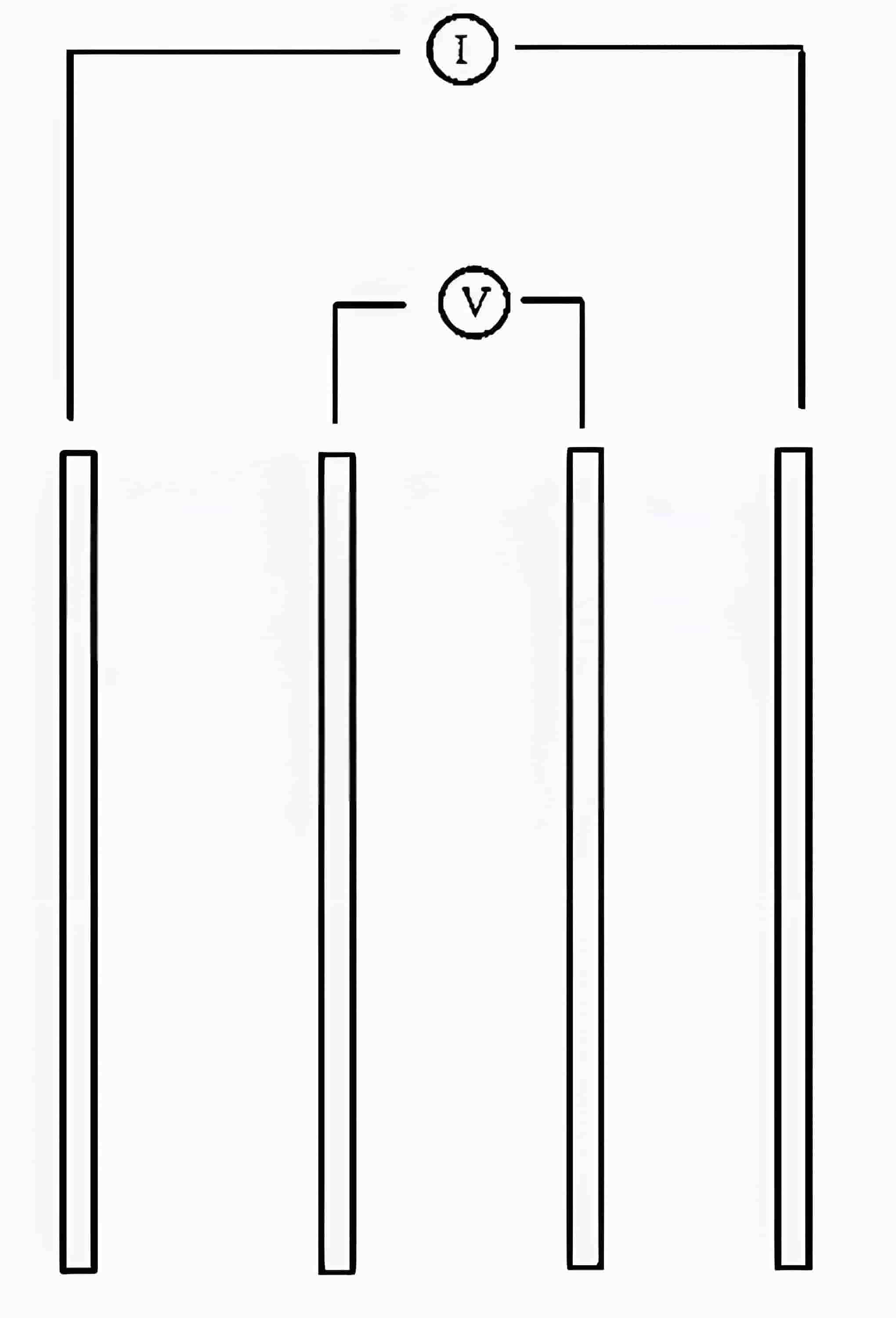

Four-electrode method

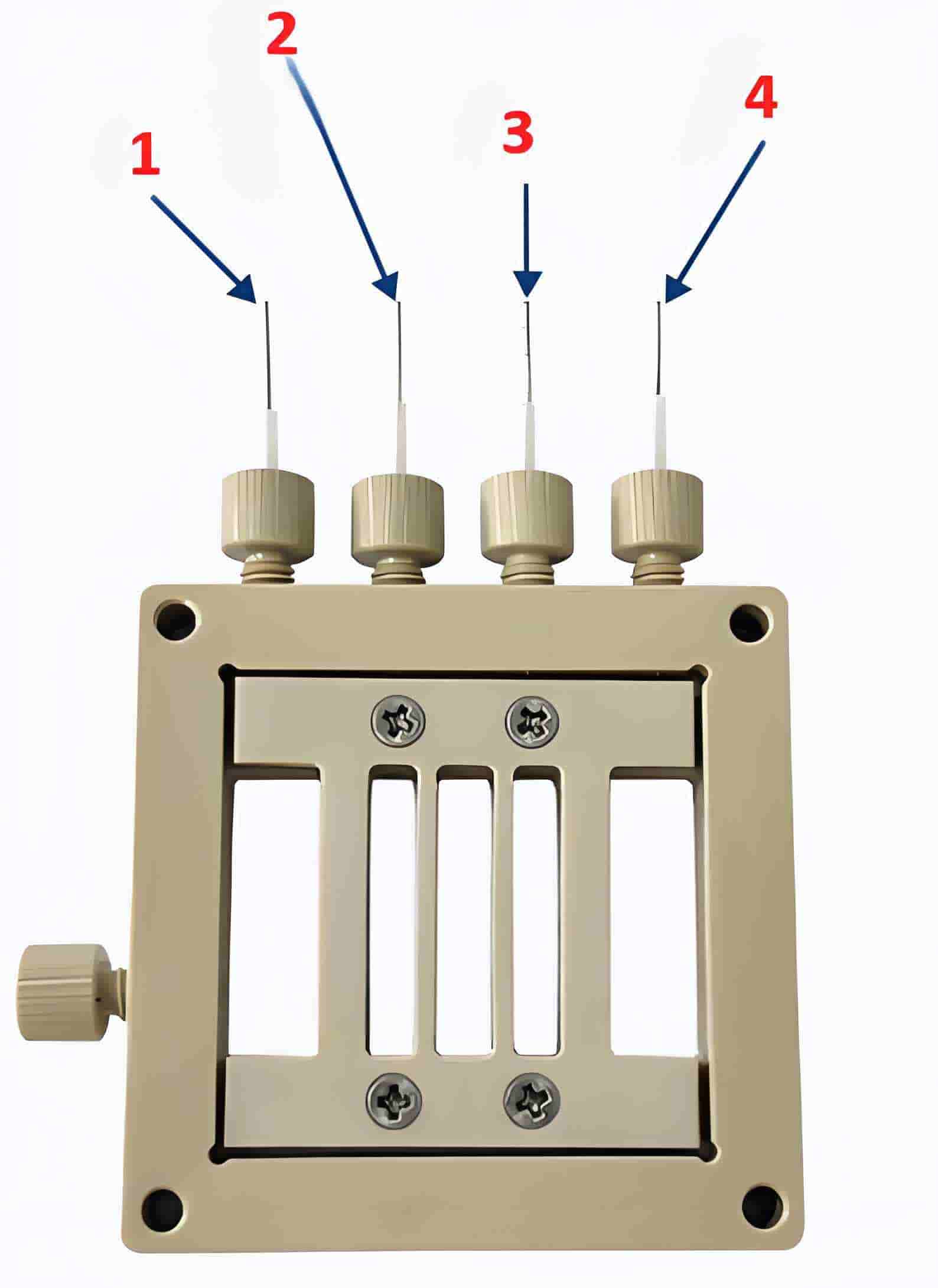

1. Auxiliary electrode 2. Reference electrode 3. Induction electrode 4. Working electrode
Connection effect diagram
Product Specifications
| Model | Parameter |
|---|---|
| SMP102 | Membrane effective test area: 2*2cm |
| SMP103 | Membrane effective test area: 3*3cm |
| SMP202 | Membrane effective test area: 2*2cm |
| SMP203 | Membrane effective test area: 3*3cm |
Applications
This test fixture is an indispensable tool for academic and industrial laboratories working in areas such as:
- Fuel Cell Development
- Electrolysis
- Battery Technology
- Membrane Science
- General Electrochemistry Research
Key Features and Customer Value
- High-Precision Measurement: Utilizes a four-electrode setup to eliminate the influence of contact and charge transfer resistances, enabling highly accurate ion conductivity measurements essential for material characterization.
- Stable Test Environment: The cell design allows for connection to an external fixture to supply liquids or humidified gas. This capability is crucial for simulating real-world operating conditions and providing the stable temperature and humidity needed for reliable testing.
- Versatile Application: The fixture is compatible with standard electrochemical workstations for Electrochemical Impedance Spectroscopy (EIS) testing. It supports both two-probe and four-probe measurement methods, offering flexibility for various experimental requirements.
- Ease of Use: The fixture features a two-part, detachable design that simplifies membrane installation. Simply place the prepared membrane between the two plates for a secure and straightforward setup.
- Customization: We understand that standard solutions don't fit every need. KINTEK offers extensive customization services to modify the fixture's dimensions, materials, and configuration to meet your specific research and application demands.
Whether you are developing novel membrane materials or performing quality assurance on existing ones, our test fixture provides the reliability and precision you need. To discuss how we can tailor this solution for your specific project requirements, please reach out to us through our #ContactForm.
Designed for You
KinTek provide deep custom made service and equipment to worldwide customers, our specialized teamwork and rich experienced engineers are capable to undertake the custom tailoring hardware and software equipment requirements, and help our customer to build up the exclusive and personalized equipment and solution!
Would you please drop your ideas to us, our engineers are ready for you now!
