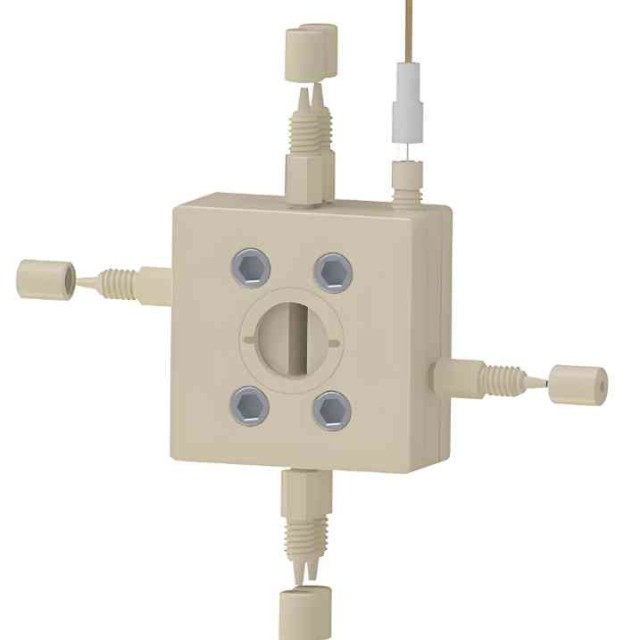

Customizable CO2 Reduction Flow Cell for NRR ORR and CO2RR Research
Item Number : KT-RFC
Price varies based on specs and customizations
- Reaction Area
- 1 cm² (Customizable)
- Test Method
- Three-Electrode System
- Cell Body Material
- PEEK
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Reliable PartnerEasy ordering process, quality products, and dedicated support for your business success.
Introduction
This high-performance electrochemical flow cell is expertly engineered for advanced research in gas-involved electrocatalytic reactions. Specifically designed as a three-electrode test cell with an integrated gas diffusion layer (GDL), it provides a stable and highly controlled environment for studying processes such as Carbon Dioxide Reduction (CO2RR), Nitrogen Reduction (NRR), and Oxygen Reduction (ORR). Its robust construction and transparent observation window make it an indispensable tool for researchers aiming to develop and evaluate novel catalysts and electrochemical systems.
Design and Key Features
- Durable Body: The main body is constructed from PEEK (Polyether ether ketone), offering exceptional resistance to a wide range of chemicals and ensuring long-term operational integrity.
- In-Situ Observation: A clear quartz window is integrated into the design, allowing for direct, real-time visual or spectroscopic monitoring of the electrode surface and reaction phenomena.
- Efficient Mass Transport: The cell accommodates various gas diffusion layer flow fields, including direct and serpentine patterns, to guarantee uniform reactant distribution and efficient product removal.
- Leak-Proof Sealing: A reliable screw-based sealing mechanism ensures a gas-tight and liquid-tight environment, preventing leaks and maintaining precise experimental conditions.
- Chemically Inert Wetted Parts: All components in contact with the electrolyte, including PTFE tubing, PEEK connectors, and fluororubber gaskets, are selected for their broad chemical compatibility and inertness.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | G10C1 |
| Reaction Area | 1 cm² (Customizable upon request) |
| Test Method | Three-Electrode System |
| Electrode Spacing | 3 mm、4mm、6mm |
| Cell Body Material | PEEK |
| Window Material | Quartz |
| GDL Flow Field | Direct Flow Channel, Serpentine Flow Channel |
| Reference Port Size | φ4 mm |
| Tubing Size | φ3 mm |
| Tubing Material | PTFE |
| Connector Material | PEEK |
| Gasket Material | Fluororubber (FKM) |
| Sealing Method | Screw-type |

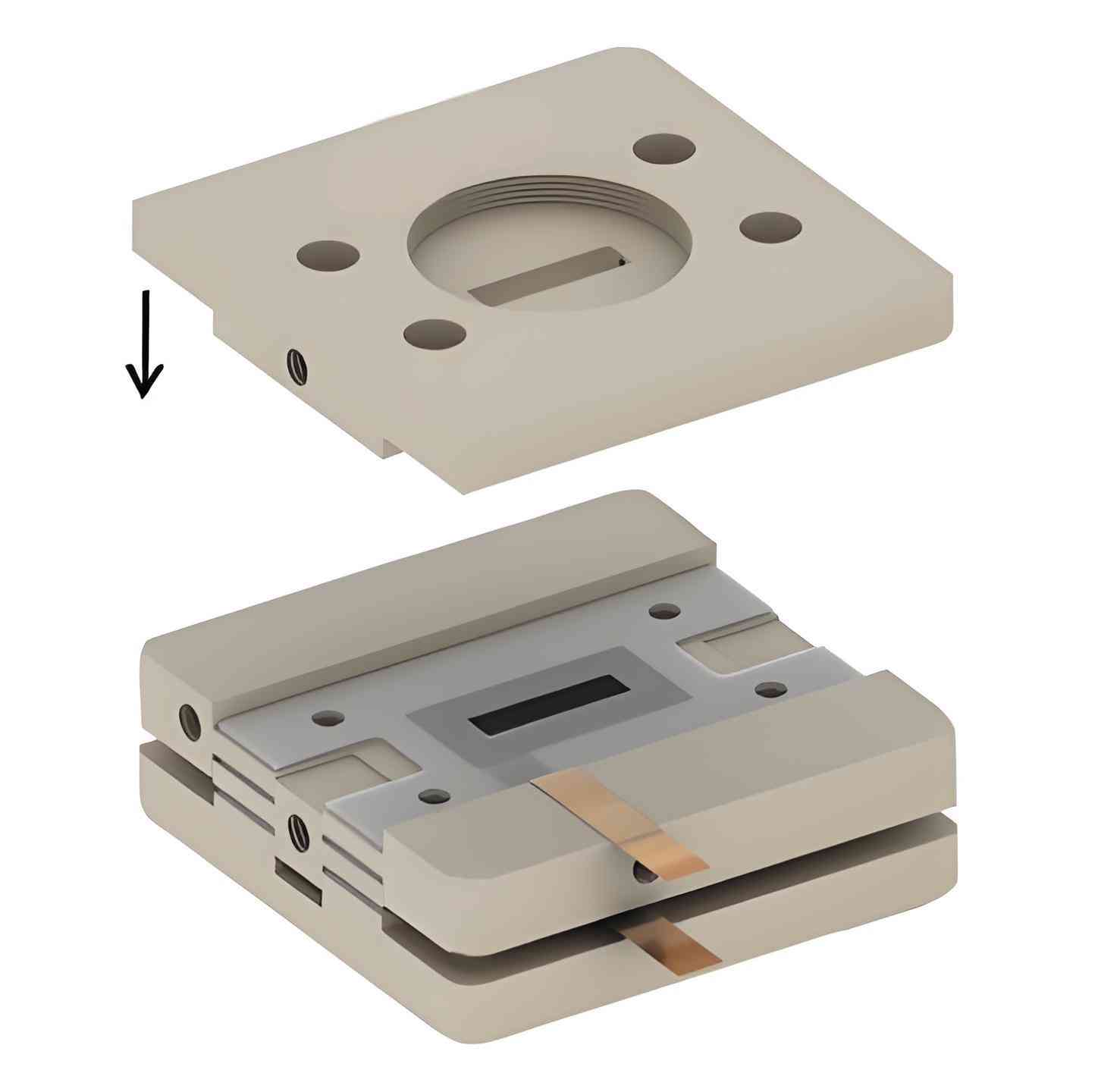

Gas diffusion pool installation steps

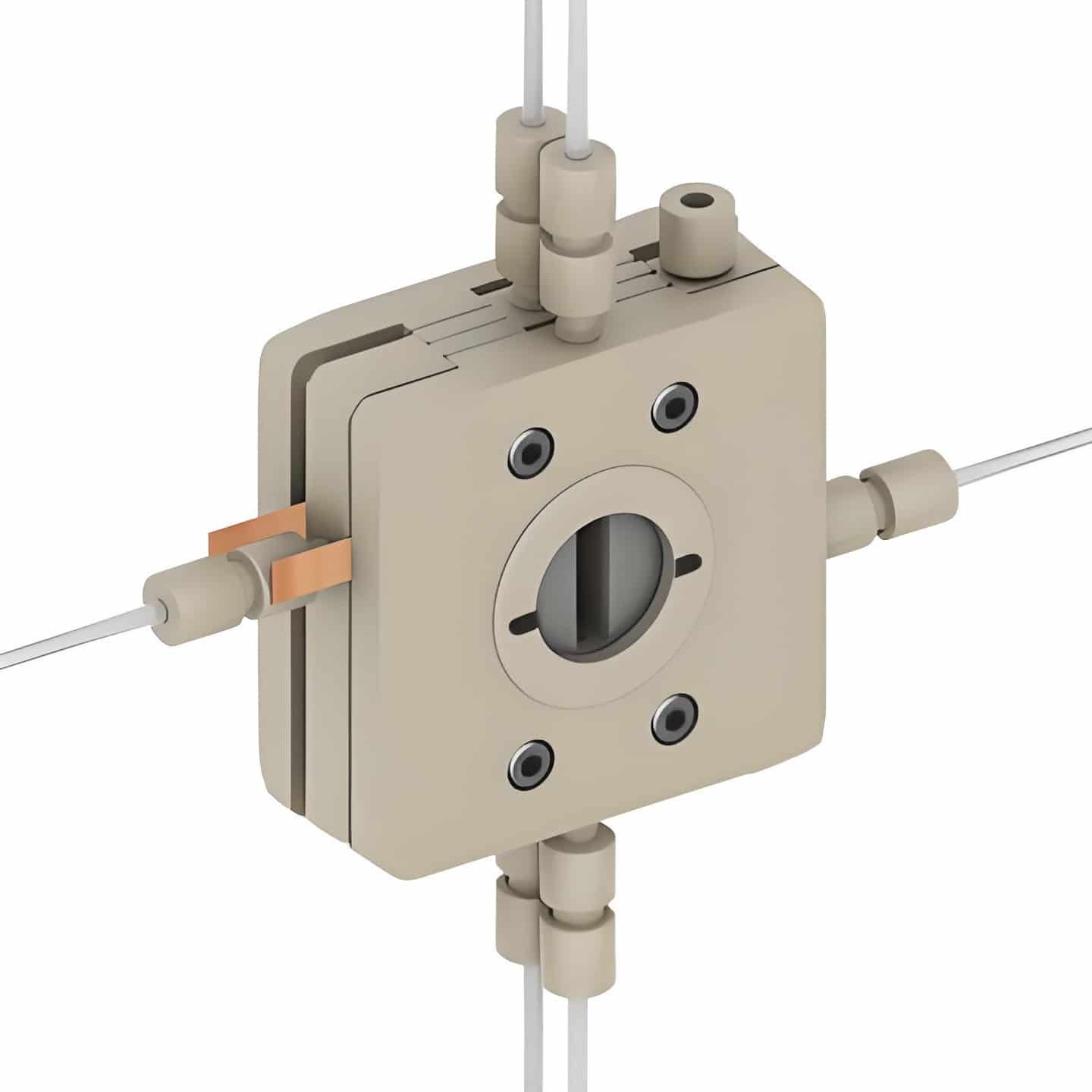

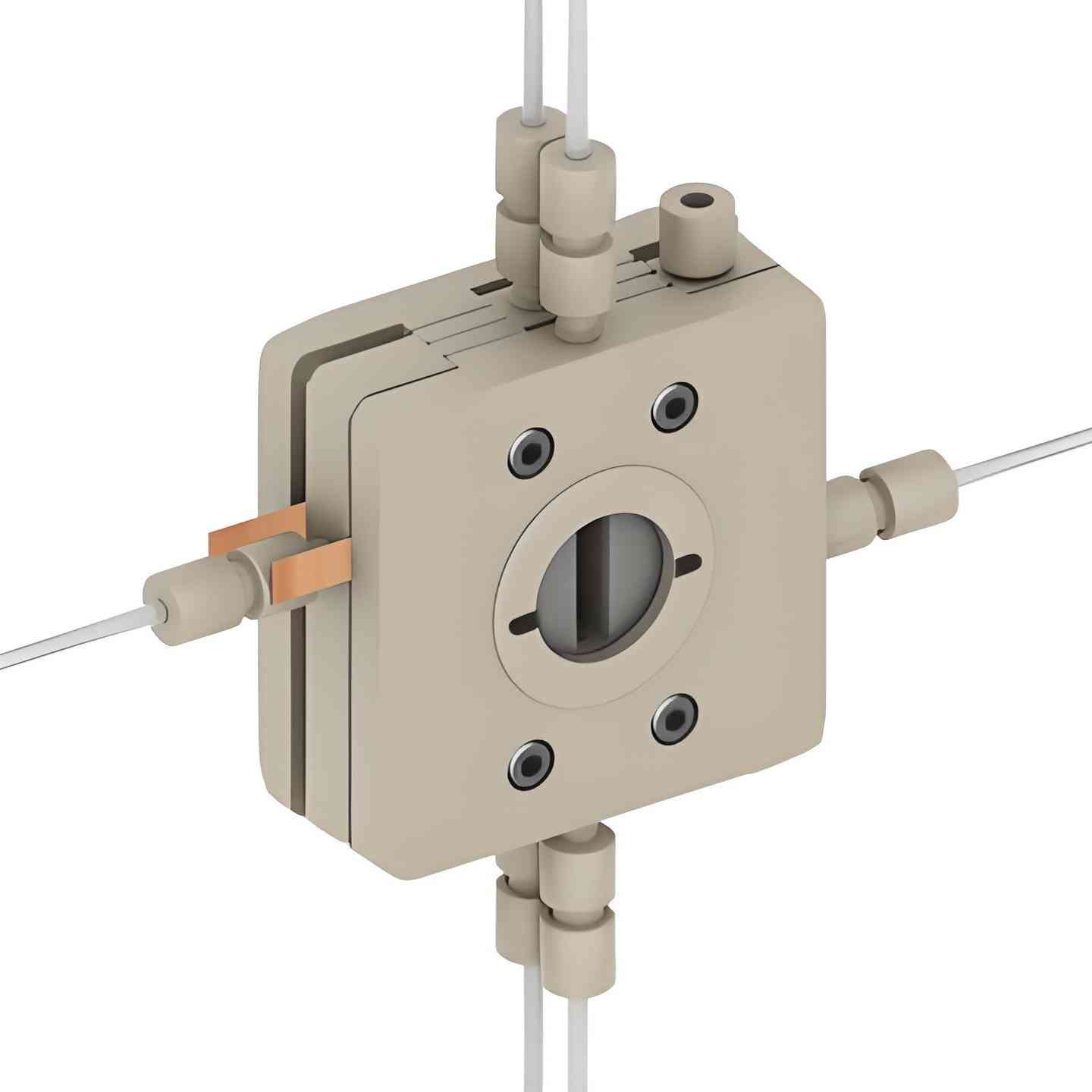

Please assemble this product in the correct order.

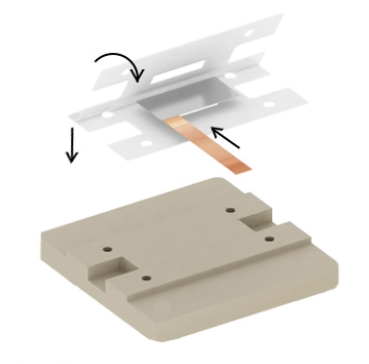

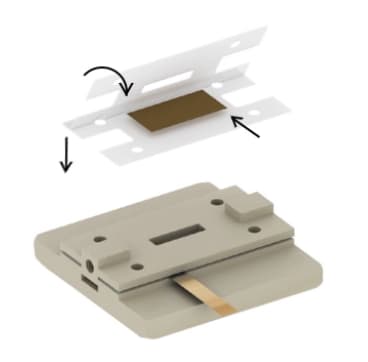

and the anode end plate gasket, anode material, and gasket are placed in sequence.

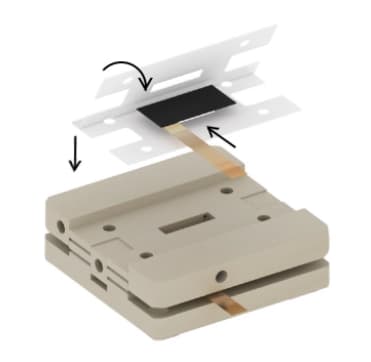

with the catalyst-coated side of the cathode material facing the exchange membrane.

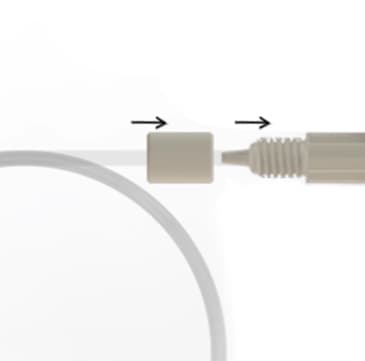

After confirming that the connection is secure and the seal is correct, conduct the experiment.
Advantages and Value for Researchers
This CO2 reduction cell is designed to accelerate your research by delivering precision, versatility, and reliability.
- Versatility: While optimized for CO2RR, the cell's design is equally effective for NRR and ORR studies, making it a multifunctional asset for any electrochemistry lab.
- Reproducible Results: With a well-defined reaction area (default 1cm²) and fixed electrode spacing (3mm), the cell minimizes experimental variables, leading to more consistent and reproducible data.
- Full Customization: At KINTEK, we understand that one size does not fit all. We specialize in providing tailored solutions, from prototypes to large-scale orders. The reaction area, flow field design, and materials can be customized to meet the specific demands of your application.
- Complete Electrochemical Solutions: This cell is part of our one-stop procurement service for electrochemical instruments and consumables. We can recommend and supply compatible electrode packages—such as hydrophobic carbon paper, Ag/AgCl reference electrodes, and platinum counter electrodes—or more specialized options like carbon cloth, Hg/HgO, and iridium-coated titanium electrodes to match your experimental needs.
At KINTEK, we handle the complexities of sourcing and manufacturing so you can focus on your research. Whether you require a standard configuration or a fully customized cell, our team is dedicated to providing a solution that perfectly fits your needs. To discuss your specific experimental setup or to request a custom design, please reach out to us via our Contact Form.
Designed for You
KinTek provide deep custom made service and equipment to worldwide customers, our specialized teamwork and rich experienced engineers are capable to undertake the custom tailoring hardware and software equipment requirements, and help our customer to build up the exclusive and personalized equipment and solution!
Would you please drop your ideas to us, our engineers are ready for you now!
