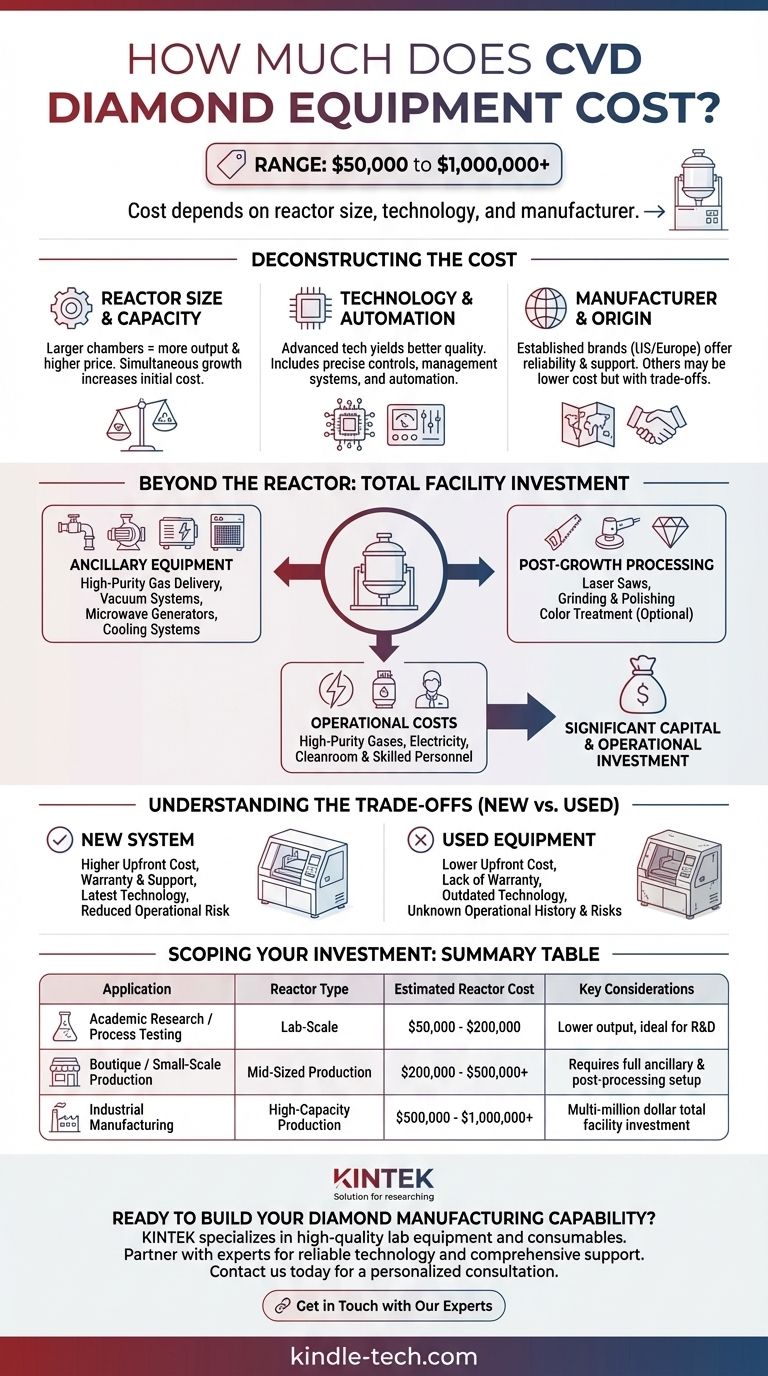

The cost of CVD diamond equipment can vary significantly based on the scale, complexity, and specific requirements of the system. CVD (Chemical Vapor Deposition) diamond equipment is used to grow synthetic diamonds by introducing a mixture of hydrocarbon gas and hydrogen into a controlled environment. The process involves precise control of temperature, pressure, and gas composition to facilitate diamond growth. The equipment typically includes a vacuum chamber, gas delivery systems, plasma generators, and temperature control mechanisms. Prices can range from tens of thousands of dollars for small-scale laboratory setups to several million dollars for industrial-grade systems capable of producing high-quality diamonds in large quantities.
Key Points Explained:
-
Components of CVD Diamond Equipment:
- Vacuum Chamber: This is the core component where the diamond growth occurs. It must maintain a high vacuum to prevent contamination and ensure optimal conditions for diamond formation.
- Gas Delivery System: This system introduces the hydrocarbon gas (usually methane) and hydrogen into the chamber. Precise control of gas flow rates is crucial for consistent diamond growth.
- Plasma Generator: Ionized plasma is used to break down the hydrocarbon gas into atomic carbon, which then deposits onto the diamond seed. The type of plasma (microwave, hot filament, or DC arc) can affect the equipment's cost.
- Temperature Control: The chamber must maintain temperatures up to 800°C. Advanced heating systems and temperature sensors are required to ensure uniform heating and prevent defects in the diamond.
- Control Systems: Modern CVD equipment often includes computerized control systems for monitoring and adjusting parameters like pressure, temperature, and gas flow in real-time.
-
Factors Affecting Cost:
- Scale of Production: Small-scale laboratory equipment designed for research purposes is generally less expensive, costing between $50,000 to $200,000. In contrast, industrial-scale systems capable of producing large quantities of diamonds can cost several million dollars.
- Quality and Purity of Diamonds: Higher-quality diamonds require more precise control over the growth environment, which increases the complexity and cost of the equipment.
- Automation and Advanced Features: Fully automated systems with advanced monitoring and control features are more expensive but offer greater consistency and efficiency.
- Energy Requirements: The energy consumption of the plasma generator and heating systems can significantly impact operational costs, influencing the overall investment in the equipment.
-
Price Range:
- Laboratory-Scale Systems: Typically range from $50,000 to $200,000. These systems are suitable for research and small-scale production.
- Mid-Range Industrial Systems: Cost between $500,000 and $1.5 million. These systems are designed for medium-scale production and offer better control and consistency.
- High-End Industrial Systems: Can cost upwards of $2 million to $5 million. These systems are capable of producing high-quality diamonds in large quantities and often include advanced automation and monitoring features.
-
Operational Costs:
- Gas Consumption: The cost of methane and hydrogen gases used in the process can add up, especially for large-scale production.
- Maintenance: Regular maintenance of the vacuum chamber, plasma generator, and other components is necessary to ensure consistent performance and longevity of the equipment.
- Energy Costs: High energy consumption, particularly for maintaining high temperatures and generating plasma, can be a significant ongoing expense.
-
Market Considerations:
- Demand for Synthetic Diamonds: The growing demand for synthetic diamonds in industries such as electronics, cutting tools, and jewelry is driving investment in CVD diamond equipment.
- Technological Advancements: Innovations in plasma generation, gas delivery, and control systems are continually improving the efficiency and reducing the costs of CVD diamond production.
In summary, the cost of CVD diamond equipment is influenced by the scale of production, the quality of diamonds produced, the level of automation, and ongoing operational expenses. Potential buyers should carefully consider their production needs and budget when selecting the appropriate system.
Summary Table:
| System Type | Price Range | Key Features |
|---|---|---|
| Laboratory-Scale Systems | $50,000 - $200,000 | Suitable for research, small-scale production, basic control systems. |
| Mid-Range Industrial Systems | $500,000 - $1.5M | Medium-scale production, better control, and consistency. |
| High-End Industrial Systems | $2M - $5M+ | Large-scale production, advanced automation, and monitoring features. |
