MPCVD
HFCVD Machine System Equipment for Drawing Die Nano-Diamond Coating
Item Number : MP-CVD-100
Price varies based on specs and customizations
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Application
HFCVD chemical vapor deposition of diamond working principle is: mix a carbon-containing atmosphere with supersaturated hydrogen, activate it in a certain way, and then pass it through a certain atmosphere composition, activation energy, substrate temperature, and the distance between the substrate and the activation source, etc. Under these conditions, a diamond film is deposited on the bottom surface. It is generally believed that the nucleation and growth of diamond films can be divided into three stages:
- Carbon-containing gas and radon gas decompose into carbon, hydrogen atoms and other active free groups at a certain temperature. They combine with the matrix to first form a very thin carbide transition layer.
- Carbon atoms deposit diamond nuclei on the transition layer formed on the substrate.
- The formed diamond crystal nucleus grows into a diamond micro-item under a suitable environment, and then grows into a diamond film.

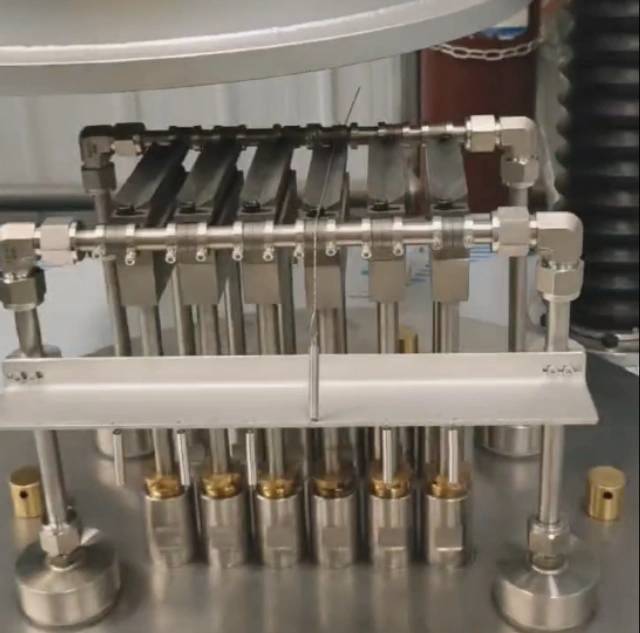

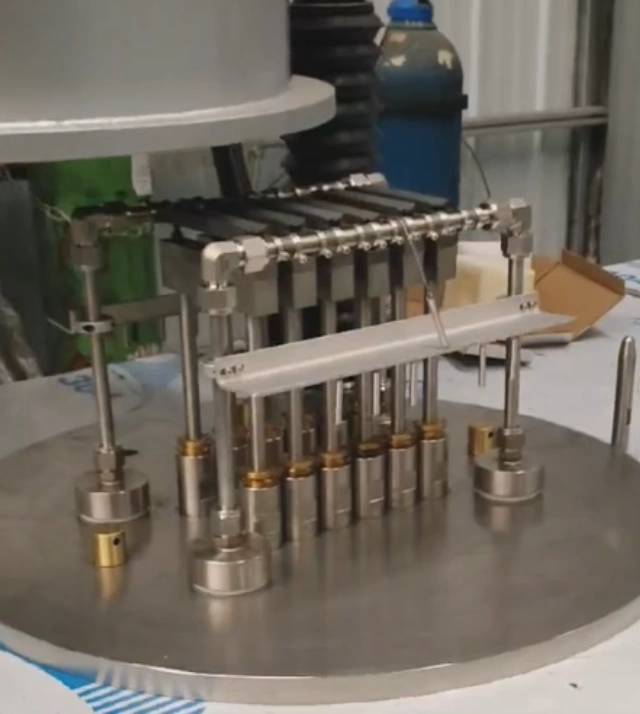

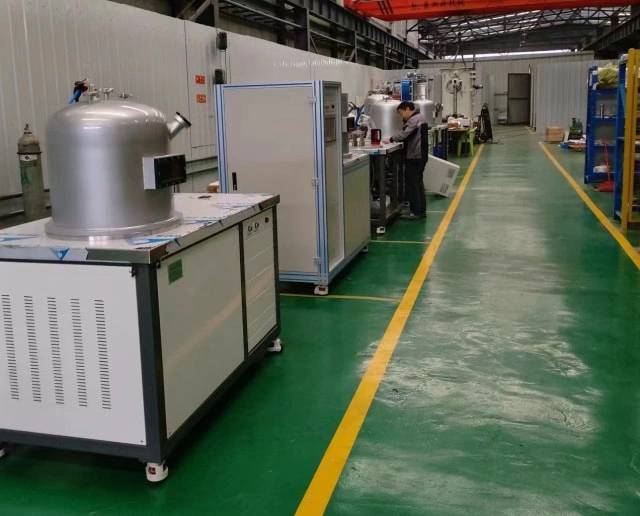

Detail & Parts
Technical specifications
| HFCVD technical composition | ||
| Technical Parameters | Equipment composition | System Configuration |
| Bell Jar: Dia. 500mm, Height 550mm, SUS304 stainless steel chamber; inner stainless steel skin insulation, lifting height is 350mm; | A set of vacuum chamber (bell jar) main body (jacketed water-cooling structure) | Vacuum chamber (bell jar) main body;The cavity is made of high-quality 304 stainless steel; Vertical bell jar: the jacketed water-cooling jacket is installed on the overall periphery of the bell jar. The inner wall of the bell jar is insulated with stainless steel skin, and the bell jar is fixed on the side . Accurate and stable positioning ; Observation window: horizontally arranged in the middle of the vacuum chamber 200mm Observation window, water cooling, baffle, side and upper configuration 45 Degree bevel angle, 50° observation window (observe the same point as the horizontal observation window, and the sample supporting platform); the two observation windows maintain the existing position and size.Bell jar bottom is 20mm higher than the plane of the bench , set cooling; the holes reserved on the plane, such as large valves, air release valves, air pressure measurement, bypass valves, etc., are sealed with metal mesh and reserved for installing electrodes Interface; |
| Equipment table: L1550* W900*H1100mm | One set of drag sample table device (adopting double-axis drive ) | Sample holder device: Stainless steel sample holder (welding water cooling ) 6- position device; it can be adjusted separately, only up and down adjustment, the up and down adjustment range is 25mm, and the left and right shaking is required to be less than 3% when going up and down ( that is, the left and right shaking of rising or falling by 1mm is less than 0.03mm ) , and the sample stage does not rotate when rising or falling. |
| Ultimate vacuum degree: 2.0×10-1Pa ; | A set of vacuum system | Vacuum system: Vacuum system configuration: mechanical pump + vacuum valve + physical bleed valve + main exhaust pipe + bypass; (provided by the vacuum pump supplier), the vacuum valve uses a pneumatic valve; Vacuum system measurement: Membrane pressure. |
| Pressure rise rate : ≤5Pa/h; | Two channels mass flow meter gas supply system | Gas supply system: The mass flow meter is configured by Party B, two-way air intake, the flow rate is controlled by the mass flow meter, after the two-way meeting, it enters the vacuum chamber from the top , and the inside of the air intake pipe is 50mm |
| Sample table movement: up and down range is ± 25m; it is required to shake left and right ratio when up and down by ± 3%; | One set of electrode device (2 channels) | Electrode device: The length direction of the four electrode holes is parallel to the length direction of the support platform, and the length direction is facing the main observation window with a diameter of 200mm . |
| Working pressure: use membrane gauge pressure gauge, measuring range: 0 ~ 10kPa; work constant at 1kPa ~5kPa,the constant pressure value changes plus or minus 0.1kPa; | A set of cooling water system | Cooling water system: The bell jar, electrodes, and bottom plate are all equipped with circulating water cooling pipelines, and are equipped with insufficient water flow alarm device 3.7: control system. Switches, instruments, instruments and power supply for bell lifting, deflation, vacuum pump, main road, bypass, alarm, flow, air pressure, etc. are set on the side of the stand, and are controlled by a 14 -inch touch screen; the equipment has a fully automatic control program without manual intervention, and can store data and call data |
| Air intake position: air intake at the top of the bell jar, and the position of the exhaust port is located directly below the sample holder; | Control system | |
| Control System: PLC controller + 10-inch touch screen | A set of automatic pressure control system (original pressure control valve imported from Germany ) | |
| Inflation system: 2 channels mass flow meter, flow range: 0-2000sccm and 0-200sccm; Pneumatic valve valve | Resistance Vacuum Gauge | |
| 3.1.10 Vacuum pump: D16C vacuum pump | ||
Advantages

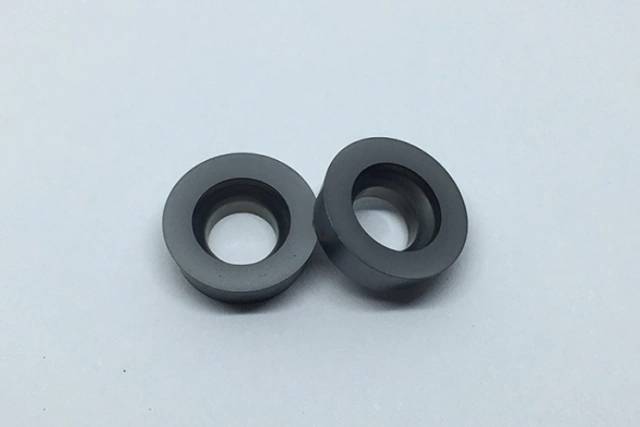

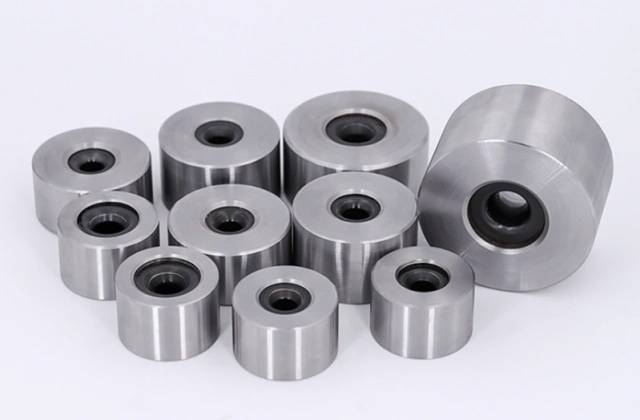

The nano-diamond composite coating drawing die uses cemented carbide (WC-Co) as the substrate, and uses the chemical vapor phase method ( CVD method for short ) to coat the conventional diamond and nano-diamond composite coating on the surface of the inner hole of the mold. And a brand new product obtained after grinding and polishing the coating . The nano-diamond composite coating coated on the surface of the inner hole not only has the characteristics of strong adhesion and wear resistance of the conventional diamond coating, but also has the advantages of flat and smooth surface of the nano-diamond coating, small friction coefficient and easy grinding and polishing. Coating technology not only solves the technical problem of coating adhesion, but also breaks through the bottleneck that the surface of diamond coating is not easy to polish, and removes the obstacles to the industrialization of CVD diamond film.
|
Technical indicators |
Traditional drawing die |
Nano-diamond coated drawing die |
|
Coating Surface Grain Size |
none |
20~80nm |
|
Coating diamond content |
none |
≥99% |
|
Diamond Coating Thickness |
none |
10 ~ 15mm |
|
Surface roughness |
Ra≤0.1mm |
Class A: Ra≤0.1mm Class B: Ra≤0.05mm |
|
Coating drawing die inner hole diameter range |
Ф3 ~ Ф70mm |
Ф3 ~ Ф70mm |
|
Service life span |
Life span depends on working conditions |
6-10 times longer |
|
Surface friction coefficient |
0.8 |
0.1 |
- For the parallelism and straightness of the mold lifting platform of the equipment, our company has specially produced special tooling. The biaxial lifting method is enough to allow the two ends to be raised and lowered by about ±2 wires, so that smaller molds can be made.
- For the tooling of the equipment, our company integrates the location of each company on the tooling, aiming at the tooling and process of the mold. Good tooling and clamping, stable and reliable, high precision, easy to operate.
- For the shut-off valve of the equipment, other manufacturers use baffle valves, which cannot be adjusted linearly (that is, the gap increases quickly as soon as it is opened). Our company designs it according to the principle of the shut-off valve and stable pressure control, so that the shut-off gap can be linearly adjusted to achieve Stable pressure control;
- The fully automatic control system automatically controls the pressure according to computer algorithms; it can reduce the operator's randomness and make the process more confidential. It saves labor, and the consistency of mold quality of the same specifications is more ideal;
- For the stability of the lifting bell jar, our company uses self-lubricating bearings, which make the rotation more flexible and free of jamming. Basic process, diamond coating can be made according to each customer's diamond coating process.
Warnings
Operator safety is the top important issue! Please operate the equipment with cautions. Working with inflammable& explosive or toxic gases is very dangerous, operators must take all necessary precautions before starting the equipment. Working with positive pressure inside the reactors or chambers is dangerous, operator must fellow the safety procedures strictly. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
