What is Atomic Layer Deposition for Nanotechnology? 5 Key Points Explained

Atomic layer deposition (ALD) is a sophisticated technique used in nanotechnology for the precise deposition of ultra-thin films, typically a few nanometers thick.

This method is characterized by its high level of uniformity, conformality, and self-limiting nature, which allows for controlled growth of thin films layer by layer.

ALD operates by sequentially introducing and reacting precursor gases with the substrate's surface, ensuring that each layer is complete before the next is applied.

This process is crucial in various fields including semiconductor engineering, micro-electromechanical systems (MEMS), catalysis, and the fabrication of microelectronics.

What is Atomic Layer Deposition for Nanotechnology? 5 Key Points Explained

What is Atomic Layer Deposition for Nanotechnology? 5 Key Points Explained

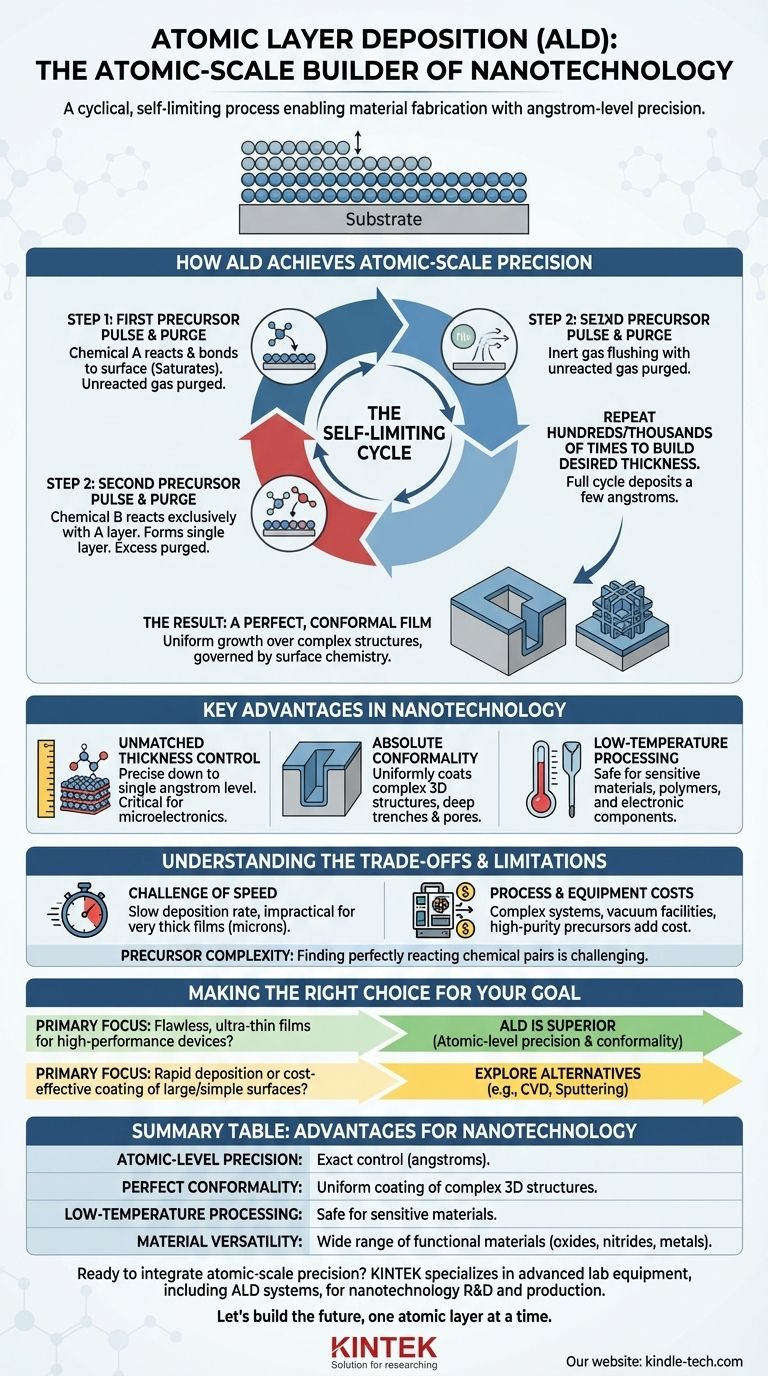

1. Mechanism of ALD

ALD involves the use of two or more precursor gases that are introduced into the reaction chamber one at a time.

Each precursor reacts with the surface of the substrate until all reactive sites are occupied, at which point the reaction naturally stops.

This self-limiting characteristic ensures that each layer is uniformly deposited, and the process is repeated for each subsequent layer.

The precursors are pulsed alternatively, never co-existing in the chamber simultaneously, which helps in maintaining the purity and integrity of the film.

2. Advantages of ALD

Precision and Control: ALD provides an exceptional level of control over the thickness of the deposited films, down to the atomic level.

This precision is crucial for applications where even minor variations in thickness can significantly impact performance.

Conformality: The ability of ALD to deposit uniform films on complex geometries and high aspect ratio structures makes it invaluable in industries where devices have intricate designs.

Versatility: ALD can be used on a wide range of substrates and for various applications, from microelectronics to biomedical devices.

3. Applications of ALD

ALD is extensively used in the semiconductor industry, particularly in the manufacturing of high-performance complementary metal-oxide-semiconductor (CMOS) transistors.

It is also crucial in the production of magnetic recording heads, MOSFET gate stacks, DRAM capacitors, and nonvolatile ferroelectric memories.

Beyond electronics, ALD is used to modify the surface properties of biomedical devices, enhancing their compatibility and functionality when implanted in the body.

4. Evolution and Distinction of ALD

Although ALD is technically a subset of chemical vapor deposition (CVD) methods, its unique capabilities have established it as a distinct and essential technique in the field of nanotechnology.

Its ability to deposit nano-thin films directly onto nanoparticles (known as particle ALD) further expands its applications and demonstrates its versatility and importance in modern technology.

5. Summary

In summary, atomic layer deposition is a pivotal technique in nanotechnology, offering unparalleled control and precision in the deposition of thin films.

Its applications span across various high-tech industries, highlighting its critical role in advancing modern technology and materials science.
