What is the temperature of the burnout oven? Master the Multi-Stage Cycle for Flawless Castings

The temperature of a burnout oven is not a single value, but rather a carefully controlled multi-stage cycle. This temperature schedule is designed to completely eliminate the original pattern (wax or resin) and perfectly cure the investment mold without causing it to crack or warp.

A successful burnout is not about hitting one specific temperature. It's about executing a precise temperature schedule with controlled heating rates (ramps) and holding times (soaks) that are specifically tailored to your investment material, pattern type, and flask size.

Why a Multi-Stage Cycle is Essential

The core purpose of a burnout cycle is to accomplish two distinct goals in sequence. First, it must melt and vaporize the pattern material. Second, it must cure the investment mold to its maximum strength, preparing it to receive molten metal.

Stage 1: Initial Ramp and Pattern Elimination

The first stage focuses on removing the bulk of the wax or resin pattern at a low temperature. The oven's temperature is ramped up slowly, often around 100-150°C per hour (200-300°F/hr).

This slow ramp prevents the pattern from expanding too quickly, which would crack the relatively fragile investment. It also allows trapped moisture to escape as steam without explosive force. This phase typically holds at a temperature between 150°C and 300°C (300°F and 575°F) for several hours.

Stage 2: The High-Temperature Burnout

Once the bulk of the pattern is gone, the temperature is ramped up more aggressively to a much higher peak. This is the true "burnout" phase.

The goal here is to hold the mold at a high temperature, typically 730°C to 760°C (1350°F to 1400°F), for several hours. This extended hold ensures that any residual carbon from the pattern is completely oxidized and eliminated, leaving behind an impeccably clean mold cavity.

Stage 3: Cooling to Casting Temperature

Crucially, the peak burnout temperature is almost never the final casting temperature. After the high-temperature hold, the oven is programmed to cool the mold down to the optimal temperature for receiving the molten metal.

This casting temperature is dictated by the metal being used and the intricacy of the part. For example, a silver piece might be cast into a mold at 480°C (900°F), while platinum requires a much hotter mold, perhaps 870°C (1600°F).

Key Factors That Dictate Your Burnout Schedule

There is no universal burnout schedule. The correct temperature profile is a direct function of your specific materials and equipment.

The Investment Material

Every brand and type of investment powder has a unique chemical composition and thermal expansion curve. Gypsum-bonded investments (for lower-temp metals) and phosphate-bonded investments (for high-temp alloys) have vastly different requirements. Always use the schedule provided by the investment manufacturer as your starting point.

The Pattern Material (Wax vs. Resin)

Traditional injection wax melts cleanly at low temperatures. However, 3D printed photopolymer resins behave very differently. Resins tend to expand more significantly before breaking down and can leave behind more stubborn ash. They often require slower initial ramps and longer, hotter holds at the peak temperature to achieve a clean burnout.

Flask Size and Oven Load

Larger, heavier flasks require more time to heat through evenly. A fast ramp rate on a large flask will create a large temperature difference between the outside and inside of the mold, which is a primary cause of cracking. If you have a full oven load or very large flasks, you must slow down your ramp rates.

Common Pitfalls to Avoid

Understanding what can go wrong provides insight into why the correct temperature schedule is so critical.

Heating Too Quickly

This is the most common cause of cracked molds. The rapid expansion of the pattern or the sudden conversion of moisture to steam exerts immense pressure on the investment walls, causing them to fail.

Insufficient Burnout

If the peak temperature is too low or the hold time is too short, carbon residue will remain inside the mold cavity. This residue causes porosity, poor surface finish, and contaminated castings.

Incorrect Casting Temperature

If the mold is too cold when you cast, the metal may solidify before completely filling the cavity, resulting in an incomplete part. If the mold is too hot, it can lead to investment breakdown, surface roughness, and gas porosity in the final casting.

Making the Right Choice for Your Project

To achieve consistent, high-quality castings, you must move from thinking about a single "burnout temperature" to designing a complete "burnout schedule."

• If your primary focus is casting with standard wax and commercial investment: Always begin with the detailed burnout schedule provided by the investment manufacturer. This is your most reliable guide.
• If your primary focus is casting 3D printed resin patterns: Use the burnout schedule recommended by the resin manufacturer, as they have formulated it specifically to burn out cleanly.
• If you are experiencing defects: A cracked mold suggests your initial ramp rate is too fast. Porosity or a rough surface suggests you need a longer or hotter hold at your peak temperature.

Ultimately, mastering your burnout schedule is the key to transforming a pattern into a perfectly cast object.

Summary Table:

Burnout Stage	Key Temperature Range	Purpose
Initial Ramp & Pattern Elimination	150°C to 300°C (300°F to 575°F)	Melt/vaporize bulk pattern, allow moisture escape
High-Temperature Burnout	730°C to 760°C (1350°F to 1400°F)	Oxidize residual carbon, ensure clean mold cavity
Cooling to Casting	Varies by metal (e.g., 480°C for silver)	Prepare mold at optimal temperature for metal pour

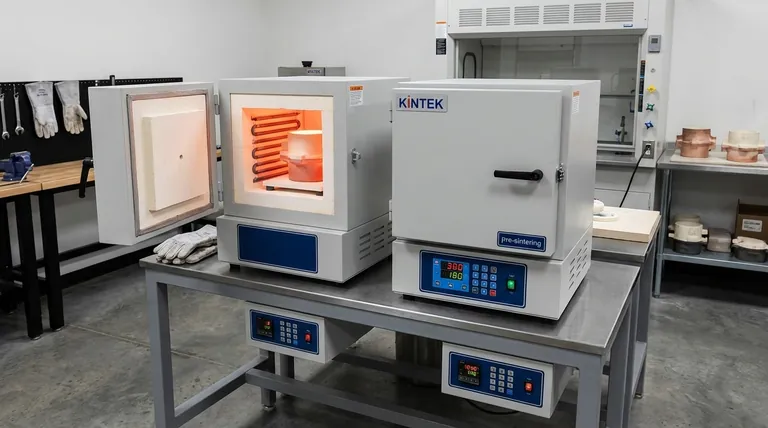

Achieve consistent, high-quality castings with the right equipment. Mastering your burnout schedule is crucial, and it starts with a reliable oven. KINTEK specializes in precision lab equipment, including burnout ovens designed for controlled multi-stage cycles. Whether you work with traditional wax or 3D printed resins, our solutions help you eliminate defects like cracking and porosity. Contact us today to find the perfect oven for your investment casting needs and transform your patterns into perfect objects. Get in touch with our experts
