Why are tungsten carbide grinding balls preferred for sulfide electrolytes? Boost Your Mechanochemical Synthesis

Tungsten carbide (WC) is the superior grinding media for this application because its exceptional density and hardness generate significantly higher impact kinetic energy than ordinary ceramic balls. This intense energy is required not just for mixing, but to drive the high-energy mechanochemical reactions that synthesize sulfide electrolytes, while simultaneously preventing contamination through superior wear resistance.

The Core Takeaway In sulfide solid-state electrolyte preparation, the grinding ball is a reactor, not just a mixer. Tungsten carbide provides the necessary kinetic force to accelerate chemical synthesis and ensure phase purity, a threshold that lighter ceramic materials often fail to meet.

The Physics of High-Energy Milling

Density and Impact Force

The primary advantage of tungsten carbide is its extreme density.

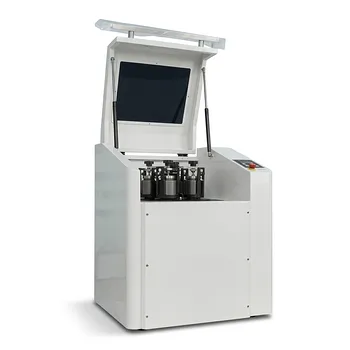

In a planetary ball mill, the grinding media is subjected to centrifugal forces. Because tungsten carbide balls are significantly heavier than ceramic alternatives, they carry much greater momentum. Upon collision, this mass translates into high impact kinetic energy, delivering a powerful mechanical blow to the precursor materials.

Driving Mechanochemical Reactions

Preparing sulfide electrolytes involves more than physical blending; it requires a mechanochemical reaction.

The precursors, such as Lithium Sulfide (Li2S) and Phosphorus Pentasulfide (P4S10), must chemically react to form a new compound. The high-energy impacts from tungsten carbide balls break chemical bonds and facilitate these reactions much faster than lighter media. This significantly shortens the overall synthesis time.

Material Purity and Stability

Hardness and Wear Resistance

Sulfide solid-state electrolytes are highly sensitive to impurities.

Ordinary ceramic balls are softer and more prone to abrasion during the violent milling process. As they wear down, they introduce ceramic dust into the mixture, which contaminates the electrolyte. Tungsten carbide is extremely hard, offering superior wear resistance that minimizes the introduction of foreign impurities.

Ensuring Phase Purity

The quality of the final electrolyte depends heavily on the initial milling.

When precursors are processed with high-energy WC media, the resulting mixture is more uniform and has a finer particle size. This creates optimal conditions for subsequent processing (such as microwave synthesis), reducing unreacted residuals like Li2S and ensuring high phase purity in the final product.

Common Pitfalls to Avoid

The Risk of Insufficient Energy

Using ordinary ceramic balls often leads to "under-milling."

Because ceramics lack the mass of tungsten carbide, they may not generate enough energy to fully trigger the mechanochemical reaction. This can leave you with a mixture of unreacted precursors rather than a synthesized precursor, compromising the performance of the final battery cell.

Contamination Trade-offs

While tungsten carbide is wear-resistant, no media is perfectly imperishable.

It is critical to monitor the milling jars for any signs of media degradation over long periods. However, compared to the rapid degradation of standard ceramics, tungsten carbide remains the safest bet for maintaining the strict purity standards required for sulfide materials.

Making the Right Choice for Your Project

Selecting the right grinding media is a balance of reaction efficiency and material purity.

• If your primary focus is rapid synthesis: Choose tungsten carbide to maximize kinetic energy and significantly shorten reaction times.
• If your primary focus is material purity: Choose tungsten carbide to minimize the risk of abrasive wear and prevent the introduction of ceramic contaminants.
• If your primary focus is reaction completeness: Choose tungsten carbide to ensure precursors like Li2S and P4S10 react fully, reducing residual impurities.

For sulfide solid-state electrolytes, high-density media is not a luxury; it is a necessity for achieving the kinetic energy required for successful synthesis.

Summary Table:

Feature	Tungsten Carbide (WC)	Ordinary Ceramic Balls
Density	Very High (~15.6 g/cm³)	Lower (~3.9 g/cm³ for Alumina)
Impact Energy	High Kinetic Energy (Superior)	Low Kinetic Energy (Insufficient)
Primary Role	Mechanochemical Reactor	Basic Material Mixer
Wear Resistance	Exceptional; Minimal Purity Loss	Moderate; Risk of Abrasion
Best For	Sulfide Synthesis (Li2S/P4S10)	General Laboratory Mixing
