Silicon Carbide SiC Thermal Heating Elements for Electric Furnace

Introduction

Silicon carbide (SiC) heating elements are high-temperature ceramic components used in electric furnaces, renowned for their high electrical conductivity and resistance to extreme temperatures. Made of silicon and carbon, these elements are formed through a recrystallization process at temperatures exceeding 2150°C, resulting in a long service life and high energy efficiency. SiC heaters are versatile and available in various configurations for applications ranging from 600°C to 1600°C, making them an ideal choice for industries such as metallurgy, ceramics, and semiconductor manufacturing.

Applications

Silicon carbide heating elements are widely used in machinery, metallurgy, light chemical industry, ceramics, semiconductors, analytical testing, and scientific research. They serve as electric heating elements for various electric furnaces, such as tunnel kilns, roller hearth kilns, glass kilns, vacuum furnaces, muffle furnaces, smelting furnaces, and various other heating equipment. Key applications for silicon carbide heating elements are as follows:

• Metallurgy: Silicon carbide heating elements are crucial in the production and processing of metals due to the high temperatures required for smelting and refining.
• Ceramics: In the ceramics industry, these elements are used in the firing and sintering processes, ensuring uniform heating and a high-quality end product.
• Glassmaking: Silicon carbide heating elements play a vital role in the melting and forming of glass, which requires sustained high temperatures.
• Chemical Processing: They are used in chemical reactors and processing equipment that require a controlled, high-temperature environment.
• Laboratory Furnaces: In scientific research and analytical testing, SiC elements are integral to laboratory furnaces used for a variety of high-temperature experiments and tests.
• Semiconductor Manufacturing: The precise temperature control provided by SiC heating elements is essential for the production of semiconductors and other electronic components.
• Environmental Testing: These elements are used in environmental test chambers to simulate extreme temperature conditions for product durability testing.
• Food Processing: In the food industry, silicon carbide heating elements are used in ovens and other equipment that requires high-temperature processing.

Details and Parts

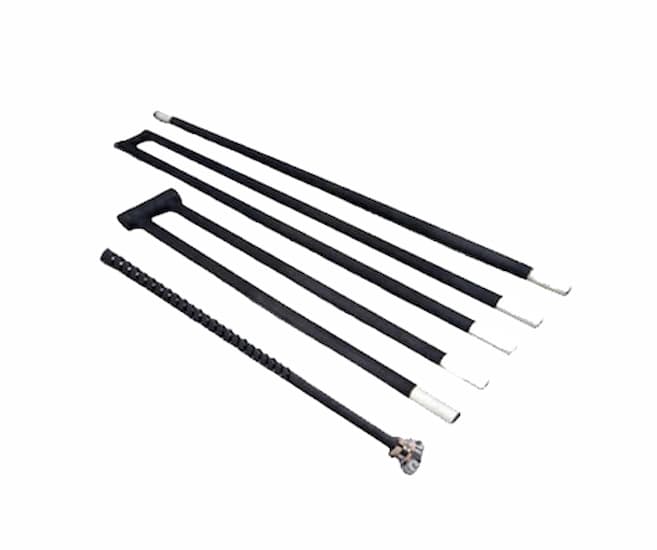

Different Types of Silicon Carbide (SiC) Heating Elements

Advantages

Silicon carbide (SiC) heating elements offer numerous advantages, making them ideal for a variety of heating applications. These elements are made of a hard ceramic compound called silicon carbide, which offers high conductivity and exceptional durability. Here are some of the key advantages of using SiC heating elements:

• High-Temperature Performance: Silicon carbide heating elements operate efficiently in a temperature range of 600°C to 1600°C, making them ideal for high-temperature furnaces and processes.
• Energy Efficiency: These elements have low resistance at the hot end, which reduces wasted heat and improves the overall efficiency of the heating system, saving energy.
• Long Service Life: Due to their robust ceramic construction, silicon carbide heating elements offer a longer service life than other types of heating elements, especially in corrosive environments.
• Precise Temperature Control: The ability to precisely control and maintain temperature is crucial in many industrial processes. Silicon carbide elements provide more precise, controlled heat, improving product quality and consistency.
• Safety and Environmental Benefits: Using silicon carbide heating elements eliminates the need for fume exhaust, improving the safety and environmental impact of heating processes. This also contributes to a more comfortable working environment.
• Design Versatility: SiC heating elements are available in eight different basic configurations, allowing them to be customized for specific applications, extending their service life and effectiveness, especially in challenging environments.
• Cost-Effectiveness: Although initially more expensive than other heating elements, such as MoSi2, SiC elements offer long-term savings due to their energy efficiency and extended service life, thereby reducing overall operating costs.
• Enhanced Power Radiance: Silicon carbide heating elements can radiate higher power, which is beneficial for processes requiring rapid heating or high-temperature stability.

Features

The continuous-duty electrically heated pyrolysis furnace is a precision device designed specifically for continuous pyrolysis processes. It incorporates a range of features that enhance its functionality while ensuring operational safety, efficiency, and longevity. Key features include an extended service life, an internal rotation mechanism for continuous operation, and an advanced control system for safe and efficient management of the pyrolysis process.

• Extended Operating Life: The furnace utilizes indirect hot air to heat the reactor, significantly reducing damage and extending the equipment's service life.
• Internal Rotation for Optimal, Constant Operation: Unlike external rotating systems that require frequent seal material replacement, this furnace utilizes internal rotation technology.
• Advanced Control and Monitoring System: The furnace is equipped with an integrated control loop for real-time monitoring of key parameters. Additionally, improved burner management and automatic decoking further enhance furnace reliability and safety.

Characteristics

Physical Properties

Chemical Properties

Silicon carbide heating elements are chemically stable and resistant to acids. However, alkaline substances can attack them at high temperatures.

Long-term use of silicon carbide components above 1000°C will cause the following effects when exposed to oxygen and water vapor:

① $SiC + 2O_2 \rightarrow SiO_2 + CO_2$ ② $SiC + 4H_2O = SiO_2 + 4H_2 + CO_2$

This gradually increases the $SiO_2$ content in the component, slowly increasing its resistance and leading to aging. Excessive water vapor accelerates SiC oxidation. The $H_2$ generated in reaction ② combines with $O_2$ in the air to form $H_2O$, creating a vicious cycle that shortens component life. Hydrogen ($H_2$) can reduce the mechanical strength of the component. Nitrogen ($N_2$) prevents SiC oxidation below 1200°C. However, above 1350°C, it reacts with SiC, decomposing it to produce chlorine ($Cl_2$), which completely decomposes it.

How to specify the model number of a silicon carbide (SiC) heating element?

The model number for a silicon carbide (SiC) heating element is specified based on its dimensions and resistance.

• OD: Outer Diameter
• HZ: Hot Zone Length
• CZ: Cold Zone Length
• OL: Total Length

For example: An SCR type with OD = 8mm, HZ = 100mm, CZ = 130mm, OL = 230mm, and a resistance of 4.46 ohms would be specified as: 8*100*230/4.46 ohms.

Available Ranges of SiC Heating Elements

Installation Precautions

Click here to view precautions for installing silicon carbide rods.

Warnings

Operator safety is the top important issue! Please operate the equipment with cautions. Working with inflammable& explosive or toxic gases is very dangerous, operators must take all necessary precautions before starting the equipment. Working with positive pressure inside the reactors or chambers is dangerous, operator must fellow the safety procedures strictly. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
