What is the Purpose of a Graphite Furnace? 5 Key Points to Know

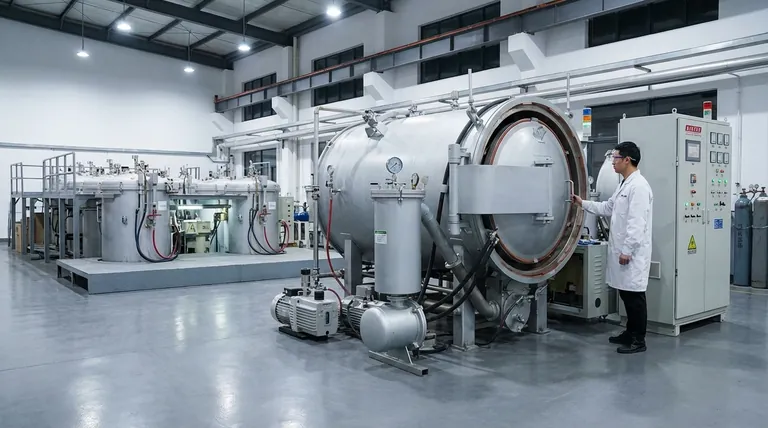

A graphite furnace is a specialized piece of equipment used to convert carbonaceous materials into graphite through a high-temperature process in an inert atmosphere.

This conversion is essential for producing graphite with its unique properties, such as high thermal conductivity, low thermal expansion, and chemical inertness.

These properties make graphite crucial for various industrial applications.

What is the Purpose of a Graphite Furnace? 5 Key Points to Know

What is the Purpose of a Graphite Furnace? 5 Key Points to Know

1. Conversion of Carbonaceous Materials

Graphite furnaces are designed to subject materials like petroleum coke or coal tar pitch to extremely high temperatures.

These temperatures typically range from 2500 to 3000 degrees Celsius.

The intense heat, combined with an inert atmosphere, facilitates the transformation of these carbon-rich materials into graphite.

The inert atmosphere is crucial as it prevents oxidation and other chemical reactions that could alter the desired properties of the graphite.

2. Unique Properties of Graphite

The high-temperature process in graphite furnaces not only transforms the raw materials into graphite but also enhances specific properties.

Graphite produced through this method exhibits high thermal conductivity, which makes it ideal for applications requiring efficient heat transfer.

Its low thermal expansion ensures dimensional stability under varying temperatures.

Its chemical inertness makes it resistant to corrosion and degradation, suitable for harsh environments.

3. Industrial Applications

The graphite produced in these furnaces is used in various industries including metallurgy, electronics, and aerospace.

In metallurgy, graphite is used for making electrodes and crucibles, which are essential in metal processing.

In electronics, its thermal and electrical properties make it suitable for components in electronic devices.

In aerospace, graphite's strength and resistance to high temperatures are utilized in structural components.

4. Types of Graphite Furnaces

Graphite Tube Furnace

This type uses graphite tubes to heat samples or workpieces.

The fast heating speed and good temperature uniformity make it suitable for graphitization treatment, graphene growth, and carbon nanotubes preparation.

Graphite Resistance Furnace

This furnace uses a graphite resistor to generate a high-temperature environment.

It is known for its fast heating speed, good temperature uniformity, and high temperature controllability, making it ideal for graphitization, heat treatment, and sintering.

5. Advantages of Graphite Heating Elements

Graphite heating elements are increasingly used in vacuum furnaces due to their durability, resistance to thermal shock, and lower thermal mass compared to previous generation elements.

These characteristics make them more robust and efficient in various heat treatment processes like hardening and brazing.
