What is the use of electron beam evaporation? Achieve High-Purity Thin Films for Demanding Applications

At its core, electron beam evaporation is a high-precision manufacturing technique used to create exceptionally pure and high-performance thin films. It is a form of physical vapor deposition (PVD) where a focused beam of high-energy electrons vaporizes a source material inside a vacuum, which then condenses onto a substrate to form a coating. This method is critical for applications demanding materials with very high melting points, such as in advanced optics, semiconductors, and aerospace components.

The primary reason to use electron beam evaporation is its ability to deposit materials that simpler methods cannot handle. By using a focused electron beam, it achieves extremely high, localized temperatures, enabling the vaporization of refractory metals and dielectric ceramics while maintaining high film purity and precise control over the coating's thickness and properties.

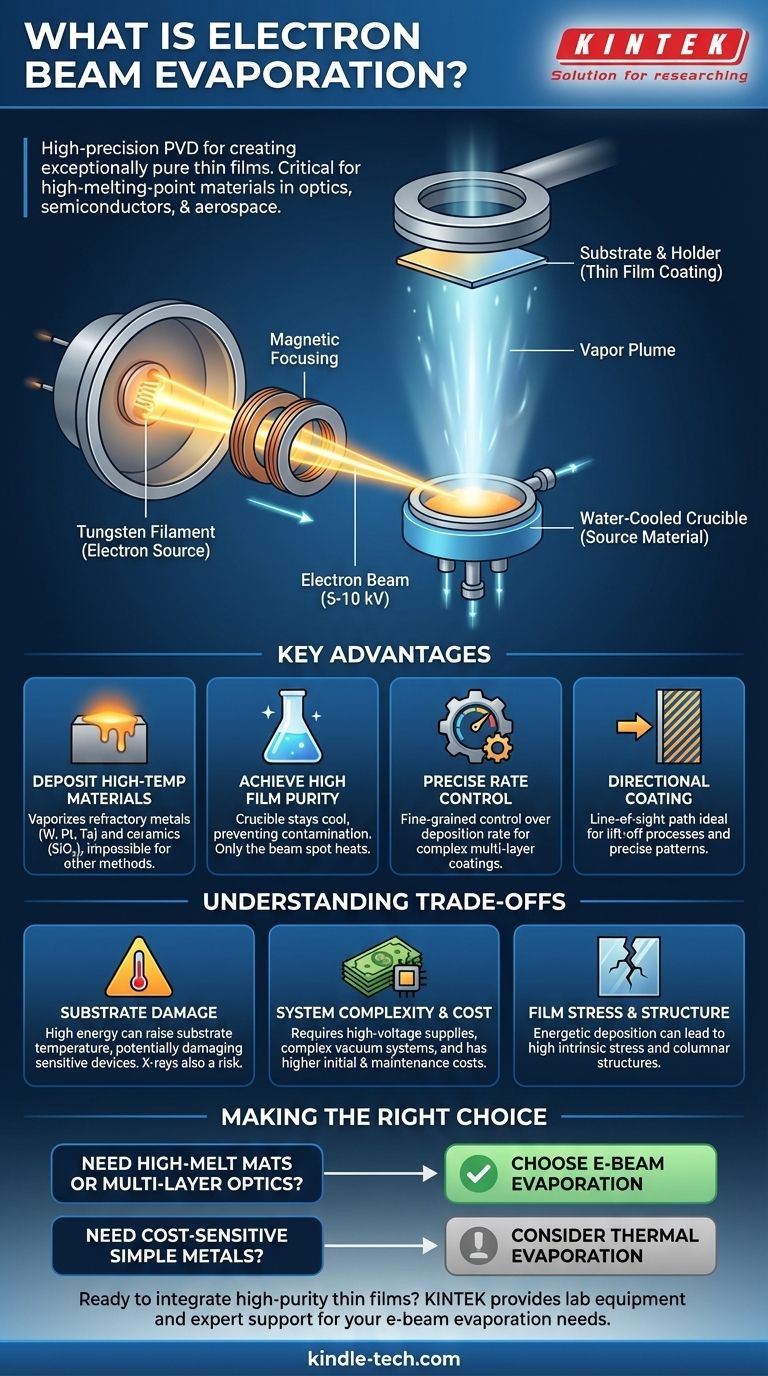

How Does E-Beam Evaporation Work?

Electron beam evaporation is a sophisticated process that relies on fundamental physics to create thin films with remarkable precision. The entire process takes place within a high-vacuum chamber to ensure the purity of the final film.

The Electron Source

A high electrical current is passed through a tungsten filament. This causes the filament to heat up intensely, leading to the thermionic emission of electrons—essentially "boiling" electrons off the metal surface.

The Beam and Target

These free electrons are then accelerated by a high voltage, typically between 5 and 10 kilovolts (kV), giving them significant kinetic energy. A magnetic field is used to precisely focus these high-energy electrons into a narrow beam, directing it toward the source material held in a water-cooled crucible.

The Deposition Process

When the electron beam strikes the source material, the electrons' kinetic energy is instantly converted into intense thermal energy. This localized heating causes the material to rapidly evaporate or sublimate into a vapor. This vapor then travels in a straight, line-of-sight path until it condenses on the cooler substrate, forming a dense and uniform thin film.

Key Advantages Driving Its Use

The "why" behind choosing e-beam evaporation lies in a set of distinct advantages over other deposition techniques, particularly standard thermal evaporation.

Depositing High-Temperature Materials

This is the most significant advantage. Standard thermal evaporators heat an entire boat or crucible, limiting them to materials with lower melting points. E-beam's focused energy can vaporize materials with extremely high melting points, such as platinum, tungsten, tantalum, and ceramics like silicon dioxide (SiO₂), which are impossible to deposit otherwise.

Achieving High Film Purity

Because the source material is held in a water-cooled crucible, only the small spot hit by the electron beam gets superheated. This prevents contamination from the crucible itself, resulting in films of exceptionally high purity compared to methods that heat the entire container.

Enabling Precise Control

The intensity of the electron beam can be adjusted with high precision, allowing for fine-grained control over the deposition rate. This control is critical for creating complex optical coatings or advanced electronic structures where film thickness and density directly determine performance.

Creating Directional Coatings (Line-of-Sight)

The vapor from e-beam evaporation travels in a straight line to the substrate. This directional or "anisotropic" deposition is crucial for semiconductor manufacturing processes like lift-off, where material must be deposited at the bottom of a patterned trench without coating the sidewalls.

Understanding the Trade-offs

No technique is perfect. To make an informed decision, it is crucial to understand the limitations of electron beam evaporation.

Potential for Substrate Damage

The high energy involved in the process isn't limited to the source material. Stray electrons and the heat of condensation can raise the temperature of the substrate, which can damage sensitive materials or devices. Furthermore, the high-energy electrons can generate X-rays, which may degrade certain electronic components.

System Complexity and Cost

E-beam evaporation systems are significantly more complex and expensive than simpler thermal evaporators. They require high-voltage power supplies, sophisticated magnetic focusing systems, and robust vacuum equipment, leading to higher initial investment and maintenance costs.

Film Stress and Structure

The energetic nature of the deposition can sometimes lead to high intrinsic stress within the deposited film, which may cause adhesion problems or mechanical failure. The resulting film structure can also be highly columnar, which may not be desirable for all applications.

Making the Right Choice for Your Application

Selecting the correct deposition method depends entirely on your material requirements, performance goals, and budget.

• If your primary focus is depositing high-melting-point materials like refractory metals or ceramics: Electron beam evaporation is the definitive and often only choice.
• If your primary focus is creating multi-layer optical coatings with precise refractive indices: The rate control and purity of e-beam evaporation are essential for high performance.
• If your primary focus is fabricating patterned metal layers using lift-off: The directional nature of e-beam evaporation is a significant advantage.
• If your primary focus is cost-sensitive deposition of simple metals like aluminum or gold: A simpler and less expensive thermal evaporation system may be a more practical solution.

By understanding its unique capabilities and trade-offs, you can leverage electron beam evaporation to fabricate advanced films that are otherwise impossible to create.

Summary Table:

Key Feature	Benefit for Your Application
High-Temperature Capability	Deposits refractory metals (e.g., Tungsten) and ceramics impossible with other methods.
Exceptional Purity	Water-cooled crucible prevents contamination, ensuring high-performance films.
Precise Rate Control	Enables accurate, repeatable film thickness for complex optical and electronic layers.
Directional Coating	Ideal for semiconductor lift-off processes and precise pattern definition.
