In-Depth Examination of Chemical Vapor Deposition (CVD) Coatings

Introduction to Chemical Vapor Deposition (CVD)

Overview of Modern Film Preparation Methods

Modern film preparation methods encompass a variety of sophisticated techniques, each with its unique applications and advantages. Among these, Physical Vapor Deposition (PVD), Chemical Vapor Deposition (CVD), and Plasma Chemical Vapor Deposition (PCVD) stand out as the most prominent.

Chemical Vapor Deposition (CVD) is particularly noteworthy for its ability to generate solid substances through chemical reactions in the atmosphere. This process involves the deposition of these substances onto the surface of a heated solid substrate. The versatility of CVD is evident in its ability to deposit a wide range of materials, from metal films to complex ceramic layers, under various conditions such as atmospheric pressure, vacuum, or even negative pressure environments.

One of the key advantages of CVD is its ability to produce high-quality, uniform films on substrates of various shapes and sizes, making it a preferred method in industries ranging from microelectronics to cutting tools. The method's adaptability allows for precise control over the chemical composition of the deposited films, enabling the creation of gradient deposits or mixed plating layers, which are crucial for enhancing material properties in specific applications.

Additionally, advancements in CVD technology, such as Metal Organic Compound Chemical Vapor Deposition (MOCVD) and Plasma Enhanced Chemical Vapor Deposition (PECVD), have further expanded its capabilities. MOCVD, for instance, utilizes volatile metal-organic compounds at low temperatures, making it ideal for producing semiconductor devices like lasers and LEDs. PECVD, on the other hand, introduces plasma into the deposition reactor, significantly reducing the required temperature and broadening the scope of CVD applications.

In summary, modern film preparation methods, particularly CVD, represent a cornerstone in the development of advanced materials, offering unparalleled precision and adaptability across numerous industrial sectors.

Widely Used Preparation Method

Chemical Vapor Deposition (CVD) stands out as the most prevalent preparation method in the field of thin film materials, owing to its well-developed technical framework and extensive research. This method is instrumental in the purification of substances and the preparation of a diverse range of inorganic thin film materials, including monocrystalline, polycrystalline, and glassy structures.

CVD's versatility is further highlighted by its ability to deposit metal films, non-metallic films, multi-component alloy films, and ceramic or compound layers. This broad applicability ensures that CVD can cater to various complex shapes of workpieces, maintaining uniform film thickness and stable film layer quality.

Moreover, CVD's capability to operate under different conditions—whether atmospheric pressure, vacuum conditions, or even negative pressure—allows for greater flexibility in material synthesis. The method's adaptability to different temperatures, pressures, and activation methods, such as plasma activation, thermal activation, and ultraviolet light activation, underscores its comprehensive utility in material science.

In summary, CVD's maturity and adaptability make it the go-to method for a wide array of applications, from cutting tools to microelectronics, ensuring high-quality and consistent results across diverse industries.

Principle of Chemical Vapor Deposition

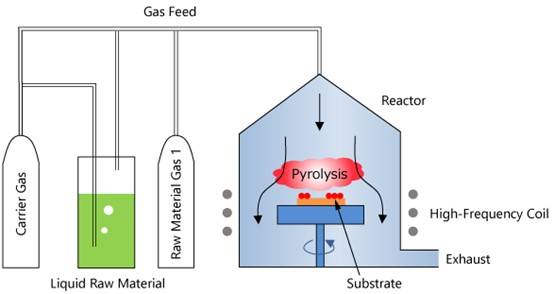

Process of CVD

The fundamental process of Chemical Vapor Deposition (CVD) begins with the introduction of two or more gaseous raw materials into a controlled environment known as the reaction chamber. Within this chamber, a series of intricate chemical reactions take place between the gases, leading to the formation of a new material. This newly formed material then precipitates and adheres to the surface of a substrate, which is typically a solid material. The substrate's role is crucial as it provides the surface onto which the desired material is deposited, transforming it into a functional layer or coating.

During the CVD process, the gaseous raw materials undergo a transformation through chemical reactions, which can be influenced by various factors such as temperature, pressure, and the presence of catalysts. These reactions not only produce the desired material but also generate by-products, which are typically in gaseous form. These by-products are efficiently removed from the reaction chamber, ensuring that they do not interfere with the deposition process or the quality of the final product.

CVD is a highly versatile technique that can produce a wide range of materials, including metals, ceramics, and composites. This versatility is partly due to the nature of the gaseous reactants used in the process. The gases can be precisely controlled to achieve specific chemical compositions and properties in the deposited material. For instance, in the semiconductor industry, CVD is extensively used to deposit layers of silicon, silicon dioxide, and other materials essential for the fabrication of integrated circuits.

Moreover, CVD is not limited to industrial applications; it has also found its way into the production of synthetic diamonds. By carefully controlling the chemical reactions and the conditions within the reaction chamber, manufacturers can create diamond films with properties that rival those of natural diamonds. This application underscores the adaptability and potential of CVD in materials science and engineering.

In summary, the CVD process is a sophisticated method that leverages chemical reactions between gaseous raw materials to deposit a new material onto a substrate. This process is characterized by its precision, versatility, and ability to produce high-quality coatings and materials with a wide range of applications.

Reaction Stages

The principle process of Chemical Vapor Deposition (CVD) can be broken down into four distinct stages that collectively facilitate the deposition of a new material onto a substrate. These stages are crucial for understanding how CVD achieves its versatile and precise coating capabilities.

1. Diffusion of Reaction Gas to the Substrate Surface: The process begins with the reaction gases being introduced into the reaction chamber. These gases must diffuse through the surrounding atmosphere to reach the surface of the heated substrate. This diffusion is influenced by factors such as gas concentration, temperature, and the geometry of the reaction chamber.

2. Adsorption of Reaction Gas on the Substrate Surface: Once the reaction gases reach the substrate surface, they are adsorbed onto it. Adsorption is a surface phenomenon where the gas molecules adhere to the substrate, forming a monolayer. This stage is critical as it sets the foundation for the subsequent chemical reactions to occur.

3. Chemical Reaction on the Material Surface: The adsorbed gases then undergo a chemical reaction on the surface of the substrate. This reaction typically involves the formation of new chemical bonds, leading to the creation of a solid material that will eventually form the coating. The nature of this reaction can vary widely depending on the specific gases and conditions used.

4. Desorption of Gaseous By-Products: As the chemical reaction progresses, it produces gaseous by-products. These by-products must be efficiently removed from the surface of the material to prevent interference with the ongoing deposition process. Desorption, the process of these gases leaving the surface, is facilitated by the temperature and pressure within the reaction chamber.

Each of these stages is meticulously controlled to ensure the quality and uniformity of the deposited film. The interplay between diffusion, adsorption, chemical reaction, and desorption is what makes CVD a highly effective method for producing high-performance coatings.

Characteristics of Chemical Vapor Deposition Method

Versatility in Deposits

Chemical Vapor Deposition (CVD) stands out for its remarkable versatility in depositing a wide array of materials. This method is capable of forming not only metal films but also non-metallic films, multi-component alloy films, and even ceramic or compound layers.

• Metal Films: CVD can deposit a variety of metal films, including those made from precious metals like gold, silver, and platinum, as well as common metals such as aluminum and copper. These metal films are often used in electronics for their high electrical conductivity and in catalysis due to their strong catalytic activity.

• Non-Metallic Films: Non-metallic films, such as silicon dioxide (SiO₂) and silicon nitride (Si₃N₄), are also within CVD's capabilities. These films are crucial in microelectronics for their dielectric properties and in optics for their transparency and refractive index control.

• Multi-Component Alloy Films: CVD can create complex alloy films, such as nickel-tungsten (Ni-W) and titanium-silicon (Ti-Si) alloys. These alloys are known for their high strength and resistance to wear and corrosion, making them ideal for applications in cutting tools and wear-resistant coatings.

• Ceramic and Compound Layers: Ceramic layers, including aluminum oxide (Al₂O₃) and zirconium oxide (ZrO₂), can be deposited using CVD. These materials are prized for their hardness and thermal stability, often used in high-temperature applications like aerospace components. Compound layers, such as silicon carbide (SiC), offer a unique combination of properties, including high thermal conductivity and chemical inertness, making them suitable for use in harsh environments.

The versatility of CVD extends beyond just the types of materials it can deposit. It also allows for precise control over the composition and structure of these deposits, enabling the creation of gradient coatings and mixed plating layers. This flexibility makes CVD an indispensable tool in various industries, from microelectronics to aerospace engineering.

Deposition Conditions

Chemical Vapor Deposition (CVD) can be carried out under a variety of atmospheric conditions, including atmospheric pressure, vacuum conditions, and even under negative pressure environments. Each of these conditions offers unique advantages and challenges in the deposition process.

Atmospheric Pressure CVD (APCVD) is a straightforward method that operates under standard atmospheric conditions. This method is relatively simple to implement and does not require complex vacuum systems, making it cost-effective for large-scale production. However, the film quality and uniformity may be compromised due to the higher pressure and potential for gas phase reactions.

In contrast, Low-Pressure CVD (LPCVD) operates under reduced pressure, typically in the range of 10-100 Pa. This method significantly improves the uniformity and quality of the deposited films. The lower pressure environment reduces gas phase reactions, leading to cleaner and more consistent film layers. LPCVD is particularly advantageous for applications requiring high precision and uniformity, such as in the semiconductor industry.

Vacuum CVD, which can be considered a subset of LPCVD, operates under even lower pressures, often below 10 Pa. This extreme reduction in pressure minimizes gas collisions, allowing for the deposition of ultra-pure and high-quality films. Vacuum CVD is the preferred method for applications demanding the highest standards of film quality, such as in the production of advanced electronic components and optical coatings.

The choice of deposition condition depends on the specific requirements of the application, including the desired film properties, production scale, and cost considerations. Each method has its own set of trade-offs, and selecting the appropriate condition is crucial for achieving the best results in CVD.

Composition Control

The chemical composition of the coating in Chemical Vapor Deposition (CVD) can be meticulously controlled by adjusting the composition of the gas phase. This flexibility allows for the creation of gradient deposits or mixed plating layers, which are essential for tailoring coatings to specific applications. For instance, by varying the gas mixture, one can achieve coatings with varying degrees of hardness, conductivity, or thermal resistance, thereby enhancing the versatility and applicability of CVD technology.

This compositional control is not merely a matter of altering the gas phase but involves a deep understanding of the chemical reactions occurring within the reaction chamber. The ability to manipulate these reactions enables the deposition of multi-component alloy films, ceramic layers, and even complex compound structures. This precision is particularly valuable in industries such as microelectronics, where the uniformity and specific properties of the coating can significantly impact the performance of semiconductor devices.

Moreover, the control over the chemical composition extends to the ability to deposit coatings on various complex shapes of workpieces, ensuring uniform film thickness and stable film layer quality. This capability is crucial for applications in cutting tools, wear-resistant coatings, and mechanical parts, where the coating's integrity and performance directly affect the longevity and efficiency of the components.

In summary, the compositional control in CVD is a powerful tool that allows for the creation of tailored coatings, meeting the diverse and exacting demands of modern industrial applications.

Uniformity and Quality

Chemical Vapor Deposition (CVD) excels in its ability to coat workpieces of various complex shapes, ensuring a uniform film thickness and maintaining a stable film layer quality. This uniformity is crucial for applications where precision and consistency are paramount, such as in the microelectronics and cutting tools industries.

The process of CVD involves the introduction of multiple gaseous raw materials into a reaction chamber. These gases undergo a chemical reaction to form a new material that deposits onto the surface of the substrate. This method allows for precise control over the thickness and composition of the deposited film, which is essential for achieving uniform coatings across intricate workpieces.

Moreover, CVD can be conducted under various conditions, including atmospheric pressure, vacuum conditions, or even under negative pressure. Typically, vacuum deposition yields better quality film layers due to reduced contamination and enhanced control over the reaction environment. This flexibility in deposition conditions further contributes to the consistency and reliability of the coating process.

In summary, CVD's ability to handle complex geometries while maintaining uniform film thickness and high-quality film layers makes it a preferred method in numerous industrial applications.

Classification of Chemical Vapor Deposition Methods

Temperature-Based Classification

CVD methods can be categorized based on the temperature ranges at which they operate. This classification helps in understanding the specific applications and limitations of each method. The temperature-based classification can be broadly divided into three categories: low temperature, medium temperature, and high temperature.

• Low Temperature CVD (200~500℃): This method is particularly advantageous for applications where the substrate material cannot withstand high temperatures. Low temperature CVD is often used in the deposition of organic and polymeric materials, as well as some metal films. The reduced temperature minimizes thermal damage to the substrate, making it suitable for delicate materials like semiconductors and certain polymers.

• Medium Temperature CVD (500~1000℃): This range is versatile and commonly used for depositing a wide variety of materials, including silicon, silicon dioxide, and nitrides. The medium temperature range allows for more complex chemical reactions to occur, leading to the formation of denser and more adherent coatings. This method is widely used in the semiconductor industry for the production of high-quality integrated circuits.

• High Temperature CVD (1000~1300℃): High temperature CVD is employed for materials that require elevated temperatures to achieve the necessary chemical reactions and phase transformations. This method is particularly useful for the deposition of refractory materials like titanium nitride and tungsten. The high temperatures ensure the formation of highly crystalline and dense coatings, which are essential for applications requiring superior mechanical and thermal properties.

Each temperature range has its unique set of advantages and challenges, making them suitable for different types of applications. Understanding these distinctions is crucial for optimizing the CVD process for specific material requirements and industrial needs.

Pressure-Based Classification

Chemical Vapor Deposition (CVD) techniques can be categorized based on the pressure conditions under which they operate, primarily distinguishing between atmospheric pressure CVD (APCVD) and low-pressure CVD (LPCVD). These classifications are crucial as they significantly influence the deposition process, quality of the film, and the applications they are best suited for.

• Atmospheric Pressure CVD (APCVD): This method operates under standard atmospheric conditions, making it more straightforward and less costly to implement. The high pressure facilitates faster reaction rates and higher throughput, which is advantageous for large-scale industrial applications. However, the trade-off lies in the potential for non-uniform film thickness and the presence of particulate contaminants due to the lack of vacuum.

• Low-Pressure CVD (LPCVD): In contrast, LPCVD operates under reduced pressure, typically in a vacuum environment. This lower pressure minimizes gas-phase reactions and reduces the likelihood of particulate formation, leading to higher purity and more uniform films. The reduced pressure also allows for better control over the deposition process, making LPCVD ideal for applications requiring precise film thickness and composition, such as in microelectronics and advanced materials science.

The choice between APCVD and LPCVD depends on the specific requirements of the application, balancing factors such as cost, throughput, and the desired quality of the deposited film.

Wall Temperature-Based Classification

Chemical Vapor Deposition (CVD) methods can be categorized based on the wall temperature of the reaction chamber, primarily distinguishing between hot-wall CVD and cold-wall CVD. This classification is crucial as it directly influences the efficiency, uniformity, and quality of the deposition process.

Hot-Wall CVD

In hot-wall CVD, the entire reaction chamber, including the walls, is maintained at an elevated temperature. This uniform heating ensures that the reactants are evenly distributed and activated, leading to a more consistent deposition across the substrate. The high temperatures facilitate the decomposition of precursors, promoting the formation of high-quality films with fewer defects. This method is particularly advantageous for depositing complex multi-component films, as it allows for better control over the chemical reactions occurring within the chamber.

Cold-Wall CVD

Conversely, cold-wall CVD maintains the chamber walls at a significantly lower temperature compared to the substrate. This approach minimizes unwanted reactions on the chamber walls, reducing contamination and improving the purity of the deposited film. Cold-wall CVD is often preferred for sensitive substrates or when using highly reactive precursors that could otherwise lead to unwanted side reactions if the walls were heated. Despite the lower wall temperatures, the substrate itself is heated to the necessary deposition temperature, ensuring that the reaction process proceeds efficiently.

This classification highlights the importance of temperature management in CVD processes, underscoring how different thermal environments can be leveraged to achieve specific deposition outcomes.

Activation Method-Based Classification

CVD methods can be classified based on the reaction activation method, which significantly influences the efficiency and quality of the deposition process. The primary activation methods include plasma activation, thermal activation, and ultraviolet light activation.

• Plasma Activation (PECVD): This method involves the use of plasma to enhance the chemical reaction rates. PECVD, or Plasma Enhanced Chemical Vapor Deposition, operates under low vacuum conditions, which reduces the deposition temperature and expands the range of materials that can be deposited. This technique is particularly useful for depositing films on temperature-sensitive substrates.

• Thermal Activation: In thermal activation, the chemical reactions are driven by heat. This method typically requires higher temperatures to achieve the necessary reaction rates. Thermal CVD is widely used for depositing high-quality films, especially for materials that require elevated temperatures for proper crystallization and adhesion.

• Ultraviolet Light Activation: Ultraviolet (UV) light can be used to activate the reactants, thereby initiating the deposition process. UV-CVD leverages the energy from UV light to break chemical bonds and promote reactivity at lower temperatures compared to thermal activation. This method is advantageous for depositing thin films on substrates that cannot withstand high thermal loads.

Each activation method has its unique advantages and is chosen based on the specific requirements of the deposition process, such as substrate material, desired film properties, and operational constraints.

New Chemical Vapor Deposition Technologies

Metal Organic Compound Chemical Vapor Deposition (MOCVD)

Metal Organic Compound Chemical Vapor Deposition (MOCVD), also known as Metal Organic Vapor Phase Epitaxy (MOVPE), represents a significant advancement in vapor phase epitaxial growth technology. This method, which evolved from traditional Vapor Phase Epitaxy (VPE), employs volatile metal-organic compounds as source materials. These compounds typically include organic compounds of group III and II elements, along with hydrides of group V and VI elements. Through a process of thermal decomposition, these materials undergo vapor phase epitaxy on a substrate, facilitating the growth of various III-V and II-VI compound semiconductors and their multilayered solid solutions as thin single-crystal materials.

MOCVD stands out due to its ability to enhance performance and quality through compact in-situ tools, which provide real-time feedback for precise control over parameters such as wafer carrier/slot temperature, film thickness, film stress/wafer curvature, and surface measurements. This level of control is crucial for the production of high-quality semiconductor devices, including High Brightness LEDs (HBLEDs).

Compared to other deposition techniques like Molecular Beam Epitaxy (MBE), MOCVD offers higher throughput, making it the preferred choice for mass production of compound semiconductor devices. Its versatility and efficiency in producing complex semiconductor structures have solidified its role in the semiconductor industry, particularly for devices that require precise control over material composition and layer thickness.

Plasma Enhanced Chemical Vapor Deposition (PECVD)

Plasma Enhanced Chemical Vapor Deposition (PECVD) operates under low vacuum conditions within a deposition reactor, where it generates plasma to facilitate the deposition process. This method significantly reduces the required deposition temperature compared to conventional Chemical Vapor Deposition (CVD) techniques. By leveraging energetic electrons in the plasma, PECVD enhances the activation of the CVD process, thereby lowering the thermal energy traditionally needed for surface chemistry reactions.

This innovation allows for the deposition of high-quality, uniform thin films at temperatures ranging from 200-400°C, as opposed to the higher temperatures, typically between 425-900°C, required for Low Pressure Chemical Vapor Deposition (LPCVD). The reduced temperature requirement broadens the applicability of CVD technology, making it feasible to coat a variety of substrates, including optical glass, silicon, quartz, and stainless steel, with materials such as silicon nitride, amorphous silicon, and microcrystalline silicon.

The use of plasma in PECVD not only lowers the temperature but also enhances the deposition rates, making it a preferred method for applications requiring precise control over film properties and uniformity. This dual advantage positions PECVD as a versatile and efficient technique in the realm of thin film deposition technologies.

Main Application Directions of CVD

Application in Cutting Tools

CVD coatings have become indispensable in the realm of cutting tools, offering a robust solution to the challenges of wear, oxidation, and corrosion. The application of CVD coatings in turning, milling, and drilling operations significantly enhances tool life and performance. These coatings act as a protective barrier, reducing the direct contact between the tool and the workpiece, thereby minimizing wear and tear.

For instance, during the milling process, the high-temperature environment can lead to rapid oxidation of the cutting edge. CVD coatings, with their superior oxidation resistance, prevent this degradation, ensuring the tool remains sharp and effective for longer periods. Similarly, in drilling applications, where tools are subjected to high mechanical stresses and corrosive environments, CVD coatings provide exceptional wear and corrosion resistance, maintaining the integrity and functionality of the tool.

The versatility of CVD coatings is further highlighted by their ability to be tailored to specific cutting tool materials and applications. By adjusting the chemical composition of the gas phase during the deposition process, it is possible to create coatings with varying degrees of hardness, toughness, and thermal stability. This adaptability ensures that CVD coatings can be optimized for different types of cutting tools, from carbide inserts to high-speed steel drills, providing a comprehensive solution to the diverse challenges faced in cutting tool applications.

Application in Wear-Resistant Coating Mechanical Parts

Chemical Vapor Deposition (CVD) coatings have become indispensable in enhancing the durability and performance of mechanical parts subjected to high wear and friction. These coatings are particularly effective in environments where traditional materials would quickly degrade, such as in automotive engines, industrial machinery, and manufacturing processes.

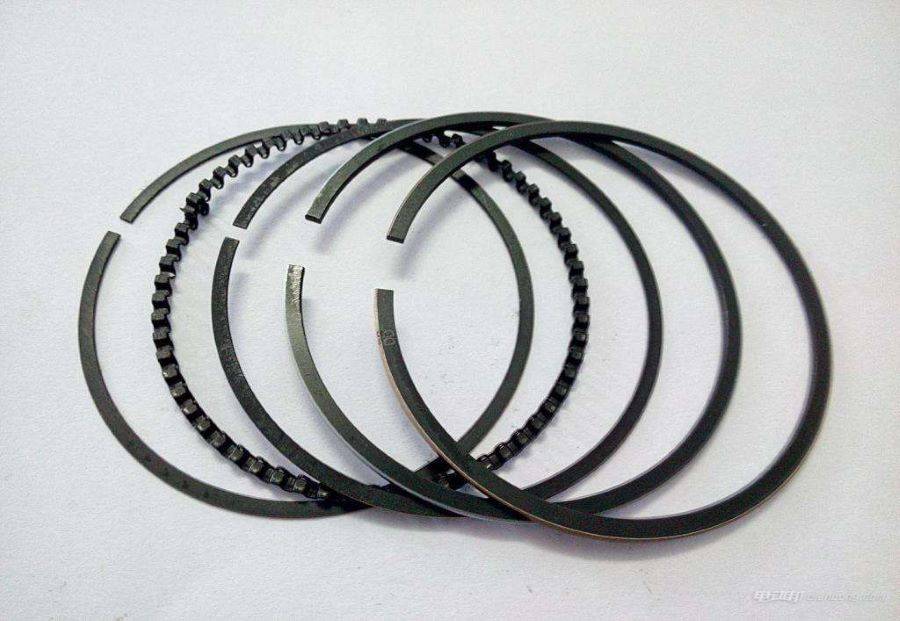

One of the most notable applications of CVD in this field is the coating of piston rings. The high temperatures and pressures within an engine's combustion chamber can cause rapid wear on piston rings, leading to decreased engine efficiency and increased maintenance costs. CVD coatings provide a robust, wear-resistant layer that can withstand these harsh conditions, significantly extending the lifespan of the piston rings and reducing the frequency of engine overhauls.

Similarly, injection molding cylinders benefit from CVD coatings. Injection molding involves high-pressure injection of molten plastic into a mold, a process that can cause significant wear on the cylinder walls. CVD coatings offer superior adhesion and wear resistance, ensuring that the cylinders maintain their integrity and precision over prolonged use.

In extrusion propeller shafts, the continuous friction and mechanical stress can lead to rapid degradation of the shaft material. CVD coatings provide a protective layer that not only improves wear resistance but also enhances the shaft's ability to withstand mechanical stress, thereby increasing its operational lifespan.

Bearings, another critical component in mechanical systems, also benefit from CVD coatings. Bearings are subjected to constant rotational forces and friction, which can cause wear and eventual failure. The CVD coating provides a durable, low-friction surface that reduces wear and extends the bearing's operational life, leading to more reliable and efficient machinery.

In summary, CVD coatings are integral to enhancing the wear resistance and longevity of key mechanical parts, ensuring that they perform optimally in demanding industrial and automotive applications.

Application in Microelectronics Technology

Chemical Vapor Deposition (CVD) plays a pivotal role in the microelectronics industry, particularly in the fabrication of semiconductor devices and integrated circuits. One of its primary applications is in the preparation of epitaxial semiconductor films, which are essential for creating high-quality, single-crystal layers that can be used to build sophisticated electronic components. These epitaxial films are critical for enhancing the performance and reliability of semiconductor devices.

In addition to epitaxial film preparation, CVD is extensively used in the creation of P-N junction diffusion elements. These elements are fundamental to the operation of diodes, transistors, and other semiconductor devices. By precisely controlling the deposition process, CVD ensures that the P-N junctions are formed with the necessary characteristics, such as uniform doping levels and sharp interfaces, which are crucial for efficient device operation.

Dielectric isolation is another area where CVD technology shines. In semiconductor manufacturing, dielectric isolation is used to electrically isolate different regions of a chip, preventing unwanted electrical interactions and ensuring stable operation. CVD allows for the deposition of high-quality dielectric materials, such as silicon dioxide, with excellent insulating properties and uniform thickness, which are essential for maintaining the integrity of the integrated circuit.

Furthermore, CVD is utilized in the fabrication of diffusion masks, which are used to selectively introduce dopants into semiconductor materials. These masks are crucial for creating precise patterns on the semiconductor surface, enabling the formation of complex circuits with high precision. The ability of CVD to deposit materials with controlled composition and thickness makes it an ideal choice for this application, ensuring that the diffusion masks are both effective and reliable.

Overall, the versatility and precision of CVD make it an indispensable tool in the microelectronics industry, enabling the production of advanced semiconductor devices and integrated circuits with superior performance and reliability.

Application in Superconducting Technology

Chemical Vapor Deposition (CVD) plays a pivotal role in the fabrication of superconducting materials, particularly in the synthesis of compounds like Nb3Sn. This method allows for the creation of dense, highly controlled superconducting films with superior mechanical properties. The precision afforded by CVD ensures that the resulting materials exhibit consistent and reliable superconducting characteristics, which are crucial for applications in high-field magnets and other critical technologies.

One of the key advantages of using CVD for superconducting materials is its ability to produce films with exceptional uniformity and density. This is particularly important in superconducting applications where even minor defects can lead to significant performance degradation. The controlled environment of CVD enables the precise regulation of gas mixtures and reaction conditions, resulting in films that are not only dense but also exhibit excellent mechanical strength and stability.

Moreover, CVD's versatility extends to the deposition of multi-component alloy films, which is essential for creating complex superconducting materials with tailored properties. This capability allows researchers to fine-tune the superconducting transition temperature, critical current density, and other key parameters to meet specific application requirements.

In summary, CVD's role in superconducting technology is indispensable, offering a robust and flexible approach to the production of high-quality superconducting materials that are essential for advancing various technological applications.

Application in Other Fields

Chemical Vapor Deposition (CVD) extends its utility beyond traditional industrial applications, finding significant roles in diverse fields such as optics and manufacturing processes. In optics, CVD is pivotal for preparing diamond films, which are renowned for their exceptional thermal shock and radiation resistance. These properties make diamond films ideal for use in high-stress environments, such as those encountered in aerospace and nuclear applications.

Moreover, CVD plays a crucial role in the manufacturing of drawing molds, where it ensures uniform coating and adhesion. This application is particularly vital in industries requiring precise and consistent coatings, such as in the production of optical fibers and high-precision components. The uniformity and quality of CVD-deposited coatings contribute significantly to the durability and performance of these components, underscoring the broader applicability and versatility of CVD technology.

Application of CVD in Precious Metal Materials

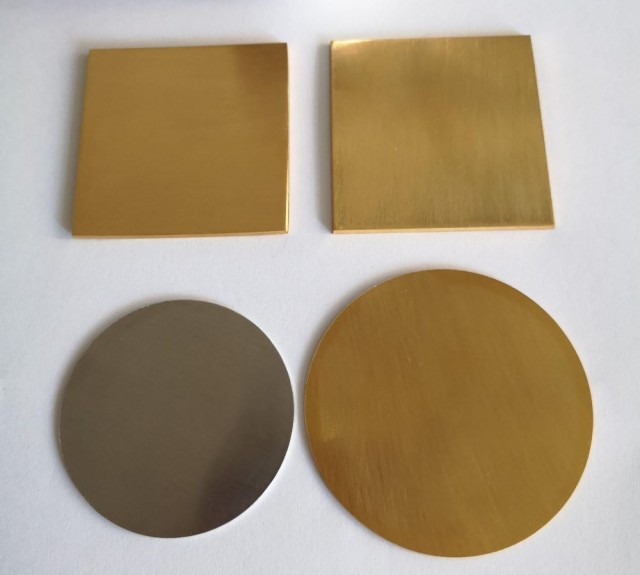

Production of Precious Metal Films

Chemical Vapor Deposition (CVD) is a versatile technique that excels in the production of precious metal films, offering a range of advantageous properties that make these films highly desirable in various industrial applications. One of the primary benefits of using CVD for precious metal films is their exceptional oxidation resistance. This property ensures that the films remain stable and functional under harsh environmental conditions, such as high temperatures and corrosive atmospheres.

In addition to their oxidation resistance, CVD-produced precious metal films exhibit high electrical conductivity. This makes them ideal for use in electronic devices where efficient electrical transmission is crucial. The films' conductivity is maintained even under extreme conditions, providing reliable performance in both static and dynamic environments.

Moreover, these films possess strong catalytic activity, a feature that is particularly valuable in chemical reactions where catalysts are required to facilitate or accelerate processes. The high surface area and uniform distribution of precious metals within the films enhance their catalytic efficiency, making them effective in a wide range of applications, from automotive catalytic converters to industrial chemical processing.

The ability to produce films with these combined properties using CVD underscores the technology's significance in the field of precious metal materials. This method not only ensures the quality and consistency of the films but also allows for precise control over their composition and thickness, making it a preferred choice for advanced industrial applications.

Production of Noble Metal Iridium High Temperature Coatings

NASA's pioneering work in the production of iridium high-temperature coatings for composite nozzles has demonstrated the exceptional capabilities of Chemical Vapor Deposition (CVD) in this field. By leveraging CVD, NASA has not only achieved high deposition rates but also optimized the efficiency of the coating process, ensuring that the iridium layers are both durable and effective.

Iridium, known for its exceptional resistance to high temperatures and corrosion, is an ideal material for aerospace applications where components are exposed to extreme conditions. The CVD process allows for precise control over the deposition parameters, enabling the creation of uniform and high-quality iridium coatings on complex geometries such as composite nozzles.

The success of this application underscores the versatility and robustness of CVD technology, which can be adapted to various precious metal coatings, each tailored to specific performance requirements. This adaptability is a testament to the broader potential of CVD in the aerospace industry and beyond, where high-temperature resistance and material integrity are paramount.

Chemical Vapor Deposition of Palladium

Chemical Vapor Deposition (CVD) is a versatile technique employed to fabricate thin films or layers of palladium. These palladium films are renowned for their exceptional hydrogen adsorption capabilities, making them indispensable in the realm of hydrogen purification equipment. The process involves the introduction of gaseous precursors into a reaction chamber, where they undergo a series of chemical reactions to form a solid palladium layer on a heated substrate.

One of the standout features of palladium films produced via CVD is their high surface area, which significantly enhances their hydrogen adsorption properties. This attribute is particularly crucial in hydrogen purification systems, where efficient adsorption and desorption cycles are essential for maintaining high purification rates. The uniformity and quality of the palladium films ensure consistent performance across various operational conditions, thereby extending the lifespan of the equipment.

In addition to their application in hydrogen purification, palladium films prepared through CVD are also utilized in catalytic converters and fuel cells. The strong adsorption effects of palladium on hydrogen not only facilitate purification but also play a pivotal role in catalytic reactions, enhancing the overall efficiency of these systems. The ability to precisely control the thickness and composition of the palladium films through CVD allows for tailored applications, making it a preferred method in advanced materials engineering.

The advantages of using CVD for palladium deposition extend beyond just hydrogen-related applications. The method's ability to produce high-quality, uniform films on complex shapes and substrates ensures its broad applicability in various industrial sectors. Furthermore, the process can be conducted under different temperature and pressure conditions, providing flexibility in meeting specific application requirements. This adaptability underscores the significance of CVD in the production of palladium films, which continue to find new and innovative uses across diverse fields.
