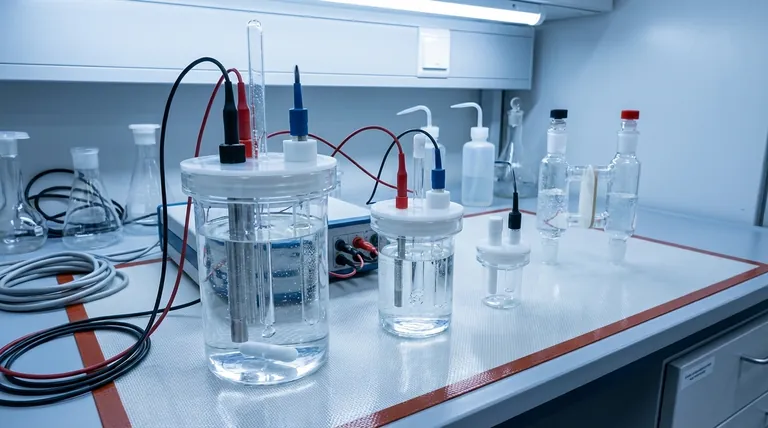

What is the typical volume range for a single chamber of the electrolytic cell? A Guide to Sizing for Your Lab

Typically, the volume for a single chamber of an electrolytic cell ranges from as small as 10 mL to as large as 500 mL, with some standard options extending up to 1000 mL. This range covers the vast majority of laboratory applications, from fundamental research to small-scale synthesis. Crucially, most suppliers also offer custom fabrication for volumes outside this common range to meet specific experimental needs.

While a standard electrolytic cell chamber volume is typically between 50 mL and 500 mL, the correct choice is not about finding a "typical" size. It's about matching the cell volume to your specific experimental requirements, such as the scale of your reaction, the size of your electrodes, and the need for electrolyte stability.

Why Volume is a Critical Parameter

Choosing the right cell volume is one of the first and most important decisions in designing an electrochemical experiment. It directly influences the validity, reproducibility, and scalability of your results.

Impact on Electrolyte Stability

A larger volume of electrolyte acts as a buffer against change. In long-duration experiments, it minimizes shifts in pH, analyte concentration, and ion depletion near the electrodes.

This stability is critical for ensuring that the conditions of your experiment remain constant, leading to more reliable and interpretable data.

Accommodating Electrodes and Probes

The cell must provide enough space to house the working electrode, counter electrode, and reference electrode without them touching or causing electrical interference.

Smaller volumes (under 50 mL) can present a physical challenge, requiring careful placement to avoid short-circuiting or distorted electrochemical signals.

Matching the Experimental Scale

The required volume is fundamentally tied to your goal. Small-volume cells are ideal for screening catalysts or performing fundamental studies with expensive materials.

Larger volumes are necessary for bulk electrolysis, where the goal is to produce a significant quantity of product, or for pilot-scale process development.

Common Cell Types and Their Volumes

Different experimental setups require different cell geometries, each with a common volume range.

Standard Beaker-Style Cells (10 mL - 1000 mL)

These are the most common type, typically made of glass or PTFE, and used for standard three-electrode voltammetry. Their wide volume range makes them versatile for many applications.

Super-sealed versions of these cells, designed for air-sensitive or gas-tight experiments, are often found in the smaller 10 mL to 100 mL range to ensure a reliable seal.

H-Type Cells (30 mL - 500 mL per chamber)

H-type cells consist of two chambers separated by a membrane or frit. They are essential for experiments where you must isolate the products or processes occurring at the anode and cathode.

The volume range, typically 30 mL to 500 mL, applies to each individual chamber.

Understanding the Trade-offs

Choosing a volume is a balancing act. Optimizing for one factor can introduce limitations in another.

The Problem with Excessively Large Volumes

Using a cell that is too large wastes expensive materials, such as the electrolyte, solvent, and any dissolved catalysts or analytes.

It can also make it difficult to achieve a uniform temperature and may require larger, more costly electrodes to maintain appropriate current densities.

The Risks of Excessively Small Volumes

A volume that is too small can lead to rapid depletion of the analyte, causing significant concentration changes during the experiment and skewing results.

The proximity of the electrodes can also cause contamination, where products from the counter electrode diffuse to and react at the working electrode.

Key Factors Beyond Volume

Beyond the raw milliliter number, you must consider other critical design features that are often linked to cell size.

Material Compatibility

Cells are commonly made of borosilicate glass, quartz, or PTFE. The choice depends entirely on your chemical system—for instance, PTFE is required for experiments involving hydrofluoric acid, which etches glass.

Port Configuration

Standard cells often come with a lid featuring a specific number and size of ports. A common configuration includes three larger ports (~6.2 mm) for the electrodes and two smaller ports (~3.2 mm) for gas sparging or venting. Ensure the ports match your equipment.

Making the Right Choice for Your Experiment

To select the appropriate cell, align the volume and type with your primary research objective.

• If your primary focus is fundamental research or catalyst screening: A smaller volume (10-100 mL) is efficient for conserving precious materials and allows for rapid testing.
• If your primary focus is long-duration experiments or bulk synthesis: A larger volume (100-500+ mL) provides greater stability by minimizing changes in electrolyte concentration and temperature.
• If your primary focus is separating anodic and cathodic processes: An H-type cell is non-negotiable, and the chamber volume will depend on the scale of your separated reactions.
• If your primary focus is air-sensitive or gas-related electrochemistry: A sealed cell is necessary, where the quality of the seal is often more critical than the specific volume.

Ultimately, selecting the correct cell volume is about ensuring the integrity and relevance of your electrochemical data.

Summary Table:

Cell Type	Typical Volume Range (per chamber)	Primary Use Case
Standard Beaker-Style	10 mL - 1000 mL	Versatile for voltammetry and general use
H-Type Cell	30 mL - 500 mL	Isolating anode/cathode reactions
Small/Sealed Cells	10 mL - 100 mL	Catalyst screening, air-sensitive experiments
