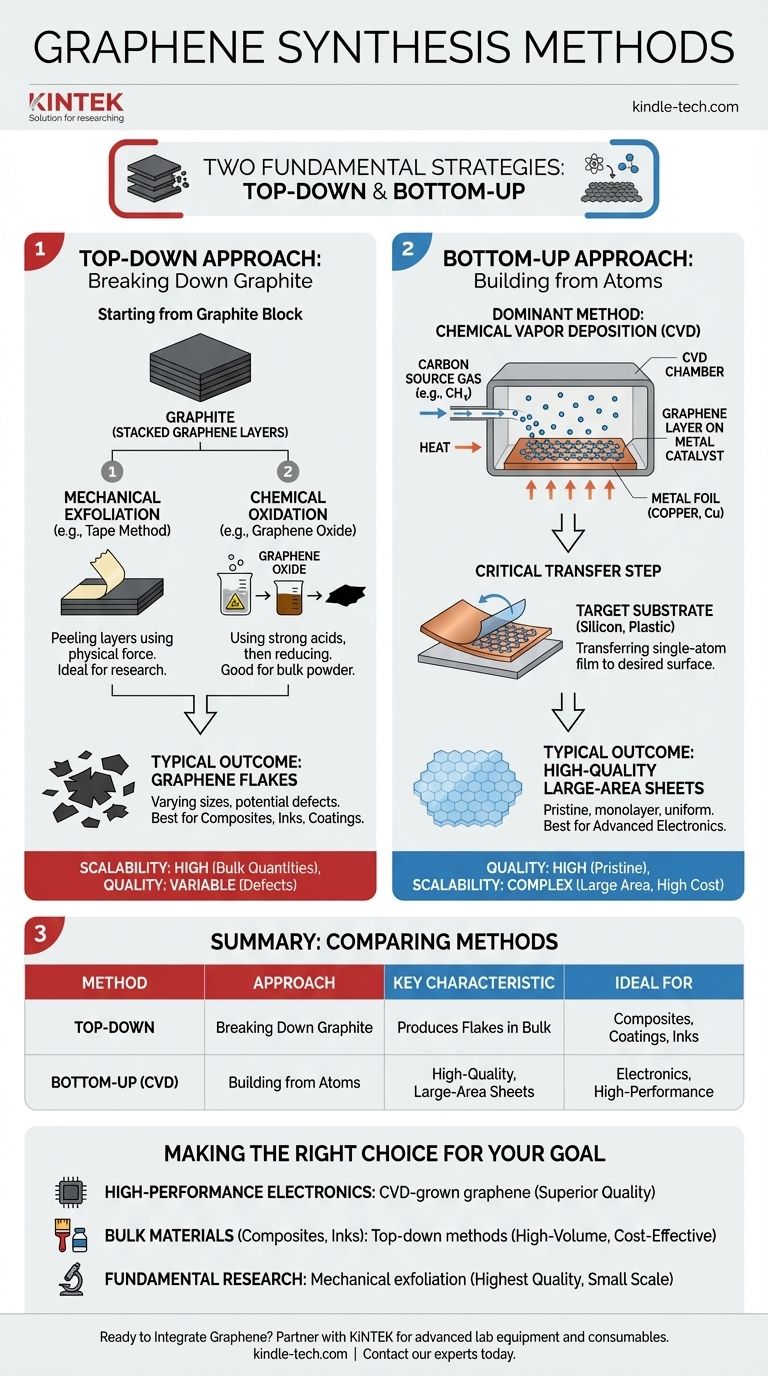

Graphene synthesis methods can be broadly categorized into two main approaches: bottom-up and top-down methods. Bottom-up methods involve building graphene from smaller carbon-containing molecules or atoms, such as through chemical vapor deposition (CVD), epitaxial growth, or arc discharging. Top-down methods, on the other hand, involve breaking down larger graphite structures into graphene layers, such as through mechanical exfoliation, chemical oxidation, or exfoliation. Among these, CVD is the most widely used technique due to its ability to produce high-quality, large-area graphene films. The CVD process involves decomposing carbon-containing precursors at high temperatures on a substrate, often using metal catalysts to facilitate the reaction. This method is highly controllable and scalable, making it ideal for industrial applications.

Key Points Explained:

1. Bottom-Up Methods:

   • Chemical Vapor Deposition (CVD):
     • CVD is the most common method for synthesizing high-quality graphene. It involves growing graphene films on substrates, such as transition metals (e.g., nickel or copper), by decomposing carbon-containing precursors at high temperatures (typically 800–1000°C).
     • The process consists of two main steps:
       1. Precursor Pyrolysis: The carbon-containing precursor (e.g., methane, ethylene) is decomposed into carbon atoms on the substrate surface.
       2. Graphene Formation: The disassociated carbon atoms form a hexagonal lattice structure, resulting in graphene.
     • CVD is scalable and produces large-area graphene films, making it suitable for industrial applications.
   • Epitaxial Growth:
     • This method involves growing graphene layers on a crystalline substrate, such as silicon carbide (SiC), through high-temperature annealing. The silicon atoms evaporate, leaving behind a carbon-rich surface that forms graphene.
     • Epitaxial growth produces high-quality graphene but is limited by the cost and availability of suitable substrates.
   • Arc Discharging:
     • Arc discharging involves creating an electric arc between two graphite electrodes in an inert gas atmosphere. The high temperatures vaporize the graphite, and the carbon atoms recombine to form graphene.
     • This method is less controllable and typically produces graphene with lower quality compared to CVD.

2. Top-Down Methods:

   • Mechanical Exfoliation:
     • Also known as the "Scotch tape method," this technique involves peeling off layers of graphene from graphite using adhesive tape. The process is simple and produces high-quality graphene but is not scalable for industrial production.
   • Chemical Oxidation (Hummers' Method):
     • This method involves oxidizing graphite to produce graphene oxide (GO), which is then reduced to graphene. The oxidation process uses strong acids and oxidants, followed by chemical or thermal reduction.
     • While scalable, this method often results in graphene with defects and residual oxygen groups, reducing its electrical conductivity.
   • Exfoliation:
     • Liquid-phase exfoliation involves dispersing graphite in a solvent and applying ultrasonic energy to separate the layers into graphene. This method is scalable but produces graphene with varying quality and thickness.

3. Comparison of Methods:

   • Bottom-Up Methods:
     • Advantages: High-quality graphene, controllable, scalable (especially CVD).
     • Disadvantages: Requires high temperatures, specialized equipment, and sometimes expensive substrates.
   • Top-Down Methods:
     • Advantages: Simplicity, lower cost, scalability (especially chemical oxidation).
     • Disadvantages: Lower quality graphene, defects, and residual impurities.

4. Applications and Suitability:

   • CVD is the preferred method for applications requiring high-quality, large-area graphene, such as electronics, sensors, and transparent conductive films.
   • Mechanical exfoliation is suitable for research purposes where high-quality graphene is needed in small quantities.
   • Chemical oxidation and exfoliation are used for applications where cost and scalability are more critical than graphene quality, such as in composites or energy storage.

In summary, the choice of graphene synthesis method depends on the desired quality, scalability, and application. CVD is the most versatile and widely used method, while top-down methods offer simpler and more cost-effective alternatives for specific applications.

Summary Table:

Method	Type	Advantages	Disadvantages
Chemical Vapor Deposition (CVD)	Bottom-Up	High-quality, scalable, large-area films	High temperatures, specialized equipment
Epitaxial Growth	Bottom-Up	High-quality graphene	Expensive substrates
Arc Discharging	Bottom-Up	Simple process	Lower quality graphene
Mechanical Exfoliation	Top-Down	High-quality, simple	Not scalable
Chemical Oxidation	Top-Down	Scalable, cost-effective	Defects, residual impurities
Exfoliation	Top-Down	Scalable	Varying quality and thickness
