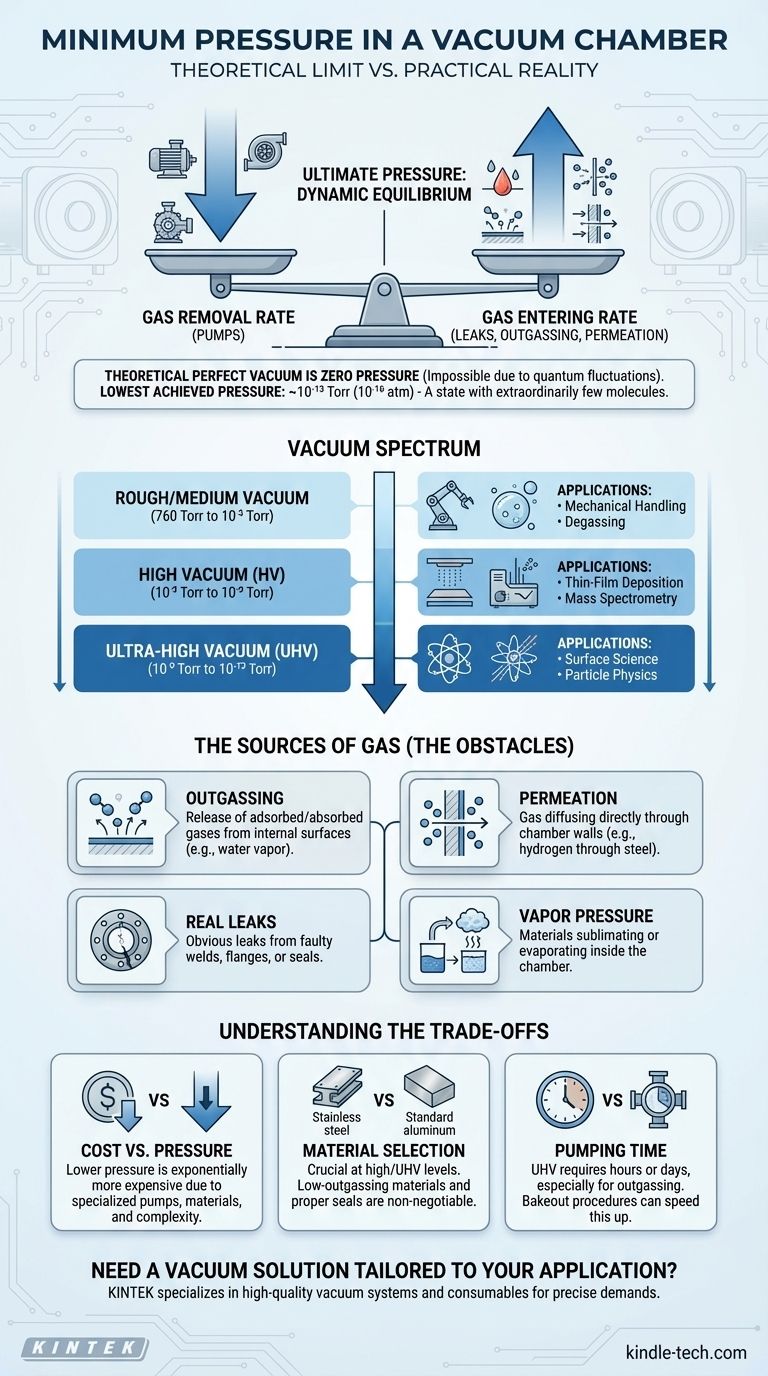

The minimum pressure achievable in a vacuum chamber depends on its design, materials, and the type of vacuum pumps used. Ultra-high vacuum (UHV) chambers, such as rectangular or box-shaped chambers, can reach pressures as low as 100 nanopascals (nPa). These chambers are designed with thick walls and bracing to withstand extreme pressure conditions and are used for specialized applications like space simulation and film deposition. Other factors, such as the chamber's material, shape, and structural integrity, also play a critical role in achieving and maintaining such low pressures. The vacuum pump system, including roughing and main pumps, is essential for creating and sustaining the desired vacuum level.

Key Points Explained:

1. Definition of a Vacuum Chamber:

   • A vacuum chamber is a container designed to create a vacuum, which is a state where the pressure is lower than atmospheric pressure. This is achieved by using vacuum pumps to remove air and other gases from the chamber.

2. Types of Vacuum Chambers:

   • Box-Shaped Chambers: These are available in rectangular or cubic forms and are designed for ultra-high vacuum (UHV) conditions. They can achieve pressures as low as 100 nanopascals (nPa). These chambers are used for specialized applications like space simulation, film deposition, and tribology tests.
   • Bell Jar Chambers: These are cylindrical chambers with a domed top, made from materials like metal or Pyrex. They are used for high-temperature applications and are available in various sizes. Pyrex bell jars are transparent, making them suitable for visual observation during experiments.

3. Factors Affecting Minimum Pressure:

   • Chamber Design and Materials: The chamber must be machined with high accuracy and made from materials that can withstand drastic pressure changes. Thick walls and bracing are often required for UHV chambers to maintain structural integrity under extreme conditions.
   • Vacuum Pump System: The type and efficiency of the vacuum pumps (roughing and main pumps) are critical in achieving and maintaining low pressures. High-performance pumps are necessary for UHV conditions.
   • Chamber Shape and Structural Components: The shape of the chamber (e.g., cylindrical, spherical, or rectangular) and its structural components (e.g., flanges, base plates) must ensure stability and resilience to maintain the required vacuum levels.

4. Applications Requiring Ultra-High Vacuum:

   • Space Simulation: UHV chambers are used to simulate the vacuum conditions of space for testing spacecraft components.
   • Film Deposition: Processes like physical vapor deposition (PVD) and chemical vapor deposition (CVD) require UHV conditions to ensure high-quality thin films.
   • Tribology and Degassing: UHV chambers are used in tribology studies to understand friction and wear in vacuum conditions and for degassing materials to remove trapped gases.

5. Vacuum Chamber Furnace Characteristics:

   • A vacuum chamber furnace is a specialized type of vacuum chamber used for high-temperature applications. It features a water-cooled system, gas flowmeters, and inlet/outlet ports for gas washing. It can handle gases like hydrogen, argon, nitrogen, oxygen, and carbon monoxide, with a vacuum degree that can reach 5 Pa. These furnaces are energy-efficient, have low external temperatures, and are ideal for sintering atmospheres in research and industrial settings.

6. Challenges in Achieving Ultra-High Vacuum:

   • Leakage: Even small leaks can significantly impact the ability to achieve and maintain UHV conditions. Proper sealing and regular maintenance are essential.
   • Outgassing: Materials inside the chamber can release gases under vacuum, which can increase pressure. Using low-outgassing materials and pre-treating components can mitigate this issue.
   • Temperature Control: High temperatures can cause materials to expand and contract, potentially leading to leaks or structural failures. Proper temperature management is crucial for maintaining UHV conditions.

By understanding these key points, one can appreciate the complexity involved in designing and operating a vacuum chamber capable of achieving ultra-high vacuum conditions. The interplay between design, materials, and vacuum pump technology is critical in pushing the boundaries of low-pressure environments for advanced scientific and industrial applications.

Summary Table:

Key Factor	Details
Minimum Pressure (UHV)	As low as 100 nanopascals (nPa)
Chamber Types	Box-shaped, bell jar
Critical Factors	Design, materials, vacuum pump system, shape, and structural integrity
Applications	Space simulation, film deposition, tribology, degassing
Challenges	Leakage, outgassing, temperature control
