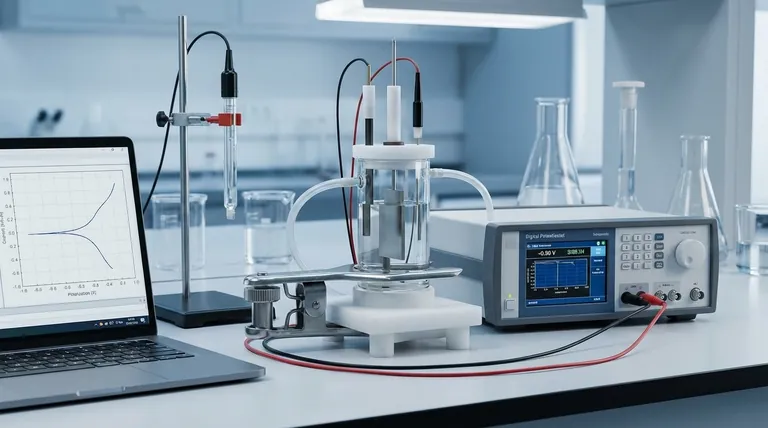

What is the operating principle of a flat plate corrosion electrolytic cell? A Guide to Controlled Materials Testing

At its core, a flat plate corrosion electrolytic cell operates by using an external power source to deliberately induce and control corrosion on a metal sample. This setup forces a non-spontaneous electrochemical reaction to occur, allowing researchers to accelerate, measure, and analyze the material's degradation characteristics in a highly controlled environment.

To understand materials science, one must often study how materials fail. The flat plate electrolytic cell is a specialized tool that turns the slow, unpredictable process of corrosion into a quantifiable, repeatable experiment by using electrical energy as a precise driving force.

The Three-Electrode System: The Heart of Control

The precision of a corrosion cell comes from its three-electrode configuration. Each component has a distinct and critical function that, together, allows for accurate measurement.

The Working Electrode (WE): The Subject of Study

This is the flat plate metal sample being investigated. It is the surface where the corrosion reaction (oxidation) is intentionally initiated and measured. Its potential is the primary variable being controlled and monitored.

The Counter Electrode (CE): The Circuit Closer

Typically made of an inert material like platinum mesh, the counter electrode's sole job is to complete the electrical circuit. It allows current to flow through the electrolyte to and from the working electrode, but it does not participate in the reaction being studied.

The Reference Electrode (RE): The Unwavering Benchmark

The reference electrode, often a silver/silver chloride (Ag/AgCl) electrode, provides a stable, constant potential that does not change during the experiment. All potential measurements of the working electrode are made relative to this unwavering benchmark, ensuring the data is accurate, reproducible, and comparable across different experiments.

The Electrolyte: The Ion Highway

This is the corrosive solution (e.g., saltwater, acid) that fills the cell. It serves as a conductive medium, containing ions that migrate between the electrodes to carry charge and complete the electrochemical reaction.

How It Works: Forcing the Corrosion Process

Unlike a battery, which generates power from a spontaneous chemical reaction, an electrolytic cell consumes power to drive a reaction that would not happen on its own.

Applying External Power

An external power source, typically a sophisticated device called a potentiostat, is connected to the three electrodes. This instrument precisely controls the voltage between the working electrode and the reference electrode.

Driving Oxidation at the Anode

The potentiostat makes the working electrode the anode (the positive terminal). This electrical potential actively pulls electrons away from the metal atoms on the sample's surface, forcing them to oxidize—that is, to corrode and dissolve into the electrolyte as positive ions.

Balancing the Reaction at the Cathode

Simultaneously, the counter electrode is made the cathode (the negative terminal). It facilitates a reduction reaction (e.g., converting hydrogen ions in the electrolyte into hydrogen gas) that consumes the electrons flowing through the external circuit. This balances the overall charge.

Understanding the Pitfalls and Best Practices

While powerful, the accuracy of results from an electrolytic cell depends entirely on meticulous experimental technique.

Ensuring a Perfect Seal

The seal around the flat plate sample is a common point of failure. Any leak in the cell can compromise the electrolyte's concentration, damage the equipment, and render the experimental data invalid.

Avoiding External Interference

Corrosion measurements often involve very small electrical currents and voltages. The experimental setup must be isolated from vibrations and external electromagnetic fields (e.g., from other lab equipment) that can introduce noise and corrupt the data.

Setting Correct Parameters

Applying excessive voltage can cause unintended side reactions, such as the rapid breakdown of the electrolyte itself (electrolysis). This obscures the desired corrosion data and can even damage the electrodes. Parameters must be chosen carefully based on the material and electrolyte.

The Critical Role of Cleanliness

The cell must be thoroughly cleaned with deionized water after every use. Any residue or contamination from a previous experiment can drastically alter the chemical environment and skew the results of the next test.

Making the Right Choice for Your Goal

To get meaningful data, your experimental procedure must align with your research objective.

• If your primary focus is measuring corrosion rate (e.g., polarization curves): Ensure your reference electrode is correctly calibrated and positioned close to the working electrode, and use a slow, steady potential scan rate to allow the system to stabilize at each step.
• If your primary focus is analyzing corrosion products: Handle the working electrode with extreme care after the experiment to preserve the delicate layer of corrosion products on its surface for subsequent microscopic or spectroscopic analysis.
• If your primary focus is comparing different materials: Maintain identical experimental conditions—temperature, electrolyte composition, and electrical parameters—for every sample to ensure your comparison is fair and accurate.

By mastering these principles, you can transform the electrolytic cell from a simple piece of lab equipment into a powerful instrument for quantitative materials analysis.

Summary Table:

Component	Role in the Cell	Key Consideration
Working Electrode (WE)	The metal sample under study; site of corrosion.	Surface must be clean and properly sealed to prevent leaks.
Reference Electrode (RE)	Provides a stable potential benchmark for accurate measurements.	Must be calibrated and positioned close to the WE.
Counter Electrode (CE)	Completes the electrical circuit, allowing current to flow.	Typically made of inert material like platinum.
Potentiostat	The external power source that controls the voltage precisely.	Scan rate and voltage limits must be set correctly to avoid side reactions.
Electrolyte	The corrosive solution that serves as a conductive medium.	Composition and temperature must be consistent for comparable results.
