How should the electrical circuit for the electrolytic cell be set up? A Step-by-Step Guide to Safe & Accurate Electrolysis

To properly set up the electrical circuit for an electrolytic cell, you must connect the positive terminal of the power supply to the cell's anode and the negative terminal to the cell's cathode. It is absolutely crucial to ensure this polarity is correct before applying power. This connection drives the non-spontaneous chemical reaction central to electrolysis.

A successful and safe electrolytic setup goes beyond just connecting wires. It requires careful preparation of the electrolyte, meticulous handling of fragile components, and strict adherence to the specified voltage and current limits to control the reaction and prevent damage.

Core Preparation: Before You Connect Anything

Before dealing with the electrical circuit, proper physical and chemical preparation is essential for a safe and effective experiment.

Handling Fragile Components

The electrolytic cell is typically made of glass, which is fragile. Always handle the components with care to prevent breakage, holding them gently and securely.

Preparing the Electrolyte

The quality of your electrolyte directly impacts the reaction. Use high-purity chemical reagents and deionized or distilled water to avoid introducing impurities that could cause unwanted side reactions.

Filling the Cell

Pour the prepared electrolyte into the cell carefully. Ensure the final volume does not exceed the maximum capacity line to prevent spills or overflow during operation.

The Electrical Connection: A Step-by-Step Guide

With the cell prepared, you can now focus on the electrical circuit. Precision here is non-negotiable.

Identify Your Electrodes

An electrolytic cell has two electrodes: the anode (where oxidation occurs) and the cathode (where reduction occurs).

Ensure Correct Polarity

The entire process relies on forcing a reaction with external power.

Connect the positive (+) terminal of your DC power supply to the anode.

Connect the negative (-) terminal of your DC power supply to the cathode. Double-check these connections before proceeding.

Set Your Power Supply Parameters

Before turning on the power, adjust the controls. The electrochemical reaction can be precisely managed by setting the correct voltage and current.

Common Pitfalls to Avoid

Mistakes in the setup can lead to failed experiments, damaged equipment, or safety hazards.

The Risk of Reverse Polarity

Connecting the terminals incorrectly will reverse the intended electrochemical reaction. This can damage the electrodes or produce unintended chemical products.

The Danger of Exceeding Electrical Limits

Never exceed the rated current and voltage specified for your particular electrolytic cell and power supply. Doing so can cause overheating, damage the equipment, and create a significant safety risk.

The Impact of Impurities

Failing to use pure reagents for your electrolyte can contaminate the reaction. This leads to inaccurate results and can interfere with the desired chemical process.

Making the Right Choice for Your Goal

Your specific objective will determine which aspect of the setup requires the most attention.

• If your primary focus is safety and equipment longevity: Never exceed the specified voltage and current ratings for your power supply and cell.
• If your primary focus is experimental accuracy: Ensure you use high-purity reagents for the electrolyte and that the anode and cathode are connected to the correct terminals.
• If your primary focus is controlling the reaction rate: Pay close attention to the adjustable voltage and current settings on your power supply, as these directly govern the process.

A methodical and careful approach to setup is the foundation of any successful electrolysis experiment.

Summary Table:

Step	Key Action	Critical Detail
1. Preparation	Handle cell & prepare electrolyte	Use high-purity reagents; handle glassware with care.
2. Connection	Link power supply to electrodes	Positive (+) to anode; Negative (-) to cathode.
3. Configuration	Set voltage & current	Adhere to specified limits to control reaction and ensure safety.
4. Operation	Initiate and monitor the process	Watch for signs of overheating or incorrect reactions.

Achieve precise and reliable electrolysis results with confidence.

Setting up your electrolytic cell correctly is fundamental to experimental success and safety. KINTEK specializes in providing high-quality lab equipment and consumables, including reliable power supplies and pure chemical reagents, to support your laboratory's specific electrolysis needs.

Contact our experts today to ensure your setup is optimized for accuracy, safety, and performance. Let us help you select the right equipment for your application.

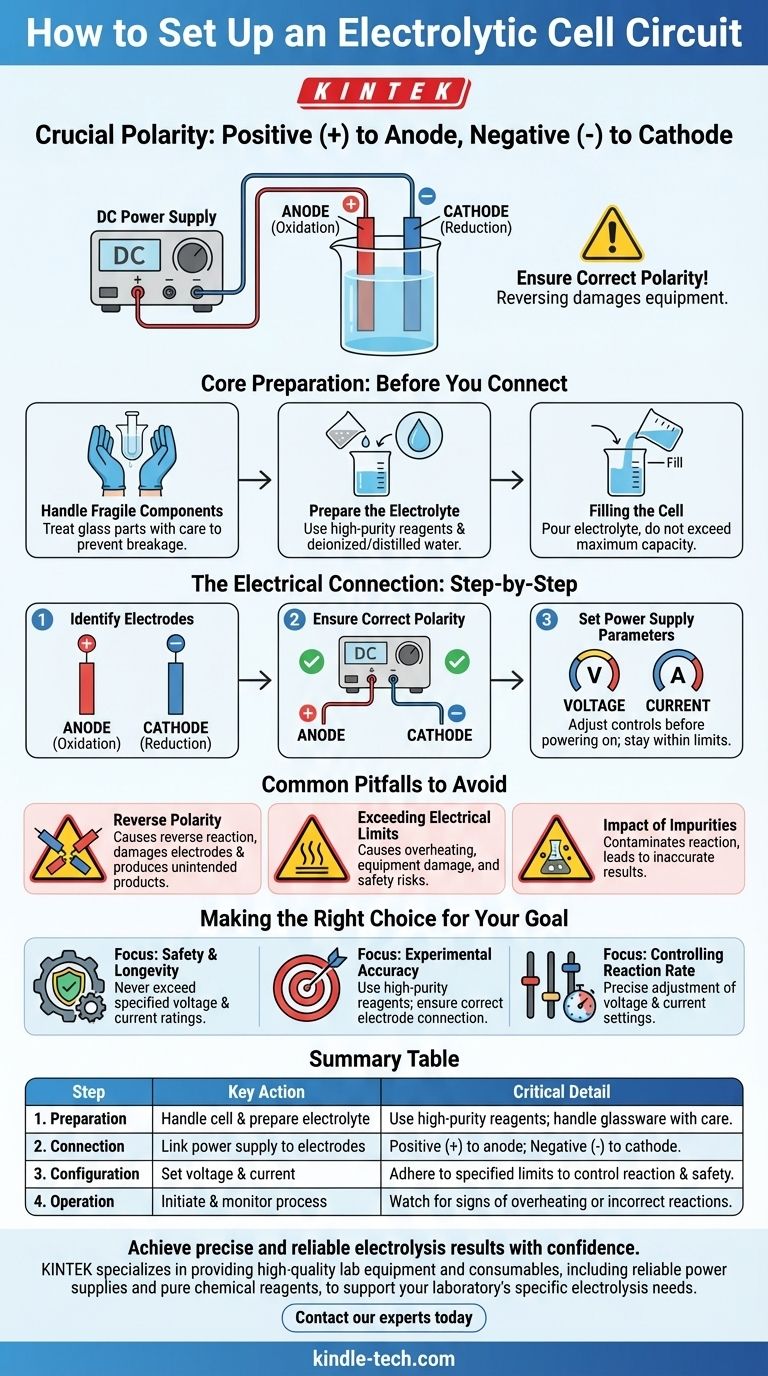

Visual Guide
