Electrochemical Consumables

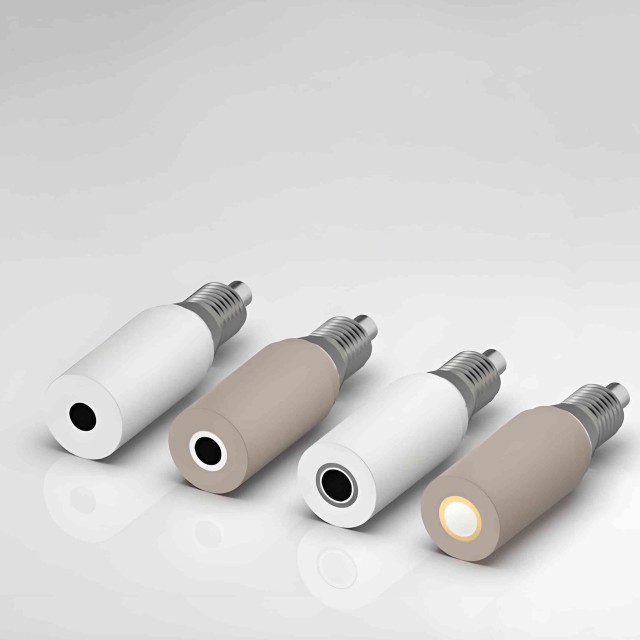

Rotating Disk Electrode / Rotating Ring Disk Electrode (RRDE)
Item Number : ELER
Price varies based on specs and customizations
$399.00 / set
- Specifications
- 5mm gold/platinum/glassy carbon
- Applicable temperature range
- 10 ~ 25℃
- Purity
- 99.99%
- Guide material
- glassy carbon + platinum ring
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Rotating Disk Electrode / Rotating Ring Disk Electrode, Corrosion resistance, complete specifications, can be customized.
Matters needing attention1
- Do not use ultrasound, if necessary, do not exceed 10 seconds.
- Do not bake at high temperature or hair dryer. (For example, if you want to dry something faster, you will use a hair dryer or infrared lamp to bake it).
- The use of voltage can not exceed plus or minus 2V
Application
The rotating disk ring electrode (RRDE) collects the current potential data of the disk ring. In addition to understanding the electrochemical characteristics of the characterized substances on the disk electrode, the direct product can be collected through the ring for further research.
It can be widely used in hydrogen fuel cell catalyst research and evaluation; air battery research; electrochemical kinetics research; oxygen reduction reaction (ORR), oxygen evolution reaction (OER) research. External thread design, better contact, stable signal transmission Accept customization can match customized American PINE, Princeton, Japanese ALS, Swiss Metrohm brand electrodes
Technical specifications
Rotating disk electrode
| Specifications | 5mm gold/platinum/glassy carbon |
| Applicable temperature range | 10 ~ 25℃ |
| Purity | 99.99% |
| Guide material | glassy carbon + platinum ring |
Rotating ring electrode
| Disk electrode material | glassy carbon/gold/platinum/graphite//zinc/nickel copper/iron, etc. |
| Jacket material | polytetrafluoroethylene (PTFE) / polysulfone (PEEK) |
| Collection rate | 37% |
| Disk area | 0.2475 cm² |
| Ring area | 0.1866 cm² |
| Platinum ring outer diameter | 7.92 mm |
| Platinum ring inner diameter | 6.25 mm |
Detail & Parts
Designed for You
KinTek provide deep custom made service and equipment to worldwide customers, our specialized teamwork and rich experienced engineers are capable to undertake the custom tailoring hardware and software equipment requirements, and help our customer to build up the exclusive and personalized equipment and solution!
Would you please drop your ideas to us, our engineers are ready for you now!
FAQ
What is rotating disk electrode used for?
What is the rotating electrode method?
What is the rotating ring-disk electrode method?
What are the advantages of rotating disc electrode?
