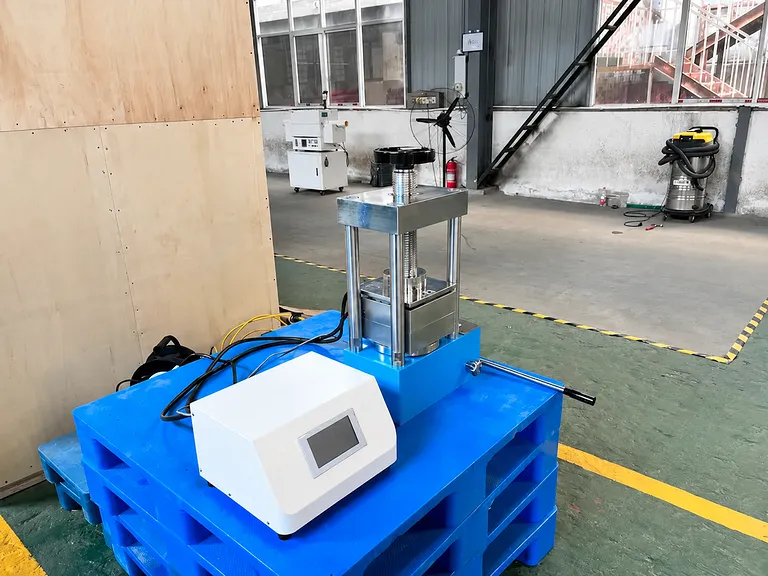

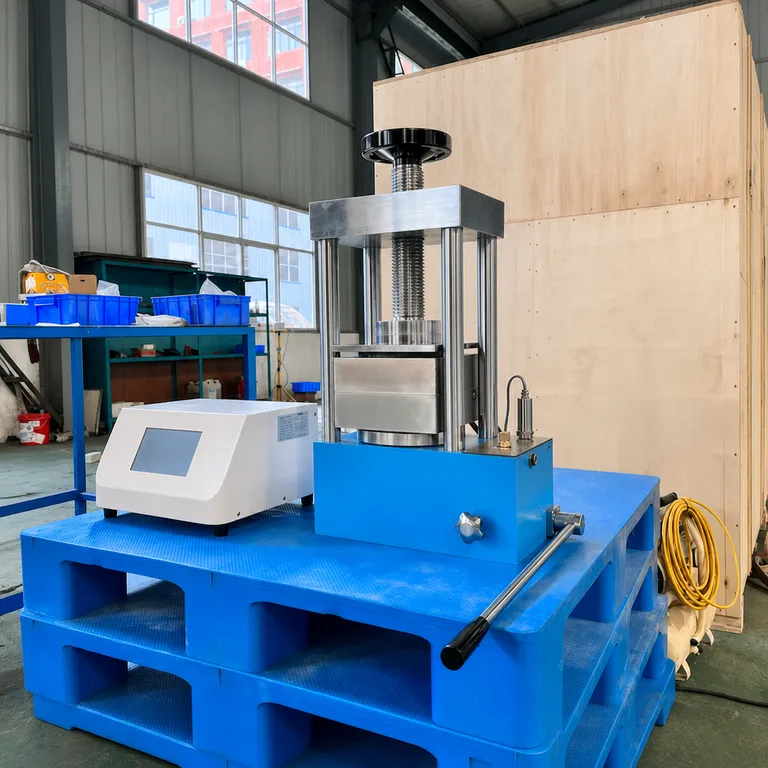

24T 30T 60T Heated Hydraulic Press Machine with Heated Plates for Laboratory Hot Press

Applications

Hydraulic Lab Press is widely used in material researching labs,pharmacy,catalytic reaction,ceramics, electronic industries, it is one high efficient equipment for the sample preparing, due to its small footprint, it easy to carry and move, can work inside the vacuum glove box for processing under vacuum environment. Hydraulic Heat Lab Press can also process hot press function with heating plates, which can serve the particular material processing.

The Hydraulic Heat Lab Press can heat the sample during the pressing process to meet some laboratory sample preparation requirements.

Feature

1. Fast heating, heating plate can be single side or double side
2. Water circulating fast cooling to protect the press
3. Max. Heating temperature is up to 350 ℃
4. Small footprint, light weight, easy to carry and move, nice fitting vacuum glove box

Detail & Parts

Operation interface

• Standard interface: You can set the upper and lower plate heating temperature and constant temperature time separately in this interface.
• Zero button: Calibrate the pressure and return the pressure to zero.
• Upper plate button: Heat the upper heating plate.
• Lower plate button: Heat the lower heating plate.
• Timer switch: You can turn the timer function on and off.

• Start button: You can heat up according to the multi-stage heating program.
• Stop button: During the heating process, you can stop the heating process.
• Setting button: Click the setting button to enter the setting menu.

• List/Graph: You can switch between list and graph display.

Advantages

1. The upper plate adopts electroplated countersunk head hexagonal screws, beautiful and space-saving
2. Chrome-plated cylinder, smooth surface, no rust, good sealing rubber ring, no oil leakage
3. One-piece main board structure, oil pool, main board, oil cylinder in a body, no seal connection
4. Extended pulling spring, good rebound effect, not easy to deformation, can achieve the cylinder 30mm return without deformation
5. All aluminum alloy hand wheel, beautiful, practical, not easy to break
6. Small size, light weight, no oil leakage, can be used in the glove box
7. Mold using Japanese high-speed steel, good material, high hardness, no deformation, long service life
8. Digital display pressure gauge, more accurate pressure control, pressure display accuracy of 0.01MPa
9. Oil pool outside the host, easy to replace the oil, and the oil circuit increased the hydraulic oil filtration device
10. Special plunger, using special custom sealing structure, excellent sealing effect
11. Pressurizing device, placed in the lowermost corner of the mainframe, the angle is reasonable, pressurizing force does not tilt back

Technical specifications

• Convenience: The electric heating tablet press has the advantages of small size, fast heating, rapid cooling, and easy use. It is widely used in the plastic and rubber industry.
• Efficiency: The use of water cooling cycle cooling can accelerate the cooling rate of the sample after molding, reduce the sample preparation time, and improve efficiency.
• Accuracy: PLC program temperature control is adopted to effectively prevent the temperature from overshooting when the heating mold heats up. The temperature display of 0.1°C is more accurate.

Operation steps

​How to replace accessories and precautions

Please click the link

Step 1. Place the mold in the tablet press.

Step 2. Enter the required heating temperature and time.

Step 3. Click the heating button to start heating.

Step 4: Press the heating button on the upper and lower boards to start heating them up.

Step 5. Pressurize the sample.

Step 6. Take out the cooled sample.

Full range of lab press types

Click to view our full range of lab press products.

Any question? Our experts have helped many laboratories choose their lab press, contact us now!

Full range of types of laboratory press molds

We have a full range of molds for you to choose from, and the molds fit the body perfectly.

If you need molds with special shapes, we can also customize them for you.

Click to see all press molds.

Warnings

Operator safety is the top important issue! Please operate the equipment with cautions. Working with inflammable& explosive or toxic gases is very dangerous, operators must take all necessary precautions before starting the equipment. Working with positive pressure inside the reactors or chambers is dangerous, operator must fellow the safety procedures strictly. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Designed for You

KinTek provide deep custom made service and equipment to worldwide customers, our specialized teamwork and rich experienced engineers are capable to undertake the custom tailoring hardware and software equipment requirements, and help our customer to build up the exclusive and personalized equipment and solution!

Would you please drop your ideas to us, our engineers are ready for you now!
