Performance Metrics
Ultimate Vacuum Pressure and Leakage Rate
Ultimate vacuum pressure and vacuum leakage rate are critical factors that directly influence the quality and clarity of the final product. The Carbon Equation MPCVD device excels in these areas, achieving an ultimate vacuum pressure of 0.5 Pa and a remarkably low vacuum leakage rate of 5e-10 Pa m³/s. These specifications are not merely numbers; they are benchmarks that ensure the integrity and precision of the diamond growth process.
The importance of maintaining a low leakage rate cannot be overstated. During the process, the furnace is initially pumped down to an ultra-high vacuum, typically reaching 1 x 10-4 torr or better. Once this level is achieved, the pumping system is isolated from the furnace chamber to measure the vacuum decay over time. The leak rate is then calculated by recording the vacuum level after 30 minutes and again after 60 minutes. This method allows for precise measurement and comparison against industry standards, ensuring that the device meets the stringent requirements for high-quality diamond production.
A low vacuum leakage rate is essential for preventing contaminants such as nitrogen from entering the chamber, which could otherwise compromise the growth rate and quality of the diamond. By maintaining an ultra-low leakage rate, the Carbon Equation MPCVD device ensures that the diamond growth process remains pure and efficient, resulting in products with exceptional clarity and uniformity.
Stability of Ion Morphology
Stable ion morphology is pivotal for the sustained and reliable operation of an MPCVD device, directly influencing the uniformity of crystal growth. The shape of the ion ball plays a critical role in this process; a flat ion ball shape is considered optimal for achieving even growth patterns. This evenness is essential for minimizing thickness deviations across the diamond surface, thereby enhancing the overall quality and consistency of the final product.
Moreover, maintaining a stable ion morphology not only aids in the uniformity of crystal growth but also contributes to the longevity and efficiency of the diamond production process. By ensuring that the ion ball remains flat and stable, manufacturers can reduce the likelihood of defects and inconsistencies, leading to higher-quality diamonds with superior clarity and structural integrity.
In summary, the stability of ion morphology is a key factor in the MPCVD process, impacting both the short-term efficiency and the long-term reliability of diamond growth. A flat ion ball shape is ideal for achieving these goals, ensuring that the diamond growth process remains uniform and free from significant deviations.
Impact on Diamond Growth

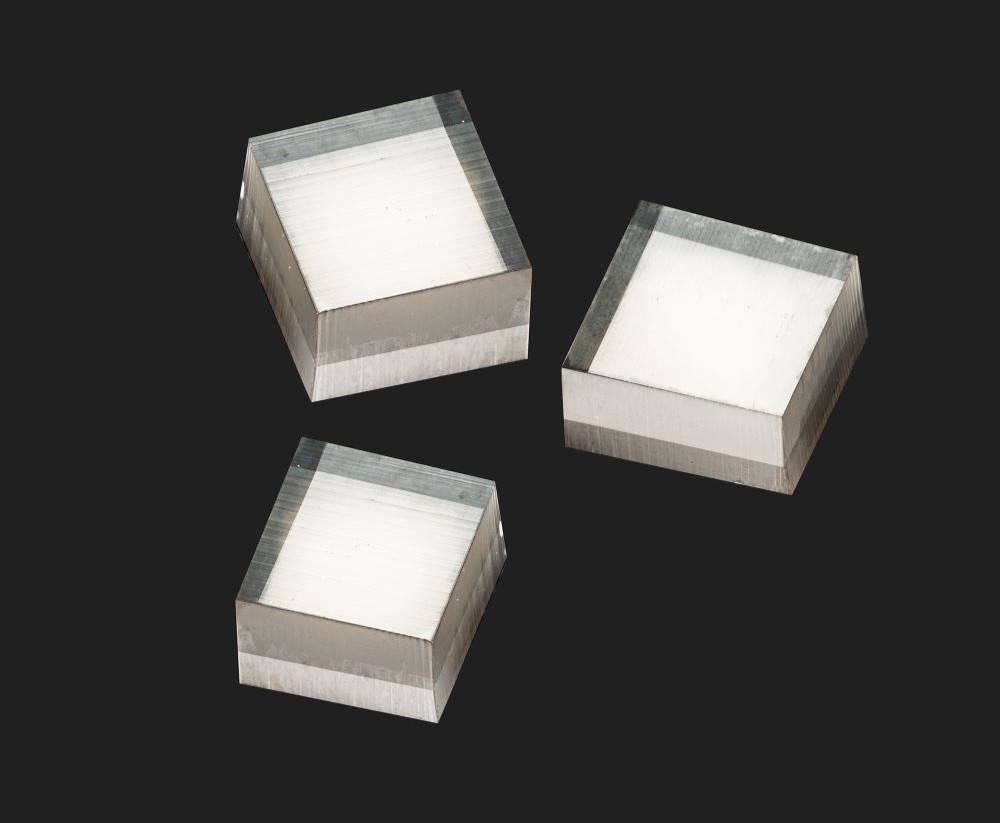

Quality and Clarity
High vacuum leakage rates can significantly impact the quality and clarity of the diamond growth process. When vacuum conditions are not maintained at optimal levels, nitrogen can intrude into the system. This intrusion can lead to a variety of issues, including a reduction in the overall growth rate and a degradation in the quality of the diamond produced. The result is often the formation of brown diamonds, which are characterized by their lack of clarity and visual appeal.
To mitigate these effects, it is essential to ensure that the MPCVD device maintains a low vacuum leakage rate. For instance, the Carbon Equation MPCVD device achieves an ultimate vacuum pressure of 0.5pa and a vacuum leakage rate of 5e-10pam³/s, which helps in preventing nitrogen intrusion and maintaining the desired quality and clarity of the diamond.
Uniformity and Efficiency
Ideal ion morphology plays a pivotal role in the uniformity and efficiency of diamond production. By maintaining a stable and consistent ion structure, the MPCVD process can achieve highly uniform growth patterns, minimizing deviations in crystal thickness and structure. This uniformity is not merely a cosmetic advantage; it directly impacts the overall quality and yield of the diamond production process.
The significance of uniform growth extends beyond mere consistency. It ensures that each diamond crystal develops under optimal conditions, reducing the likelihood of defects and impurities. This results in higher quality diamonds with superior optical and mechanical properties. Moreover, the efficiency of the production process is significantly enhanced, as uniform growth conditions reduce the need for post-processing corrections and rework.
In practical terms, a flat ion ball shape is considered ideal for achieving these benefits. This morphology allows for even distribution of plasma and energy, facilitating a more controlled and predictable growth environment. The benefits are manifold: reduced energy consumption, lower operational costs, and a higher rate of successful diamond production runs.
To illustrate, consider the performance metrics of the Carbon Equation MPCVD device, which achieves an ultimate vacuum pressure of 0.5pa and a vacuum leakage rate of 5e-10pam³/s. These specifications are crucial for maintaining the stability of ion morphology, thereby ensuring uniform growth and minimal deviation. The device's ability to maintain such precise conditions underscores the importance of advanced technology in achieving high-quality diamond production.
In summary, the uniformity and efficiency of diamond production are intricately linked to the stability and morphology of ions within the MPCVD process. By optimizing these factors, manufacturers can achieve higher quality diamonds with greater consistency, ultimately enhancing both the efficiency and the economic viability of their operations.
