Proper maintenance of a metal disk electrode involves a systematic cycle of inspection, cleaning, polishing, and performance verification. Immediately after use, the electrode must be cleaned with a solvent like deionized water or ethanol, dried, and stored in a protected case. Before the next use, it should be visually inspected and, if necessary, repolished with alumina powder to restore a clean, active surface, followed by an electrochemical test to confirm its performance.
An electrode's performance is dictated entirely by its surface. Effective maintenance is not just about cleaning; it is a disciplined process of ensuring the electrode surface is in a known, reproducible, and electrochemically active state before every single experiment to guarantee the integrity of your data.
The Foundation: Why the Electrode Surface is Critical
The entire purpose of electrode maintenance is to control the condition of the electrode surface. This surface is the interface where all electrochemical reactions occur, and its state directly impacts the quality and reliability of your measurements.
The Link Between Surface and Conductivity
A core characteristic of a metal disk electrode is its high electrical conductivity, which ensures efficient signal transfer. However, this performance is easily compromised.
If the surface becomes contaminated with oxides, adsorbed impurities, or oils, its electrical resistance increases. This leads to distorted signals, shifted potentials, and unreliable data.
The Goal: A Clean and Reproducible Surface
Every maintenance procedure, from simple rinsing to aggressive polishing, is designed to achieve one goal: to create a clean and electrochemically active surface that is identical for every experiment. This reproducibility is the bedrock of trustworthy science.
Routine Maintenance: Before and After Each Experiment
Consistent habits are the most effective form of maintenance. Integrating these simple steps into your workflow will prevent most common electrode problems.
Immediate Post-Experiment Cleaning
As soon as an experiment is complete, remove the electrode from the electrochemical cell.
Thoroughly rinse it with appropriate solvents, such as deionized water or ethanol, to remove any residual electrolyte and reaction byproducts.
Proper Storage and Handling
After cleaning, gently dry the electrode and store it in a dry, protected environment, ideally its original case. This protects it from humidity, high temperatures, strong light, and accidental physical damage.
Never leave an electrode exposed to air or soaking in water for prolonged periods, as this can lead to oxidation or contamination.
Pre-Experiment Inspection
Before each use, visually inspect the electrode's surface. Look for any signs of physical damage, corrosion, discoloration, or lingering contamination from previous experiments. Also, check that its electrical resistance is within the expected range.
Restoring and Verifying Electrode Performance
When routine cleaning is not enough, or if performance has degraded, more intensive restoration and verification are required.
When and How to Polish
Polishing is necessary when the electrode surface is visibly scratched, worn, or contaminated in a way that simple cleaning cannot fix.

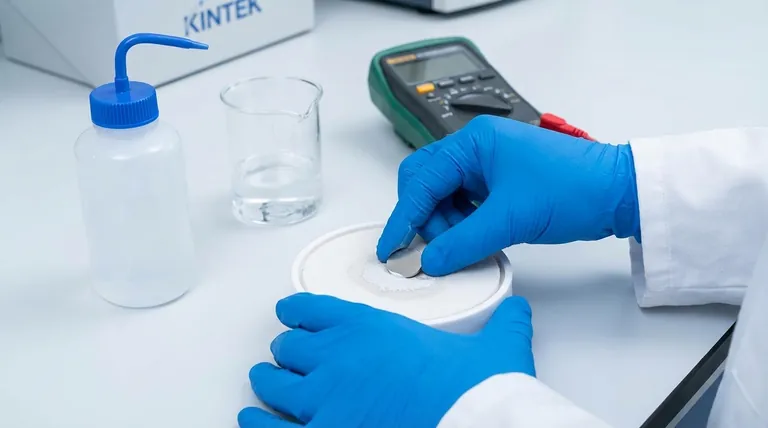

Use a small amount of alumina polishing powder on a designated polishing pad to gently polish the electrode surface. Afterward, rinse it thoroughly to remove all polishing residue.
Critically, never use the same polishing pad for different grades or types of polishing powder, as this will cause cross-contamination and damage the electrode surface. Be careful not to over-polish.
Verifying Performance: The Ferricyanide Test
The most common way to verify electrode performance is with a standard redox couple, typically potassium ferricyanide.
In a cyclic voltammetry experiment, a well-performing electrode should exhibit a peak potential separation (ΔEp) of less than or equal to 80 mV at a scan rate of 100 mV/s. A larger separation indicates slow electron transfer kinetics, likely due to a contaminated surface.
Verifying Performance: Double-Layer Capacitance
Another verification method involves measuring the double-layer capacitance in a non-reactive electrolyte like 0.1M KCl.
A clean, smooth electrode surface will have a stable and low capacitance. A fluctuation of less than 15% is considered acceptable. High or unstable capacitance suggests a rough or contaminated surface.
Understanding the Trade-offs and Critical Precautions
Different materials and experimental conditions demand different precautions. Ignoring these rules can lead to irreversible electrode damage.
Material-Specific Protection
There is no single storage solution for all electrodes. For precious metals like gold and platinum, immersion in 0.1M HClO₄ can prevent the formation of an oxide layer.
For more active metals like nickel, applying a thin (5-10 nm) vacuum-coated carbon film can serve as an effective protective layer.
Chemical Compatibility is Non-Negotiable
You must choose an electrolyte that is compatible with your electrode material to prevent corrosion.
For example, avoid chloride-containing solutions with gold electrodes, do not use platinum electrodes in experiments involving lithium, and avoid strong acids with iron electrodes.
Physical and Thermal Limits
The electrode surface is fragile. Protect it from collisions or being dropped. If your experiment involves high temperatures, ensure you do not exceed the electrode's specified heat resistance.
Crucially, never apply current to the electrode without it being immersed in an electrolyte (a practice known as dry burning), as this will instantly destroy it.
When to Replace, Not Repair
If an electrode suffers severe damage, such as a fracture, deep gouges, or complete loss of its conductive coating, it cannot be reliably repaired.
In these cases, the electrode must be replaced with a new one of the same model and specifications to ensure the accuracy and stability of your future measurements.
Making the Right Choice for Your Goal
Your maintenance strategy should align directly with your experimental needs. Use this checklist to guide your actions.
- If your primary focus is routine analysis: A consistent post-experiment cleaning and pre-experiment visual inspection is your most critical daily habit.
- If your primary focus is high-precision measurement: You must incorporate a polishing and electrochemical verification step (e.g., ferricyanide test) into your standard pre-experiment protocol.
- If your primary focus is long-term asset preservation: You must implement material-specific storage protocols and strictly enforce rules around chemical compatibility and handling.
A well-maintained electrode is the foundation of trustworthy electrochemical data.
Summary Table:
| Maintenance Goal | Key Action | Verification Metric |
|---|---|---|
| Routine Analysis | Post-use cleaning & pre-use visual inspection | Check for physical damage, discoloration |
| High-Precision Measurement | Polishing with alumina powder & electrochemical test | ΔEp ≤ 80 mV (Ferricyanide test) |
| Long-Term Preservation | Material-specific storage & handling precautions | Capacitance fluctuation < 15% |
